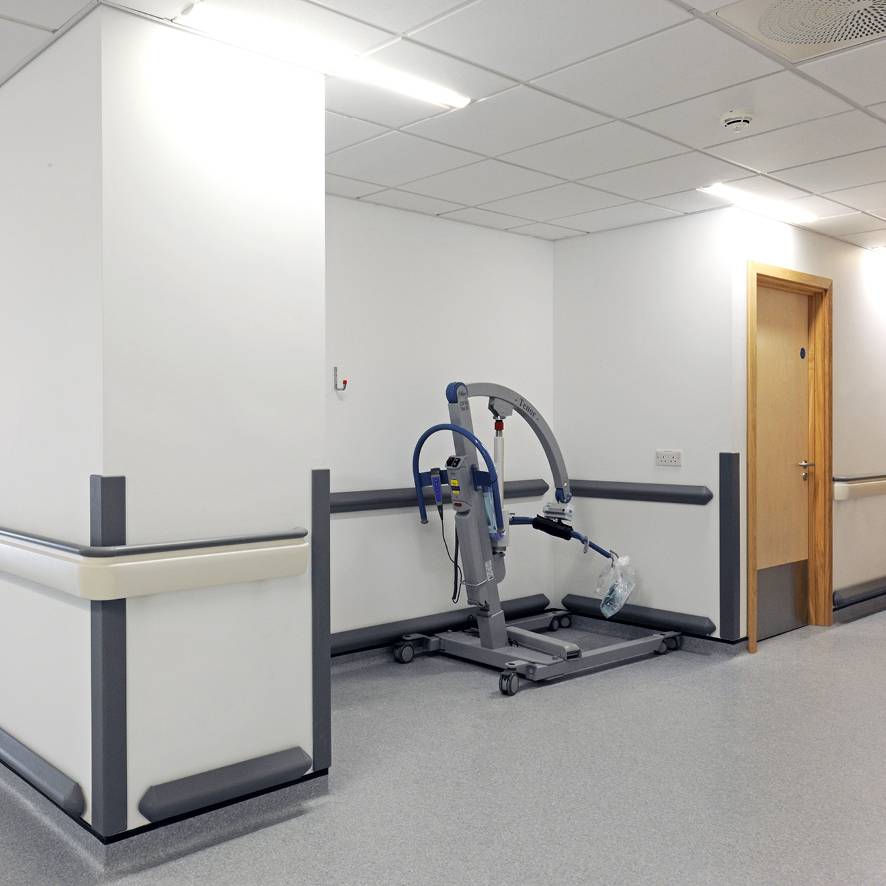

CS Acrovyn® BG-10 Bumper Guards
Verified by manufacturer today
102 mm-high, bullnose-style bumper guard designed to keep wheeled traffic away from the wall.
Application
Medium-duty applications, designed to keep wheeled traffic away from the wall.
Can be used at low level in combination with handrails or other crash rails.
Description
102 mm-high, bullnose-style bumper guard designed to keep wheeled traffic away from the wall.
Features and benefits:
- Acrovyn cover over continuous aluminium retainer
- Designed for medium-duty applications.
- Can be used on its own, or in combination with handrails or other wall protection crash rails.
- Large bullnose profile flexes for maximum bumper action protection.
- Mounted on bumper cushions for additional shock absorption.
- Available in 27 solid colours.
General information
Color | Beige Black Blue Brown Cream |
Finish | Textured |
Material | Acrovyn® Aluminium |
Shape | Rectangle |
Length | 4000 mm Guidance for specification option: Stock size. |
Width | 60 mm Guidance for specification option: Overall stand-off from the wall, including cushion depth. |
Height | 102 mm |
Uniclass | |
CAWS | P20/170 Proprietary P20/30 Proprietary N10/184 Wall rails |
Product range |
Specification data - Wall protection panels
Classification data | |
Material | Acrovyn®/ aluminium. Guidance for specification option: Acrovyn cover over continuous aluminium retainer. |
Finish | Textured (Shadowgrain). |
Colour or pattern | 9003 Snow White LRV: 86. 100 Eggshell LRV: 73. 801 Grey Cloud LRV: 64. 187 Tan Bark LRV: 40. 26 Taupe LRV: 24. 7044 Felt LRV: 50. 260 Misty Grey LRV: 80. 136 Pearl Grey LRV: 39. 24 Dove Grey LRV: 49. 162 Charcoal LRV: 22. 7043 Anthracite LRV: 14. 108 Black LRV: 8. 1015 Ice Blue LRV: 63. 112 Pacific Blue LRV: 24. 325 Cape Blue LRV: 32. 129 Yale Blue LRV: 8. 1510 Almond Green LRV: 60. 3040 Prairie Green LRV: 29. 6020 Sequoia Green LRV: 13. 4030 Baltic Blue LRV: 20. 101 French Cream LRV: 70. 16 Golden Yellow LRV: 66. 17 Tangerine LRV: 47. 845 Spectrum Red LRV: 15. 510 Powder Pink LRV: 79. 2050 Pink Grapefruit LRV: 28. 5120 Imperial Purple LRV: 16. |
Profile | Bullnose. |
Size | 102 x 60 x 4000 mm. Guidance for specification option: Height x overall projection* (depth) x stock length. Rail depth: 60 mm. *Product is always installed on bumper cushions. |
Fixing | Screws, fix at maximum 600 mm centres. Guidance for specification option: Fixing into studwork or pattresses recommended. |
Accessories | End caps. External corners. |
Sustainability data
Material | Acrovyn® Aluminium |
BIM objects
This BIM object has been authored to meet the requirements of the
Find out more about the
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Literature type
CS Acrovyn Wall & Door Protection Brochure (2025)

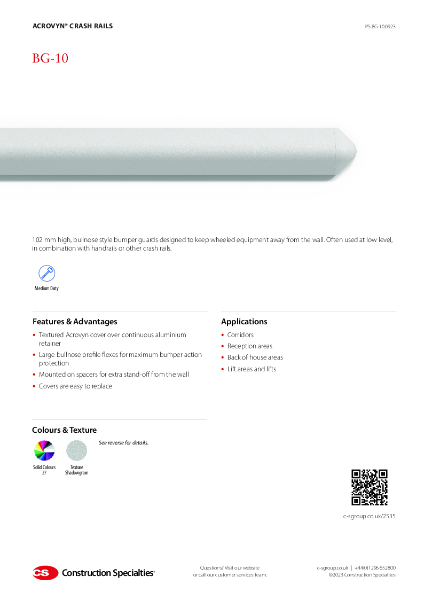

CS Acrovyn BG-10 Bumper Guard_Product Sheet (09.23)
