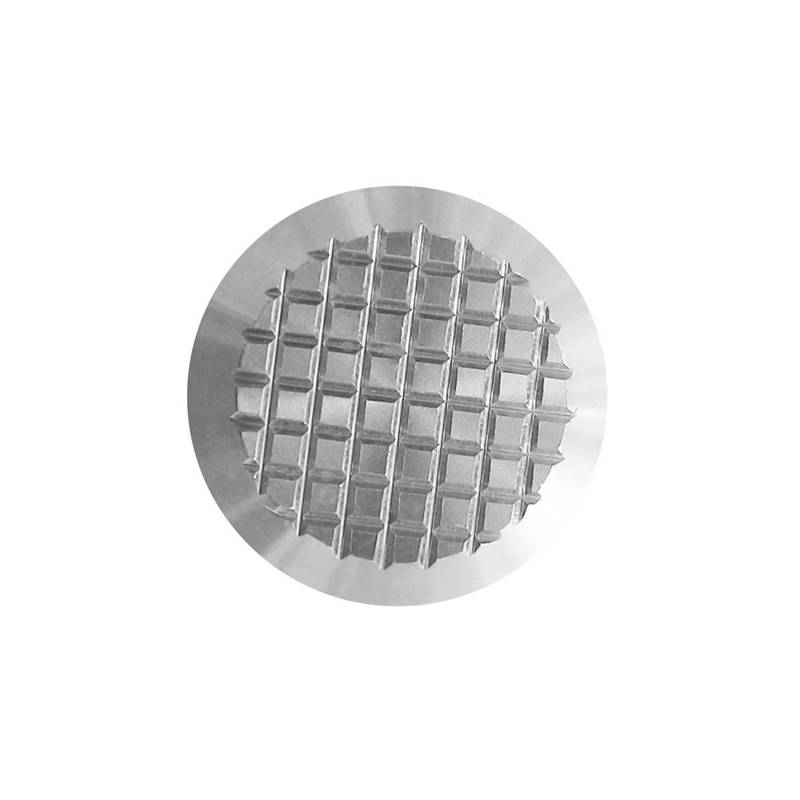

Cross Hatch Tactile Demarcation Stud

Verified by manufacturer 4 months ago

Stainless Steel 1.4404 (316L) Tactile Stud - SS 25 mm

Studmarc Variant:

Tactile Demarcation stud.

Jump to:
BOS
+44(0)1686 807 450 Website

Application

These studs are suitable for use as:

  • Stair-nosing alternative.
  • Area demarcation aids.
  • Tactile guidance for the blind and visually impaired.

Description

This cross-hatch pattern stainless steel tactile stud is manufactured from marine-grade 1.4404 (316L) stainless steel or brass, as standard, and is finished with a cross-hatch grooved surface. At 25 mm in diameter and 5 mm in height, this stud is in line with DETR guidelines, meaning they are suitable for use in guiding the visually impaired in public and private settings.


This tactile stud features a slight bevelled edge and a cross-hatch surface. The shape of the stud provides ample tactile feedback while enhancing grip levels for pedestrians in harsh conditions.


Alternate sizing is available with the bespoke product service.


Tactile strips with matching patterns are available.


Bespoke sizing guide:

  • Diameter: 15–100 mm.
  • Stud head height: 3–6 mm.
  • Fixing pin length: 12–80 mm.


Bespoke finishing options::

  • Bright polish.
  • Sandblasted.
  • Burnt.


Available material options:

  • Brass.
  • 1.4404 (316L)/ 1.4301 (304) Stainless steel.
  • Aluminium.
  • Bronze.


Features and benefits:

  • DETR compliant.
  • Easy drill and resin installation.
  • Attractive alternative to stair nosings.
  • Weatherproof 1.4404 (316L) stainless steel.

General information

Color

Silver

Yellow

Bronze

Finish

Natural

Polished

Sandblasted

Burnt

Satin

Show more

Material

Brass

Stainless steel

Aluminium

Bronze

Shape

Circle

Length

25 mm

Bespoke

Width

25 mm

Guidance for specification option:

Diameter

Bespoke

Height

5 mm

Bespoke

Warranty description

Two year

Uniclass

Pr_35_90_60_87 Tactile paving studsPrimary

CAWS

Q10/415 Demarcation units

Specification data - Tactile paving studs

Material

Stainless steel 1.4404 (316L).

Profile

Cross hatch.

Size

25 mm diameter.

Bespoke.

Guidance for specification option:

  • Diameter: 15–100 mm.
  • Fixing pin length: 12–80 mm.
  • Stud head height: 3–6 mm.

Consult manufacturer for details and insert requirements.

Fixing:

Machined pin.

Self adhesive.

Welded pin.

Guidance for specification option:

Stainless steel only.

Without pin.

Finish:

Bright polish.

Burnt.

Sandblasted.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Recyclability

Should the need to recycle the studs arise, all material options can be melted down and reused again

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Cross Hatch 25mm Tactile Stud - Datasheet

Cross Hatch 25mm Tactile Stud - Datasheet
