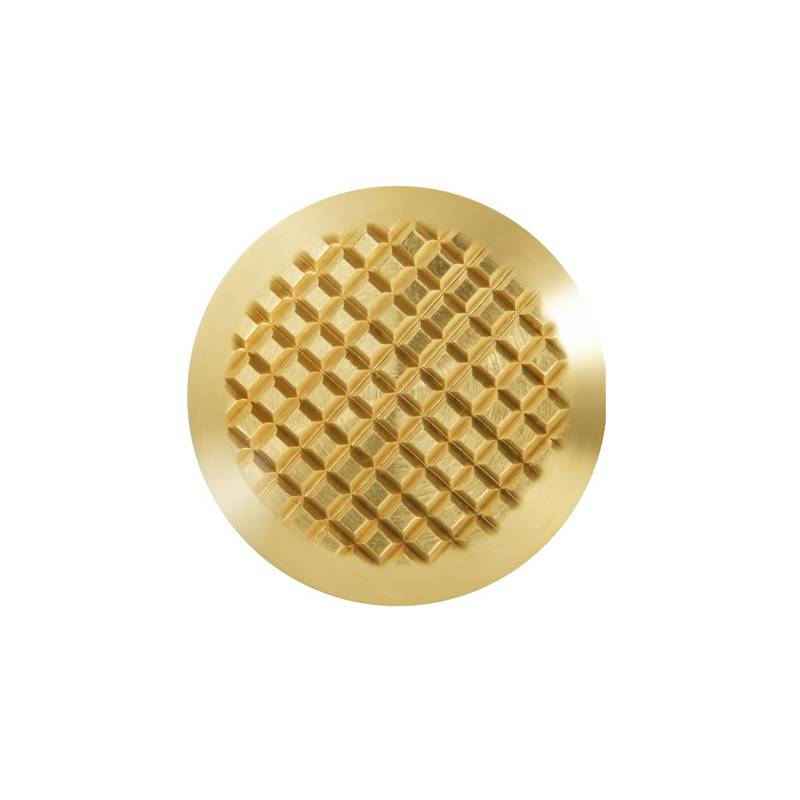

Cross Hatch Tactile Demarcation Stud

Name: Cross Hatch Tactile Demarcation Stud
Brand: Studmarc
SKU: sfjSKeeK6irxNpXmHJ48Wb

Verified by manufacturer 4 months ago

Brass Tactile Stud - BS 25 mm

Studmarc

Tactile Demarcation stud.

Jump to:

BOS

+44(0)1686 807 450 Website

Application

These studs are suitable for use as:

Stair-nosing alternative.
Area demarcation aids.
Tactile guidance for the blind and visually impaired.

Description

This cross-hatch pattern stainless steel tactile stud is manufactured from marine-grade 1.4404 (316L) stainless steel or brass, as standard, and is finished with a cross-hatch grooved surface. At 25 mm in diameter and 5 mm in height, this stud is in line with DETR guidelines, meaning they are suitable for use in guiding the visually impaired in public and private settings.

This tactile stud features a slight bevelled edge and a cross-hatch surface. The shape of the stud provides ample tactile feedback while enhancing grip levels for pedestrians in harsh conditions.

Alternate sizing is available with the bespoke product service.

Tactile strips with matching patterns are available.

Bespoke sizing guide:

Diameter: 15–100 mm.
Stud head height: 3–6 mm.
Fixing pin length: 12–80 mm.

Bespoke finishing options::

Bright polish.
Sandblasted.
Burnt.

Available material options:

Brass.
1.4404 (316L)/ 1.4301 (304) Stainless steel.
Aluminium.
Bronze.

Features and benefits:

DETR compliant.
Easy drill and resin installation.
Attractive alternative to stair nosings.
Weatherproof 1.4404 (316L) stainless steel.

General information

Color	Silver Yellow Bronze
Finish	Natural Polished Sandblasted Burnt Satin Anti-slip Anti-skid Grooved Show more
Material	Brass Stainless steel Aluminium Bronze
Shape	Circle
Length	25 mm Bespoke
Width	25 mm Guidance for specification option: Diameter Bespoke
Height	5 mm Bespoke
Warranty description	Two year

Uniclass	Pr_35_90_60_87 Tactile paving studsPrimary
CAWS	Q10/415 Demarcation units

Specification data - Tactile paving studs

Material	Brass.
Profile	Cross hatch.
Size	25 mm diameter. Bespoke. Guidance for specification option: Diameter: 15–100 mm. Fixing pin length: 12–80 mm. Stud head height: 3–6 mm. Consult manufacturer for details and insert requirements.

Fixing:	Machined pin. Self adhesive. Without pin.
Finish:	Bright polish. Burnt. Sandblasted.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	Europe
Recyclability	Should the need to recycle the studs arise, all material options can be melted down and reused again
