CP 645 Firestop Sleeve
Verified by manufacturer 7 months ago

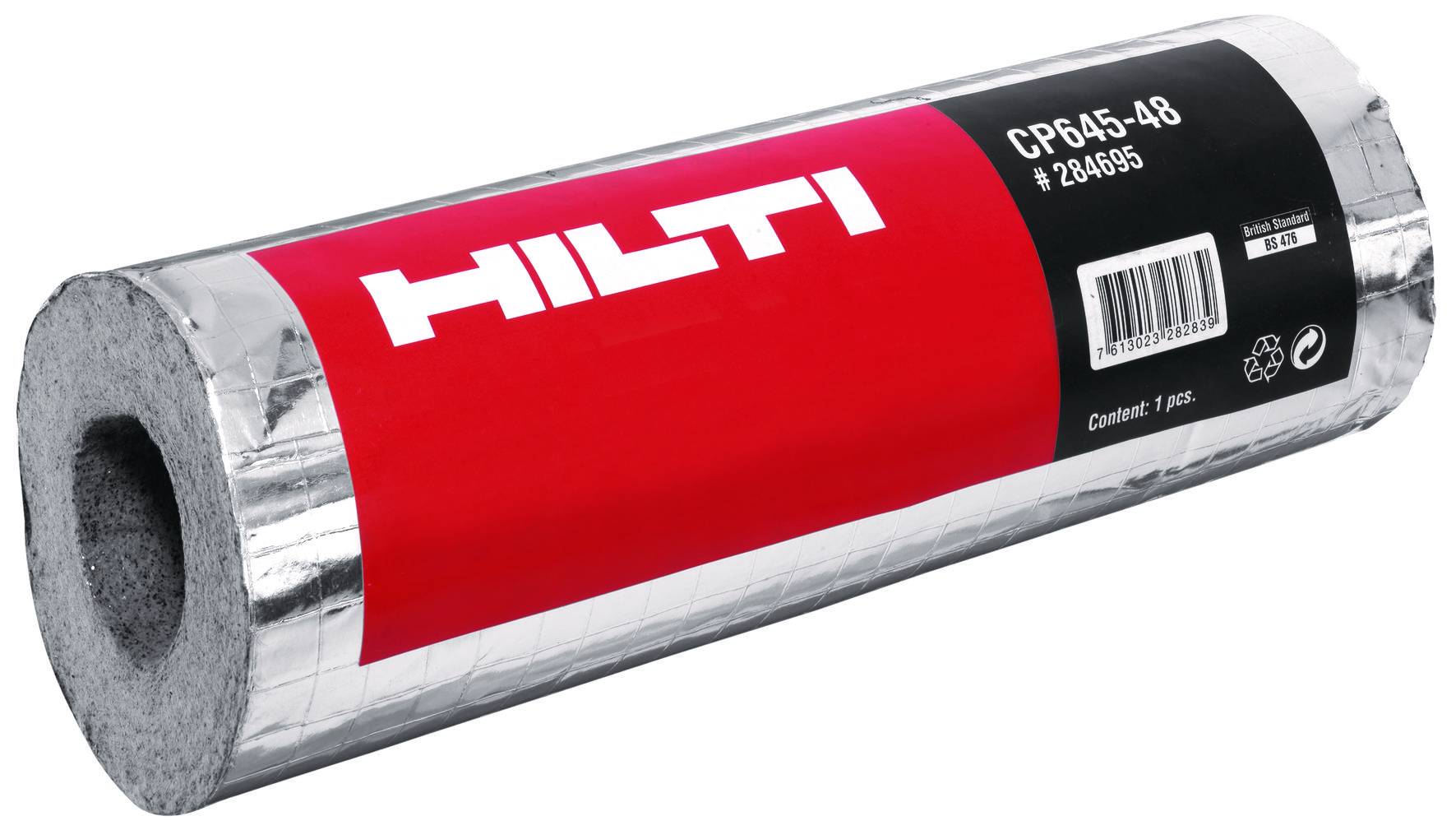

Firestop insulated sleeve.
Application
- Suitable for use in concrete, masonry and drywall substrates to:
- Seal insulated metal pipes and combustible pipes from 13.5–168.3 mm in diameter in penetrations through fire compartment walls and floors.
- Seal single cables up to 50 mm in diameter and bunched cables.
- Suitable for drywall and solid walls/ floors and firestop seals made with CFS-CT B Fire Board.
Description
Ready-to-use firestop sleeve made of mineral wool with intumescent additives.
Features and benefits:
- No preparatory work required – reducing installation time.
- Maintains pipe's thermal insulation.
- Can maintain the vapour seal of existing insulation.
- Can provide a firestop seal on angled pipes.
- Comes in numerous sizes from an internal diameter of 17–169 mm.
General information
Color | Grey White |
Shape | Circle |
Length | 300 mm |
Width | 27.5 mm |
Height | Manufacturer guidanceThickness. |
Uniclass | |
CAWS | P12/370 Pipe collar P12/43 Pipe collar P12/44 Pipe collar - insulated wrap |
Product range |
Specification data - Concealed intumescent pipe collars
Sizes | ∅15–19 x 300 x 27.5 mm.∅19–23 x 300 x 27.5 mm.∅25–29 x 300 x 27.5 mm.∅32–36 x 300 x 27.5 mm.∅40–44 x 300 x 27.5 mm.∅46–50 x 300 x 27.5 mm.∅52–56 x 300 x 27.5 mm.∅58–62 x 300 x 27.5 mm.∅65–69 x 300 x 27.5 mm.∅74–78 x 300 x 27.5 mm.∅78–82 x 300 x 27.5 mm.∅87–91 x 300 x 27.5 mm.∅100–104 x 300 x 27.5 mm.∅106–110 x 300 x 27.5 mm.∅112–116 x 300 x 27.5 mm.∅125–129 x 300 x 27.5 mm.∅157–161 x 300 x 27.5 mm.∅167–171 x 300 x 27.5 mm. |
Fire performance | Up to 2 hours. |
Application temperature | -5 to +50°C. |
Temperature resistance | -40 to +100°C. |
Acoustic performance | ≤63 dB. |
Moisture vapour permeability | <1 g/m²/day. |
SurfaceSpreadOfFlame | To BS 476-7, Category I. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | Revit 2017 | 1 |
Literature

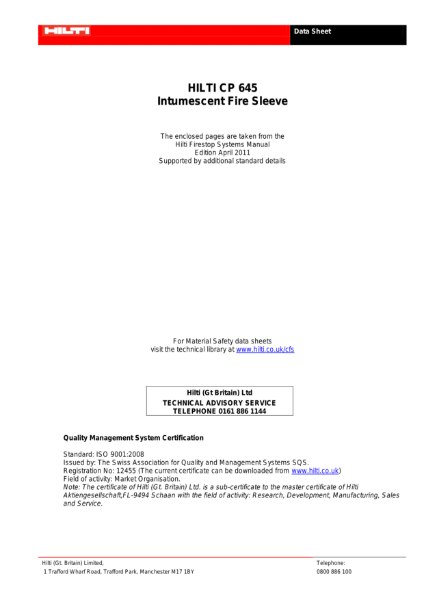

Firestop systems Binder, CP 645, English
