CFS-C EL
Verified by manufacturer 8 months ago
European Technical Approval (ETA)
Certificate type
UK Technical Assessment (UKTA)
Certificate type

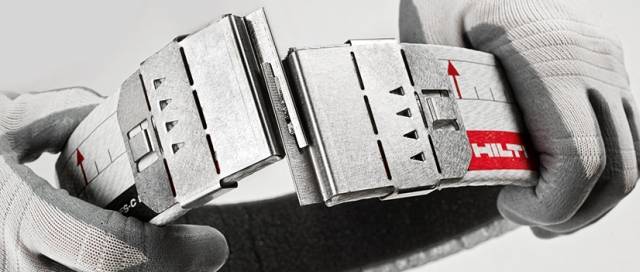

Firestop collar.
Application
- Suitable for use on shaft walls, coated board, drywall, aerated concrete, masonry and concrete.
- Approved for use with PVC, PP, PE and a wide array of standard acoustic pipes.
- Configurations tested include pipe elbows, inclined pipes and pipes with limited clearance to the wall.
Description
Firestop collar for non-standard pipe configurations.
Features and benefits:
- Saves space – zero distance to CFS-C EL firestop endless collar, Conlit and CFS-B firestop bandage.
- One product for most penetrant sizes.
- Installed outside of the base material – can be visually inspected easily.
- Well-suited to complex pipe configurations.
- Zero distance required to CFS-B firestop bandage, CFS-C EL firestop endless collar and Conlit.
General information
Color | Grey White |
Material | Intumescent |
Shape | Rectangle |
Length | 2580 mm |
Width | 52 mm |
Height | 5.6 mm |
Uniclass | |
CAWS | P12/370 Pipe collar P12/43 Pipe collar |
Specification data - Concealed intumescent pipe collars
Sizes | 2580 x 52 x 5.6 mm. |
Fire performance | Up to three hours. |
Application temperature | -5 to +50°C. |
Temperature resistance | -30 to +80°C. |
Fire classification (EN 13501-1) | Class E. |
Bacteria resistance (to EN846) | Class 0. |
VOC emissions | 11 g/L. |
Position | Surface mounted. |
Third party certifications
European Technical Approval (ETA)
ETA-14/0085 for CFSC EL Firestop Collar Endless for Penetrations
UK Technical Assessment (UKTA)
UKTA22 0035 CFS-C EL
