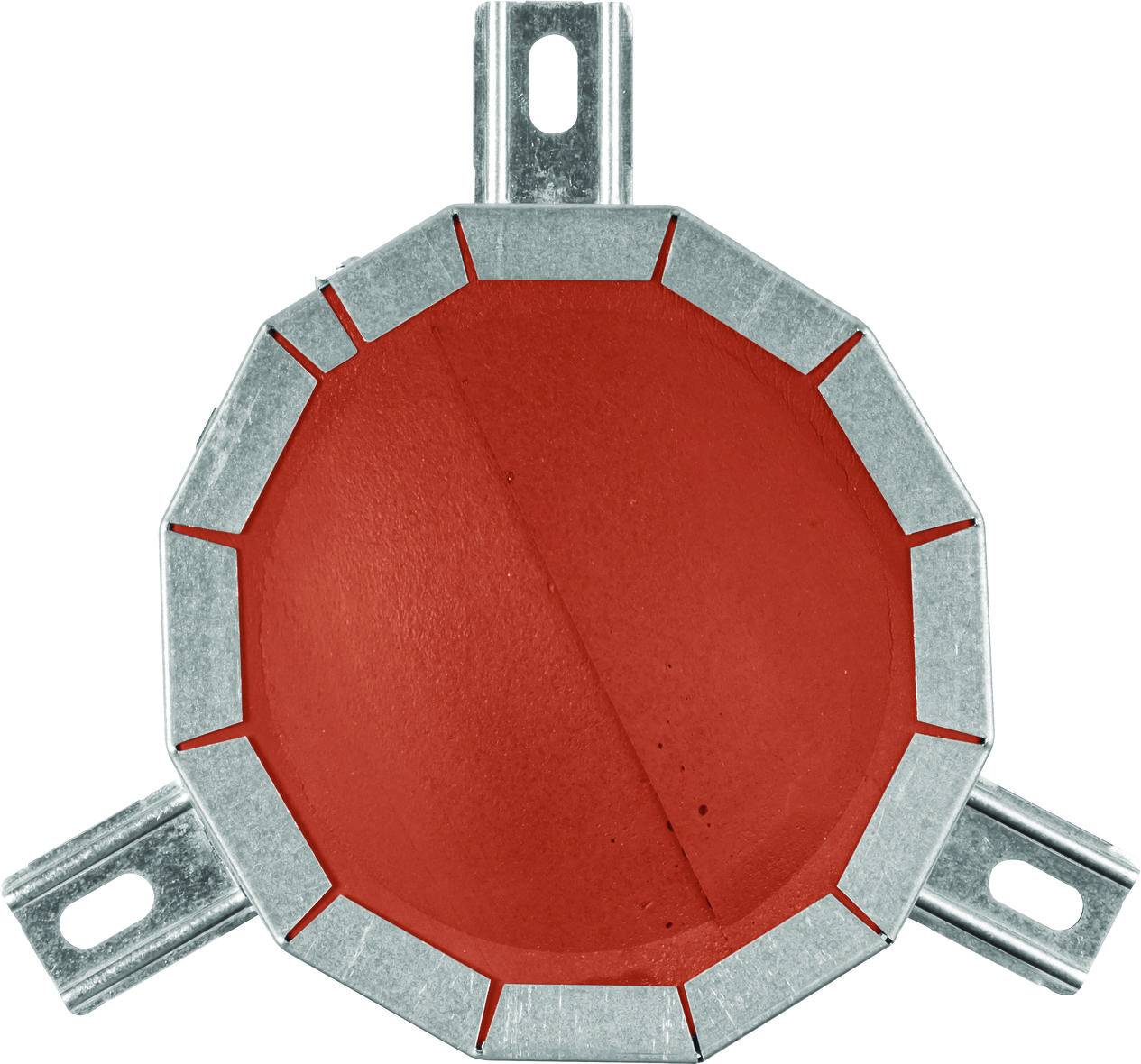

CFS-CC Firestop Cable Collar
Verified by manufacturer 26 days ago
European Technical Approval (ETA)
Certificate type
Firestop cable collar.
Application
- Suitable for use in new and existing cable installations with single, bundled and bending cables in floors and walls, as well as cables close to the wall/ floor.
- Can be used with certain coaxial cables, conduit and conduit bundles, split-type air conditioner applications and smoke guide pipes.
- Suitable for aerated concrete, concrete, masonry, drywall and CLT.
- Range of approved applications publicly present in 3rd party documents: ETA-13/0704.
Description
Pre-cured, pre-formed firestop cable collar.
Features and benefits:
- Re-penetrable to allow future increases in cable capacity.
- Suitable for openings of max. 4" or 108 mm in diameter (sleeved or un-sleeved).
- Simple and clean – sealant-free, no backfilling material required and low VOCs.
General information
Color | Red Grey |
Finish | Metallic |
Material | Intumescent |
Shape | Circle |
Length | 150 mm Manufacturer guidanceDiameter. |
Width | 150 mm Manufacturer guidanceDiameter. |
Uniclass | |
CAWS | P12/370 Pipe collars P12/43 Pipe collars |
Product range |
Specification data - Concealed intumescent pipe collars
Classification data | |
Sizes | 150 mm. Manufacturer guidanceDiameter. |
Fire performance | Up to two hours. |
Sound insulation rating | 56 dB. Guidance for specification option: Min Rw(C; Ctr ) = 56 (-2;-8) dB depending on penetrating services. |
Application temperature | 5–40°C. |
Temperature resistance | -15 to +60°C. |
VOC emissions | 5.4 g/L. |
Position | Surface mounted. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | Revit 2017 | 1 |
Product certifications
European Technical Approval (ETA)
ETA-13/0704 CFS-CC
