CFS-RCC

Verified by manufacturer 1 month ago

Hilti (Gt Britain) Ltd Third party certifications:
  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

Firestop rectangular cable collar.

Jump to:
+44 (0)800 886100 Website

Application

Suitable for:

  • New and existing penetrations in floors and walls, especially renovation projects.
  • For single cables, cable bundles, cable trays, conduits and pipes in concrete, masonry and drywall applications.
  • Can be used to seal old/ damaged fire compartment penetrations without removing the existing material.

Description

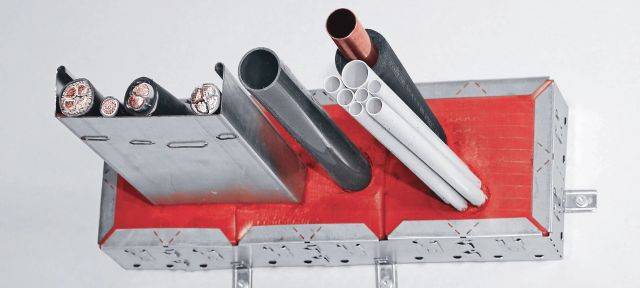

Flexible, rectangular firestop solution for the renovation of sealed cables, cable trays and mixed penetrations without removing the existing old firestop.


Features and benefits:

  • Broad approval range – cables, trays, conduits and pipes (metal up to 114 mm and plastic up to 50 mm).
  • Surface-mounted solution with 100% cable fill.
  • Optimised for irregular small and medium openings.
  • Ideal for irregular small and medium openings.
  • Re-penetrable to allow future increases in cable capacity.
  • Air permeability, airborne sound and thermal insulation tested.

General information

Color

Red

Grey

Manufacturer guidance

Grey and red.

Shape

Rectangle

Length

200 mm

Width

200 mm

Height

85 mm

Uniclass

Pr_65_52_61_15 Concealed intumescent pipe collarsPrimary

CAWS

P12/370 Pipe collar

P12/43 Pipe collar

Specification data - Concealed intumescent pipe collars

Sizes

200 x 200 x 85 mm.

Fire performance

Up to three hours.

Application temperature

5–40°C.

Temperature resistance

-15 to +60°C.

Fire classification (EN 13501-1)

Class E.

Bacteria resistance (to EN846)

Class 0.

Thermal insulation

0.089 W/mK.

Position

Fitted in hole or opening.

Third party certifications

European Technical Approval (ETA)

ETA-20/0990 CFS-RCC
