Commercial Aluminium Entrance Door - GFT 50 - Ground Floor Treatment System
Verified by manufacturer 5 months ago

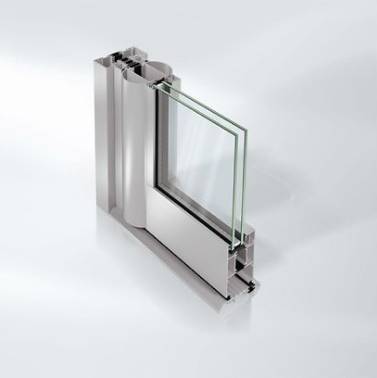

GFT 50 Single Leaf Inward Opening
GFT 50 Single Leaf Inward Opening
Ground floor treatment system.
Application
High traffic entrance areas for private and public buildings, including retail, commercial, education and healthcare.
Description
The Schueco ground floor treatment system is designed to meet the rigorous demands of high traffic entrance areas in private and public buildings, including retail, commercial, education and healthcare. The thermally broken system comprises a pivot door and screen. In addition, the system can be integrated with AWS 70 SC window and FWS 50 and FWS 60 façade systems
Features and benefits:
- High-performance thermally broken.
- Narrow 50 mm sightlines.
- Single and double leaf pivot door options.

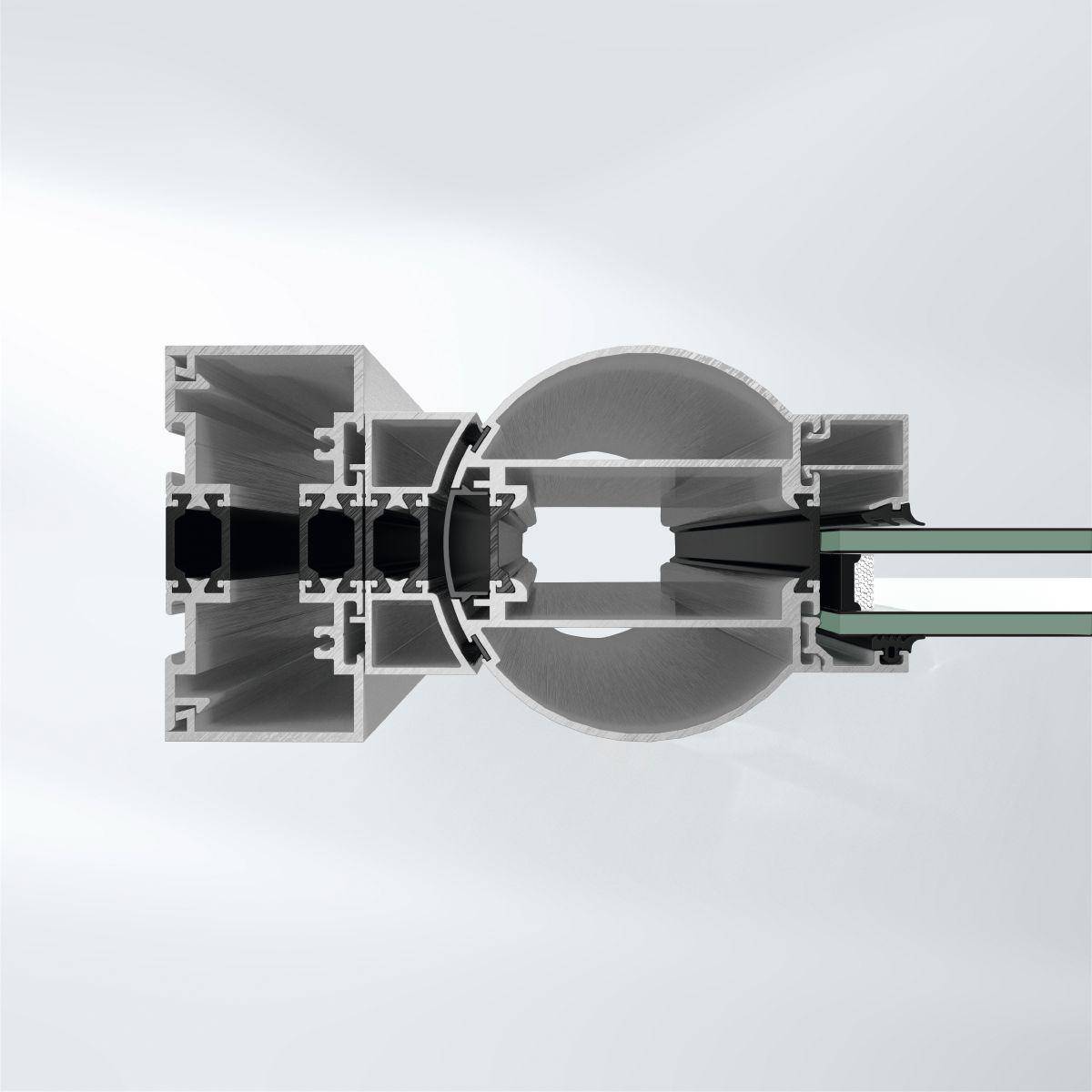

- Anti-finger trap and standard jamb profile options.
- Fully compliant with The Equality Act 2010.
- Compatible with Schüco AWS 70 SC windows and FWS facade systems.
Standards:
- Certified to PAS 24 across all locking types.
- EN ISO 1077-2.
- EN 12210.
- EN1027.
- EN1026.
- BS 6375-2.
- EN 1191.
General information
Color | Silver Guidance for specification option: Anodized. Other Guidance for specification option: Any (powder-coated or painted). |
Finish | Powder-coated Anodized Painted |
Material | Aluminium Glass |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/55 Doorsets L10/560 Glazed screen system L20/480 Doorsets L10/51 Glazed screen system |
Specification data - Aluminium doorsets
Configuration | Single leaf, inward opening. |
Doorset size | Manufacturer guidanceInsert requirements, width: 800–1100 mm; height: 1800–2500 mm. |
Performance | |
Acoustic performance | Manufacturer's standard. |
Strength and durability | Mechanical strength: To BS 6375 Part 2. |
Thermal | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Intruder resistance | |
Minimum requirement | To PAS 24. |
Frame | |
Material | Aluminium. |
Threshold | Easy-access door threshold. |
Finish | |
Coating | Powder coated.Anodized.Painted. |
Texture | Manufacturer's standard. |
Colour | Guidance for specification option: Can be powder-coated and painted available in any colour and finish to order. Omit for anodized finish. |
Installation fasteners | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Frame accessories | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Door leaf | |
Thickness | 65 mm. |
Material | Aluminium. |
Glazing | |
Type | Manufacturer guidanceInsert requirements; glass thickness: 6–46 mm. |
Manifestation | Manufacturer guidanceInsert requirements or omit. |
Finish | |
Coating | As Frame.Powder coated.Anodized.Painted. |
Texture | Manufacturer's standard. |
External colour | As Frame.Other.Guidance for specification option: Powder coated available in any colour and finish to order. Omit for anodized finish. |
Internal colour | As External.Other.Guidance for specification option: Powder coated available in any colour and finish to order. Omit for anodized finish. |
Film thickness (minimum) | Manufacturer's standard. |
Door accessories | Manufacturer guidanceConsult manufacturer for options and insert requirements or omit. |
Hardware | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Accessories | Manufacturer guidanceConsult manufacturer for options and insert requirements or omit. |
Air permeability | To BS 6375, class 0 and class 3. Guidance for specification option: Class 0 for pivot door, class 3 for screen. |
Wind load resistance | To EN 12210, Class C3 and class AE2400. Guidance for specification option: Class C3 for pivot door, class AE2400 for screen. |
Load | Class 2. Manufacturer guidanceVertical load. |
TorsionalStrength | Class 2. |
Soft body | Class 2. |
Hard body | Class 2. |
Operating forces | Class 1. |
Durability | Class 4. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | United Kingdom |
Recyclability | cradle2cradle |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
