Aluminium entrance door - AD UP 90
Verified by manufacturer 1 month ago
AD UP 90 Double Leaf Inward Opening
AD UP 90 Double Leaf Inward Opening
Double leaf inward or outward opening door system for use in luxury residential and commercial buildings.
Application
Luxury residential and commercial buildings.
Description
Double leaf inward or outward opening door system for use in luxury residential and commercial buildings.
Features and benefits:

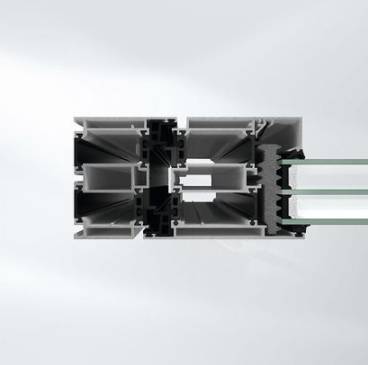

- Triple-shell profile composition ensures maximum stability and functional reliability.
- Long service life and a high load-bearing capacity.
- Range of vent types.
- Concealed hinges in combination with door communication and access control for a high degree of planning freedom.
- Proven system security and comfort.
- Continuous double centre gasket: excellent insulation and sealing properties.
Benefits:
- DIN EN ISO 10077-2.
- DIN EN 1627.
- DIN EN 12207.
- DIN EN 12208.
- DIN EN 12210.
- EN 14351-1.
General information
Color | Silver Other |
Finish | Anodized Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Specification data - Aluminium doorsets
Standard | Non-fire- and/ or smoke-rated doors to BS EN 14351-1. |
Third party accreditation | Cradle to Cradle Certified® Silver. |
Configuration | Double leaf, inward opening. |
Doorset size | Guidance for specification option: Consult manufacturer literature for details and insert requirements. |
Performance | |
Acoustic performance | Manufacturer guidanceConsult manufacturer literature for details and insert requirements; up to Rw 42 dB(A). |
Strength and durability | Mechanical strength: Class 3; proof of durability: Class 7, Class 8. |
Thermal | Manufacturer guidanceConsult manufacturer and insert requirements. Frame: ≥1.3 W/m²K. |
Intruder resistance | |
Minimum requirement | Manufacturer guidanceInsert requirements, up to RC2. |
Frame | |
Material | Aluminium. |
Threshold | Aluminium.PVC-U.Automatic door gasket.Flat door threshold. |
Finish | |
Coating | Anodized.RAL. |
Texture | Manufacturer's standard. |
Colour | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Installation fasteners | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Door leaf | |
Thickness | 90 mm. |
Core | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Panel details | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Material | Aluminium. |
Glazing | |
Type | Manufacturer guidanceConsult manufacturer for details and insert requirements, thickness: 28–68 mm. |
Finish | |
Coating | As Frame.Anodized.RAL. |
Texture | Manufacturer’s standard. |
External colour | As Frame.Other.Guidance for specification option: Consult manufacturer for options and insert requirements. |
Internal colour | As External.Other.Guidance for specification option: Consult manufacturer for options and insert requirements. |
Film thickness (minimum) | Manufacturer’s standard. |
Hardware | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Accessories | Manufacturer guidanceConsult manufacturer for options and insert requirements or omit. |
Air permeability | To EN 12207, Class 3. |
Watertightness | To EN 12208, Class 4A. |
Resistance to wind load | To EN 12210, Class C2 / B2. |
Weight | 200 kg. Guidance for specification option: Door leaf weight. |
Durability | Up to one million cycles. |
Loading | Class 4. Guidance for specification option: Mechanical load rating. |
Sustainability data
Country of material origin | United Kingdom |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
