Aluminium entrance door - AD UP 75

Verified by manufacturer 15 days ago

AD UP 75 Fixed Light

Schueco UK Ltd Variant:

Commercial, stylish entrance door for designed heavy use.

Jump to:
+44 (0)1908 282111 Website

Application

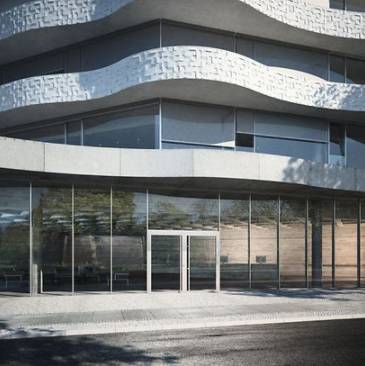

Luxury residential and commercial buildings.

Description

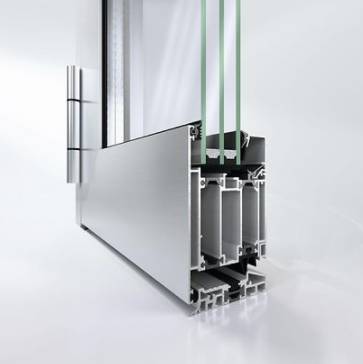

The Schüco AD UP 75 door system has a 75 mm basic depth offering high functional reliability. The principle and modular gasket system provide thermal insulation, weather tightness, load-bearing capacity and durability. A broad portfolio of fittings and design options allows the system to meet most requirements. The door system is ideal for integration with door communication and access control systems.


Features and benefits:

  • Good insulation properties combined with high stability.
  • Triple-shell profile composition ensures maximum stability and functional reliability.
  • Modular gasket system for optimal adaptation to required system properties.
  • Long service life and a high load-bearing capacity.
  • Range of vent types.
  • Concealed hinges in combination with door communication and access control for a high degree of planning freedom.
  • Barrel hinge for large leaf heights.
  • Proven system security and comfort.


Standards:

  • DIN EN ISO 10077-2.
  • DIN EN 1627.
  • DIN EN 12207.
  • DIN EN 12208.
  • DIN EN 12210.

General information

Color

Silver

Other

Manufacturer guidance

Powder coated available in any colour and finish to order.

Finish

Anodized

Powder-coated

Material

Aluminium

Shape

Rectangle

Square

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Other

Uniclass

Pr_30_59_24_02 Aluminium doorsetsPrimary

CAWS

L20/480 Doorsets

Specification data - Aluminium doorsets

Standard

Non-fire- and/ or smoke-rated doors to BS EN 14351-1.

Third party accreditation

Cradle to Cradle Certified® Silver.

Configuration

Fixed light.

Doorset size

-

Manufacturer guidance

Consult manufacturer for options and insert requirements, maximum 1400 x 3000 mm.

Performance

-

Acoustic performance

Guidance for specification option:

Consult manufacturer literature for details and insert requirements; up to Rw 42 dB(A).

Strength and durability

Mechanical strength: Class 3; proof of durability: Class 7, Class 8.

Thermal

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Frame: ≥1.4 W/m²K.

Intruder resistance

-

Minimum requirement

-

Manufacturer guidance

Insert requirements, up to RC3.

Frame

-

Material

Aluminium.

Threshold

Aluminium.

PVC-U.

Automatic door gasket.

Flat door threshold.

Finish

-

Coating

Anodized.

Powder coated.

Texture

Manufacturer's standard.

Colour

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Installation fasteners

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.

Door leaf

-

Thickness

75 mm.

Core

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.

Panel details

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.

Material

Aluminium.

Glazing

-

Type

-

Manufacturer guidance

Consult manufacturer for details and insert requirements, thickness: 13–53 mm.

Finish

-

Coating

As Frame.

Anodized.

Powder coated.

Texture

Manufacturer’s standard.

External colour

As Frame.

Other.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Internal colour

As External.

Other.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Film thickness (minimum)

Manufacturer’s standard.

Hardware

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.

Accessories

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.

Air permeability

To EN 12207, Class 4.

Watertightness

To EN 12208, Class 9A.

Resistance to wind load

To EN 12210, Class C3/ B3.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

United Kingdom

Recyclability

cradle2cradle

BIM objects

Platform Compatible Version
Revit
-

1
