Class Above - Acoustic Panel

Name: Class Above - Acoustic Panel
Brand: Soundtect
SKU: vSmK6PdNeD8DLAoZdcAsa1

Verified by manufacturer 2 days ago

Soundtect

Third party certifications:

VOC Content test Certificate
Certificate type

Acoustic suspended ceiling raft.

Jump to:

+44 (0)203 0402939 Website

Application

Acoustic Panel for Wall and ceiling applications

office
break out areas
restaurants
lecture hall
education
gymnasium
public area
lecture hall
auditoriums
home cinema
meeting room
hospitality
swimming pool area
medical centre
airport
library
hotel
reception area
atrium
dining hall
assembly hall
classroom
sales area

Description

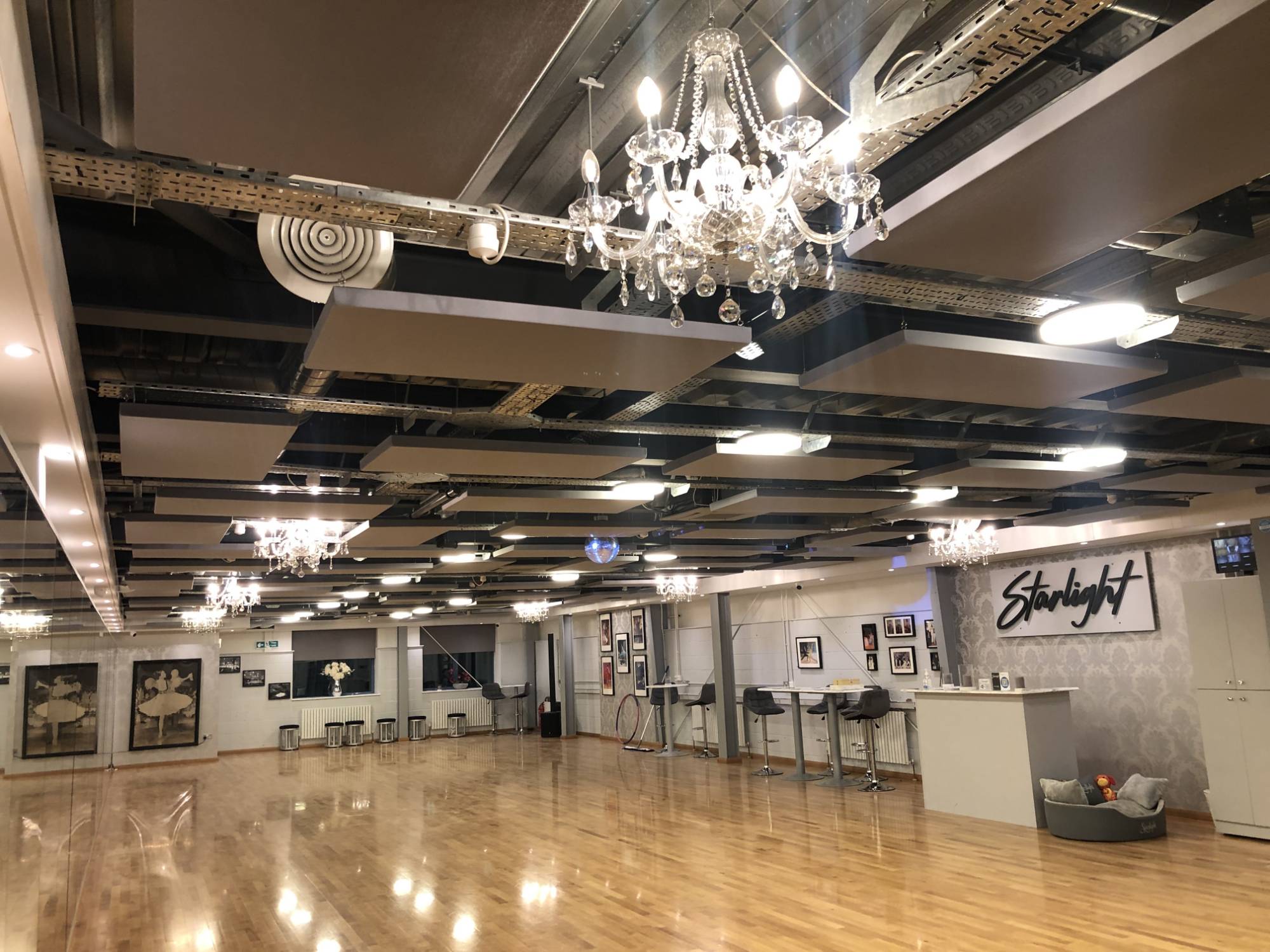

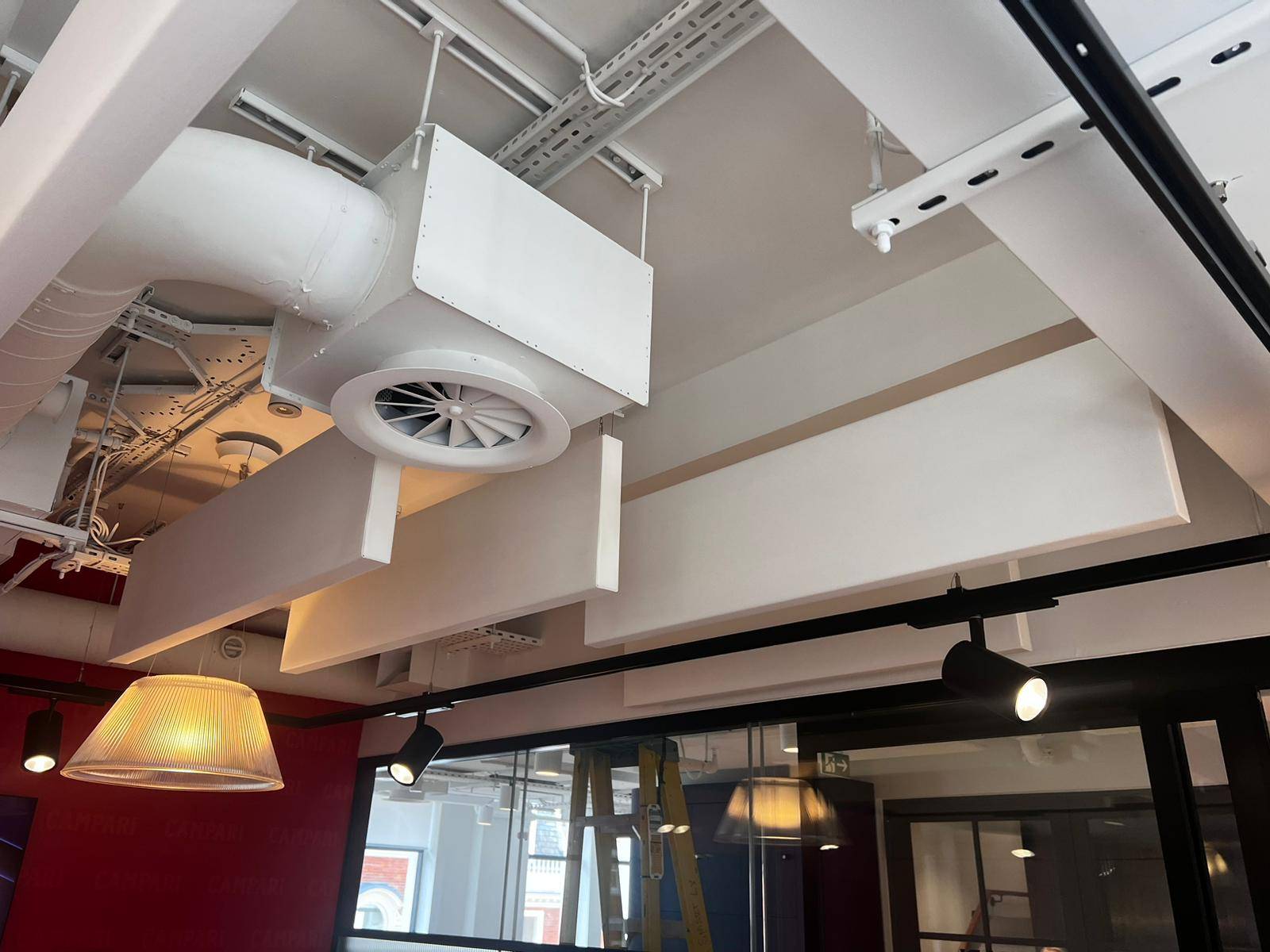

Class Above are engineered acoustic ceiling rafts in 1200 x 600 mm, 1200 x 300 mm and 600 x 600 mm sizes giving exceptional levels of acoustic performance. The baffles and rafts are installed using our unique suspension cable system enabling easy installation and removal.

Features and benefits:

Suspended from ceilings.
Can be arranged and combined in various formations.
Layer in varying depths to create dramatic spaces.
Using the same tried and tested recycled PET bottles as the existing range.
Cost effective solution for large installations.
Sustainable design.
Composition: 100% polyester.
Low VOC.
Colourfastness to Light, AATCC16(3), Class 4.5
BS EN ISO 354:L2003.
Certified 100% recyclable.
PET with over 50% recycled content.

10-12 weeks sea shipment

2-3 air freight

General information

Color	Black Grey White
Finish	Textured
Material	Polyester fibre (PET)
Shape	Square Rectangle
Length	300 mm 600 mm
Width	600 mm 1200 mm
Height	50 mm
Warranty description	Ten year

Uniclass	Pr_35_93_13_80 Sound attenuator infill unitsPrimary
CAWS	K40/135 Board-suspended ceiling system K40/20 Board-suspended ceiling systems

Specification data - Sound attenuator infill units

Form	Raft.
Application	Ceiling mounting.
Material	Polyester.
Acoustic performance	-
Sound absorption	To EN ISO 11654: NRC: 0.95.
Fire performance	-
Reaction to fire	BS1 DO. Suitable for use in Class 1 and Class 0.
Dimensions	-
Size (length x width)	300 x 1200 mm. 600 x 600 mm. 600 x 1200 mm.
Thickness (overall)	50 mm.
Colour	Ash. Charcoal. White.

MoistureContent	Polyester fibre when exposed to an atmosphere of 50°C at 90% relative humidity for four days showed moisture absorption of less than 0.03% by weight. Polyester is not affected by moisture.
Colour fastness	Colourfastness to Light, AATCC16(3), Class 4.5.

Sustainability data

Contains Red List materials	No
Country of material origin	China
Country of product manufacture	Hong Kong
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	70 %
