Freestyle Skreens range : Coral, Urban, Woodland - Acoustic Panel

Verified by manufacturer 2 days ago

Soundtect Third party certifications:
  • Global-Mark

    Global-Mark

    Certificate type

  • SRL

    SRL

    Certificate type

  • Independent sustainability assessment

    Independent sustainability assessment

    Certificate type

  • Green Tag

    Green Tag

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

  • VOC Content test Certificate

    VOC Content test Certificate

    Certificate type

Acoustic hanging screen

Jump to:
+44 (0)203 0402939 Website

Application

Acoustic Panel for Wall and ceiling applications

  • office
  • break out areas
  • lecture hall
  • education
  • public area
  • lecture hall
  • medical centre
  • library
  • hotel
  • reception area




Description

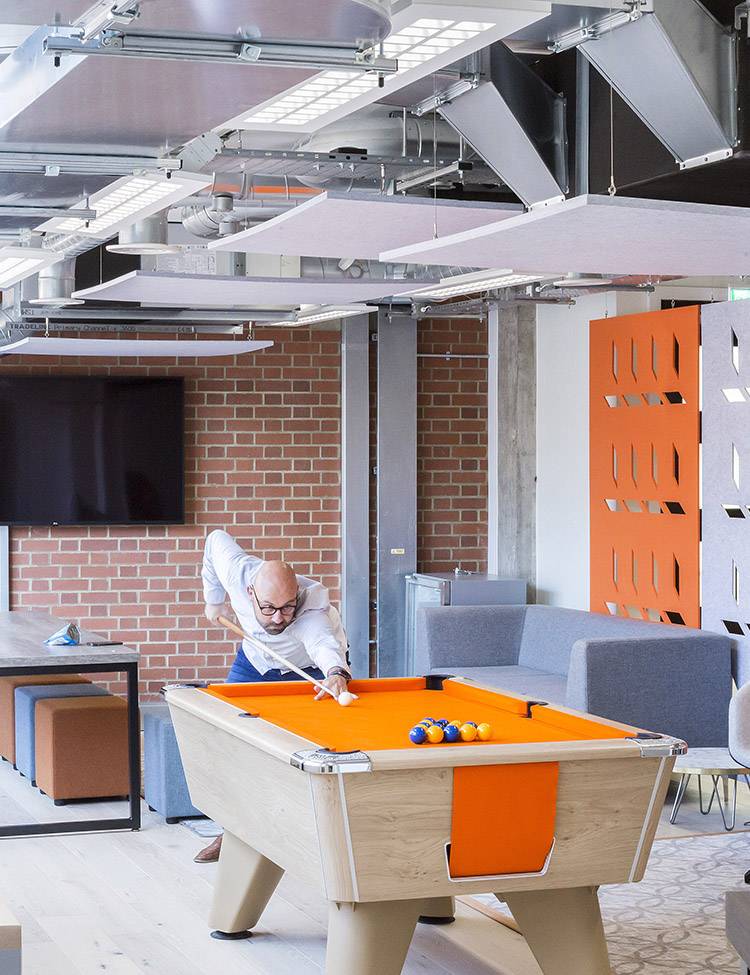

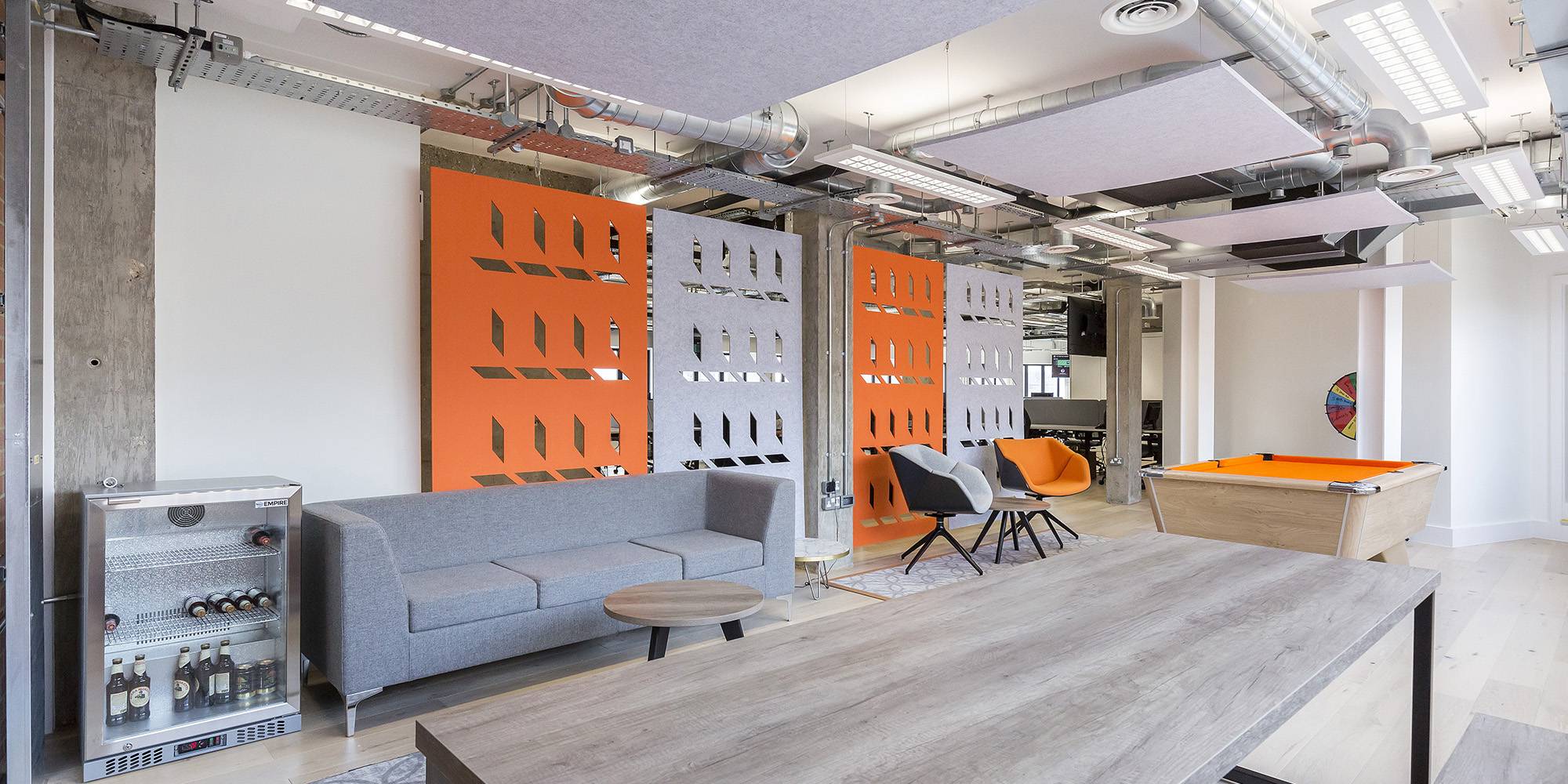

The Skreen range of hanging screens is a collection of three stylish, lightweight and versatile designs manufactured from the ever popular sustainable Freestyle, and developed to create privacy and zone areas in open plan environments. Three standard designs, Coral reef, Woodland and Urban take inspiration from the natural World using gentle shapes to create a simple, yet effective dividers, available in a selection of widths and colours. Water jet cut, these designs are part of the standard Skreen range but Soundtect can supply bespoke patterns on request.

Features and benefits:

  • Elevated design potential.
  • Incredible versatility.
  • Available in a any configuration from the 24 Freestyle colour and six Timba range of options.
  • Each panel is a maximum 2400 x 1200 mm but bespoke sizes available, including bespoke size slats and spacing.
  • Installed on the walls or ceiling to create a harmonious finish with superb sound control properties.
  • Excellent sound absorption.
  • Finely tuned reverberation thanks to Soundtect’s pioneering acoustic technology.
  • Environmentally friendly and recyclable, Freestyle™ Acoustic Panels are suitable for projects when there is an eco-conscious consideration to be made.
  • Manufactured by Soundtect®.
  • Independently certified.
  • For use on walls and ceilings.
  • Composition: 100% polyester.
  • Low VOC.
  • Colorfastness to Light, AATCC16(3), Class 4.5.
  • ISO 14006 certified manufacturing facility.
  • Certified 100% recyclable.
  • Recycled content: Up to 70% (minimum 50%) post consumer recycled content.

10-12 weeks sea shipment

2-3 air freight

General information

Color

Beige

Black

Blue

Brown

Green

Show more

Material

Polyester fibre (PET)

Shape

Rectangle

Length

300 mm

400 mm

600 mm

Bespoke

Width

Bespoke

Height

10 mm

20 mm

Warranty description

Ten year

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary
Ss_25_25_75_05 Acoustic panel lining systems

CAWS

K13/170 Acoustic panel lining

K13/170 Acoustic panel lining

K40/20 Board-suspended ceiling systems

K40/135 Board-suspended ceiling system

Specification data - Sound attenuator infill units

Form

Panel.

Raft.

Baffle.

Application

Ceiling mounting.

Wall mounting.

Material

Polyester.

Material density

10 mm, 2 kg/m².

20 mm, 4 kg/m².

Acoustic performance

-

Sound absorption

NRC 0.65 (20 mm), NRC 0.35 (10 mm).

Fire performance

-

Reaction to fire

To EN 13501, Bs1,d0.

Dimensions

-

Size (length x width)

2440 x 300 mm.

2440 x 400 mm.

2440 x 600 mm.

Thickness (overall)

10 mm.

20 mm.

Profile

Linear.

Surface pattern

Skreen Urban.

Skreen Coral Reef.

Skreen Woodland.

Skreen Bespoke.

Colour

Ballet.

Bolero.

Calypso.

Chacha.

Conga.

Contemporary.

Disco.

Flamenco.

Hiphop.

Jive.

Lambada.

Latin.

Mambo.

Passo.

Polka.

Quickstep.

Rumba.

Salsa.

Tango.

Twist.

Vogue.

Waltz.

Zumba.

Ebony.

White oak.

Pine.

Oak.

Walnut.

Chestnut.

MoistureContent

Polyester fibre when exposed to an atmosphere of 50°C at 90% relative humidity for four days showed moisture absorption of less than 0.03% by weight. Polyester is not affected by moisture.

Colour fastness

Colourfastness to Light, AATCC16(3), Class 4.5.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

Hong Kong

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

70 %

Third party certifications

Global-Mark

Global-Mark

221007_SOU_Freestyle & 3D panel_GR Level B_v2

SRL

SRL

Freestyle 20mm acoustic data

Independent sustainability assessment

Independent sustainability assessment

Global Green Tag

Green Tag

Green Tag

GreenTag GreenRate Level B

QA Certificate

QA Certificate

Health declaration 221007_SOU_Freestyle & 3D panel_PhD_Certificate_v2

VOC Content test Certificate

VOC Content test Certificate

VOC CONTENT

QA Certificate

QA Certificate

ST air quality VOC test report GZHL1907031817OT
