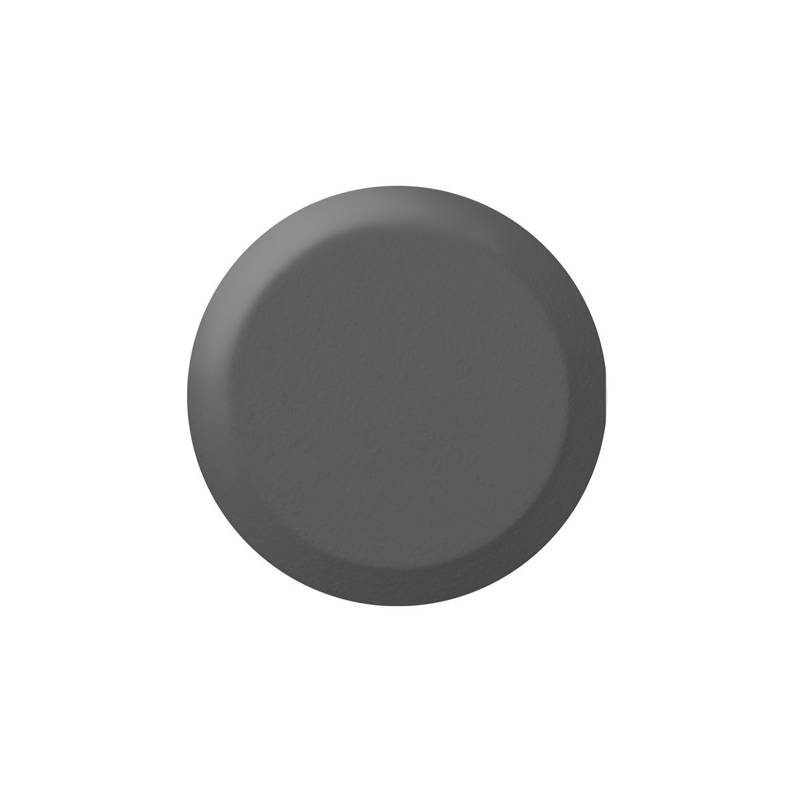

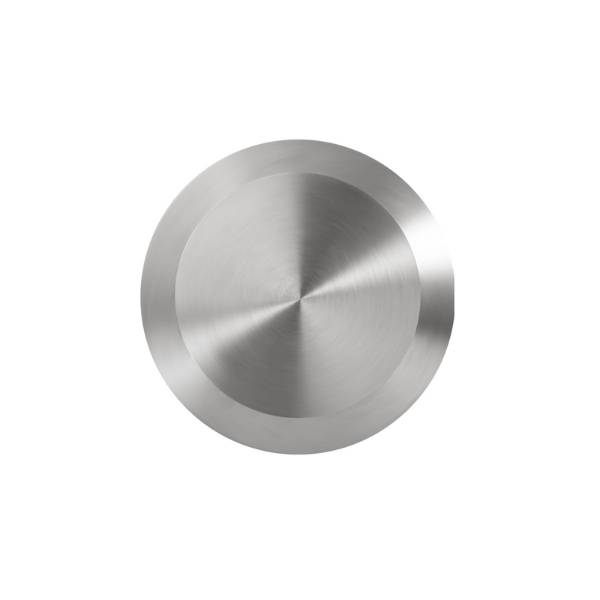

Chamfered Tactile Demarcation Stud

Name: Chamfered Tactile Demarcation Stud
Brand: Studmarc
SKU: evRe3cTYBvLqzgWUyTiqUB

Verified by manufacturer 3 months ago

Aluminium Tactile Stud - AT 25 mm

Studmarc

Tactile Demarcation stud.

Jump to:

BOS

+44(0)1686 807 450 Website

Application

These studs are suitable for use as:

Stair-nosing alternative.
Area demarcation aids.
Tactile guidance for the blind and visually impaired.

Description

This tactile stud is manufactured from various materials including 1.4404 (316L) stainless steel. At 25 mm in diameter and 5 mm in height, this stud is in line with DETR guidelines, meaning they are suitable for use in guiding the visually impaired in public and private settings.

The tactile stud has a chamfered edge leading up to the surface of the stud.

Multiple designs, textures, and patterned inserts are available.

Tactile strips with matching patterns are available.

Coloured Inserts:

PVC.
TPU.
Anti-slip tape.

Designs:

Crosshatch.
Pyramid.
Grooved.

Alternate sizing and etching/ engraving are available with the bespoke product service.

Bespoke sizing guide:

Diameter: 15–100 mm.
Stud head height: 3–6 mm.
Fixing pin length: 12–80 mm.

Features and benefits:

DETR compliant.
Easy drill and resin installation.
Attractive alternative to stair nosings.
Weatherproof 1.4404 (316L) stainless steel.

General information

Color	Grey Yellow Red Blue White Green Show more
Finish	Natural Other
Material	Aluminium Brass Bronze Stainless steel Polyurethane
Shape	Circle
Length	25 mm 15 mm Bespoke
Width	25 mm Guidance for specification option: Diameter Bespoke
Height	5 mm Bespoke Manufacturer guidance 5
Warranty description	Two year Lifetime

Uniclass	Pr_35_90_60_87 Tactile paving studsPrimary
CAWS	Q10/415 Demarcation units

Specification data - Tactile paving studs

Material	Aluminium.
Profile	Chamfered.
Size	25 mm diameter. Bespoke. Guidance for specification option: Diameter: 15–100 mm. Fixing pin length: 12–80 mm. Stud head height: 3–6 mm. Consult manufacturer for details and insert requirements.

Fixing:	Machined pin. Self adhesive. Without pin.
Colour:	Black. Grey. Neon. Red. White. Yellow. Show more
Insert	Not applicable. Black. Blue. Dark grey. Grey. Light grey. Red. White. Yellow. Show more Manufacturer guidance Only applicable to variants with insert.
Design:	Laser etching/engraving. Printed acrylic imagery. Printed imagery.
Finish:	Bright polish. Burnt. Sandblasted.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	Europe
Recyclability	Should the need to recycle the studs arise, all material options bar Polyurethane can be melted down and reused again.
