Cellcore HX Plus

Verified by manufacturer 3 months ago

Cordek Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

Collapsible void former with integral insulation for use under reinforced concrete floor slabs. The product has a number of variables including panel depth, thermal and loading characteristics.

Jump to:
BOS
+44 (0)1403 799600 Website

Application

Designed for use beneath reinforced concrete floor slabs to protect against the potential effects of ground heave.

Description

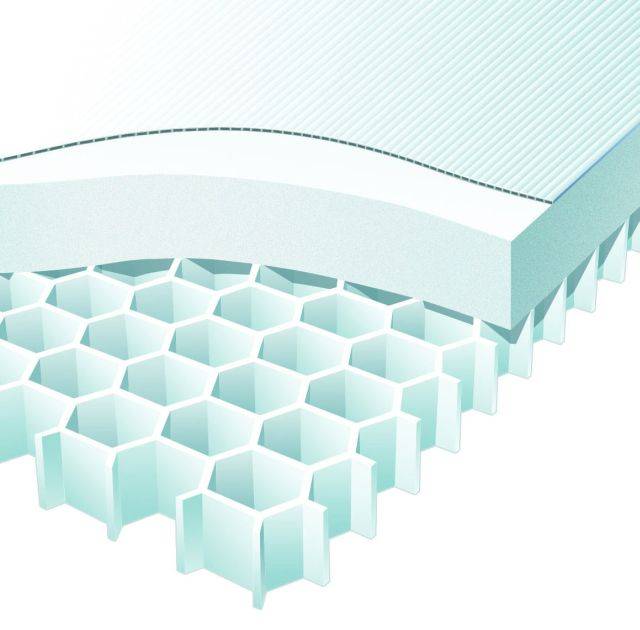

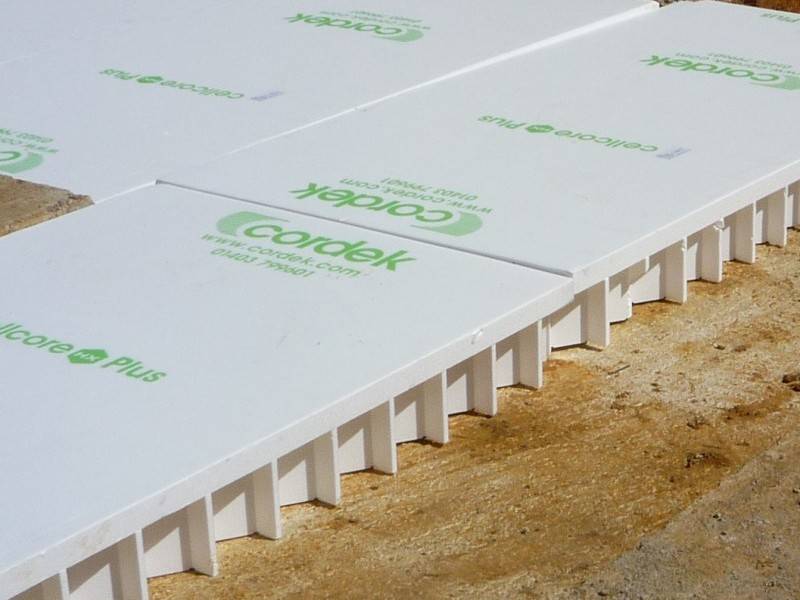

Comprising a cellular construction of moulded expanded polystyrene combined with a robust polypropylene board and a layer of EPS insulation which has been designed and tested to tight tolerances to achieve the specified performance characteristics. It is available in a variety of depths and grades to suit the most commonly encountered combinations of soil heave potential and concrete depths.


Features and benefits:

  • Reduces the upward force transmitted to the structure.
  • Wide range of depths and grades to suit most applications.
  • Meets the NHBC Technical Standards.
  • Consistent performance supported by extensive testing.
  • Incorporates an integral layer of EPS insulation available in various thicknesses to meet thermal performance requirements.
  • Cost effective and reduced carbon footprint.
  • Reduced depth and therefore less excavation.
  • Suitable for most lightweight slabs.
  • Water resistant.

General information

Color

White

Material

Polystyrene

Guidance for specification option:

Expanded polystyrene (EPS) honeycomb with insulation.

Polypropylene

Guidance for specification option:

Heavy-duty polypropylene top.

Shape

Rectangle

Length

2400 mm

Width

1200 mm

Height

130 mm

155 mm

180 mm

200 mm

205 mm

Show more

Uniclass

Pr_25_71_29_16 Compressible board substructure formworkPrimary

CAWS

E20/182 Collapsible board substructure formwork

E20/47 Compressible board substructure formwork

Specification data - Compressible board substructure formwork

Third party certification

BBA Agrement certificate.

Guidance for specification option:

Certificate no. 11/4862.

Material

Expanded polystyrene (EPS) and polypropylene.

Thickness

80 mm.

150 mm.

215 mm.

Guidance for specification option:

Plus thickness of Filcor (EPS) insulation.

Grade depth options

7 / 10.

Guidance for specification option:

Safe load/ fail load (kN/m²), 220 mm maximum concrete depth.

9 / 13.

Guidance for specification option:

Safe load/ fail load (kN/m²), 300 mm maximum concrete depth.

13 / 18.

Guidance for specification option:

Safe load/ fail load (kN/m²), 460 mm maximum concrete depth.

18 / 24.

Guidance for specification option:

Safe load/ fail load (kN/m²), 660 mm maximum concrete depth.

24 / 32.

Guidance for specification option:

Safe load / fail load (kN/m²), 900 mm maximum concrete depth.

Insulation

50 mm.

Guidance for specification option:

Standard.

75 mm.

100 mm.

125 mm.

150 mm.

Show more

Dimensions

2400 x 1200 mm.

Grade

Guidance for specification option:

Dependent on the total load that will be exerted onto the panels. Consult manufacturer for information.

Colour

White.

Sustainability data

Country of product manufacture

United Kingdom

Material

Polystyrene

Guidance for specification option:

Expanded polystyrene (EPS) honeycomb with insulation.

Polypropylene

Guidance for specification option:

Heavy-duty polypropylene top.

Recyclability

Guidance for specification option:

Both expanded polystyrene (EPS) and polypropylene can be recycled.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

5

IFC

IFC2X3

2

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

11/4862 CELLCORE HX

Literature

Cordek Cellcore HX Data Sheet

Cordek Cellcore HX Data Sheet

Cordek Premier Guarantee Certificate - Cellcore HX Plus

Cordek Premier Guarantee Certificate - Cellcore HX Plus

Cordek LABC Warranty Certificate - Cellcore HX Plus

Cordek LABC Warranty Certificate - Cellcore HX Plus

Cordek Ground Heave Solutions Brochure

Cordek Ground Heave Solutions Brochure

Cordek Cellcore HX BBA Certificate

Cordek Cellcore HX BBA Certificate

Case studies

New Library University of Roehampton

New Library University of Roehampton

Similar products from Cordek Ltd

Cellcore HG

Cellcore HG

Cellcore HX B

Cellcore HX B

Cellcore HX S

Cellcore HX S
