Cellcore HX B

Name: Cellcore HX B
Brand: Cordek Ltd
SKU: 8V6vVeMSzToK5cF75J3nWs

Verified by manufacturer 8 months ago

Cordek Ltd

Third party certifications:

BBA Agrément Certificate
Certificate type

Collapsible void former for use under reinforced concrete ground beams and pile caps. The product has a number of variables including panel width, depth and loading characteristics.

Jump to:

BOS

+44 (0)1403 799600 Website

Application

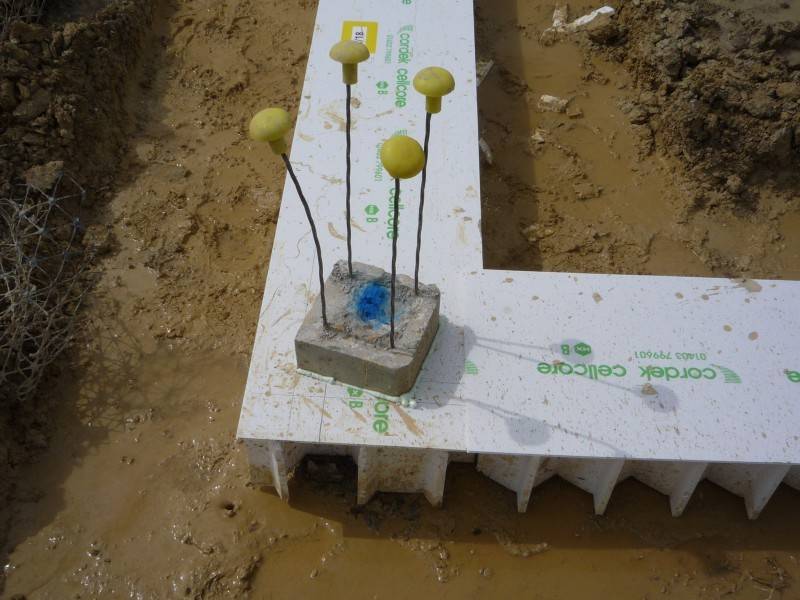

Designed for use beneath reinforced concrete ground beams and pile caps to protect against the potential effects of ground heave.

Description

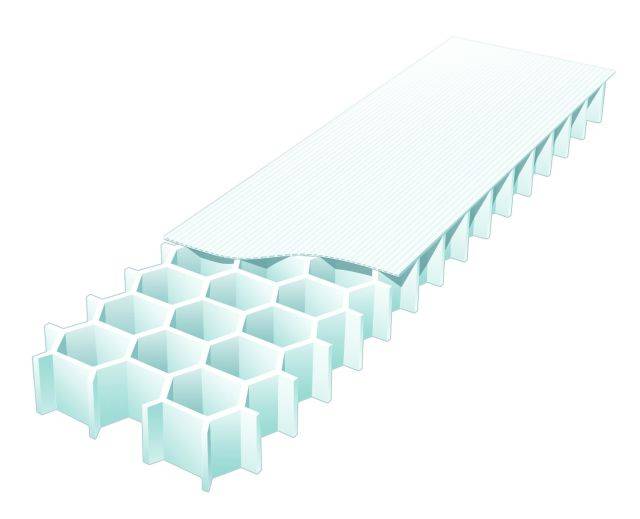

Comprising a cellular construction of moulded expanded polystyrene combined with a robust polypropylene board, which has been designed and tested to tight tolerances to achieve the specified performance characteristics. It is available in a variety of depths and grades to suit the most commonly encountered combinations of soil heave potential and concrete depths.

Features and benefits:

Reduces the upward force transmitted to the structure.
Wide range of depths and grades to suit most applications.
Meets the NHBC Technical Standards.
Consistent performance supported by extensive testing.
Available with integral EPS insulation, permanent formwork for ground beams or voids for ventilation of ground gases by request.
Cost effective and reduced carbon footprint.
Reduced depth and therefore less excavation.
Suitable for most lightweight slabs.
Water resistant.

General information

Color	White
Material	Polystyrene Guidance for specification option: Expanded polystyrene (EPS). Polypropylene Expanded polystyrene (EPS)
Shape	Rectangle
Length	2400 mm
Width	1200 mm Manufacturer guidance Width available from 300–1200 mm in 25 mm increments to suit ground beam.
Height	85 mm 155 mm 220 mm Manufacturer guidance Thickness.

Uniclass	Pr_25_71_29_16 Compressible board substructure formworkPrimary
CAWS	E20/182 Collapsible board substructure formwork E20/47 Compressible board substructure formwork

Specification data - Compressible board substructure formwork

Third party certification	BBA Agrement certificate 11/4862.
Material	Expanded polystyrene (EPS) and polypropylene.
Thickness	85 mm. 155 mm. 220 mm.

Grade	9 / 13. Guidance for specification option: Safe load/ fail load (kN/m²), 300 mm maximum concrete depth. 13 / 18. Guidance for specification option: Safe load/ fail load (kN/m²), 460 mm maximum concrete depth. 18 / 24. Guidance for specification option: Safe load/ fail load (kN/m²), 660 mm maximum concrete depth. 24 / 32. Guidance for specification option: Safe load/ fail load (kN/m²), 900 mm maximum concrete depth. 32 / 42. Manufacturer guidance Dependent on the total load that will be exerted onto the panels. Consult manufacturer for information.
Colour	White.
Dimensions	2400 x 1200 mm. Guidance for specification option: Length x width (maximum). 2400 x 300–1200 mm. Guidance for specification option: Width available from 300–1200 mm in 25 mm increments to suit ground beam, Insert requirement.

Sustainability data

Country of product manufacture	United Kingdom
Recyclability	Fully recyclable. Manufacturer guidance Both expanded polystyrene (EPS) and polypropylene can be recycled.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
