Verified by manufacturer 7 months ago

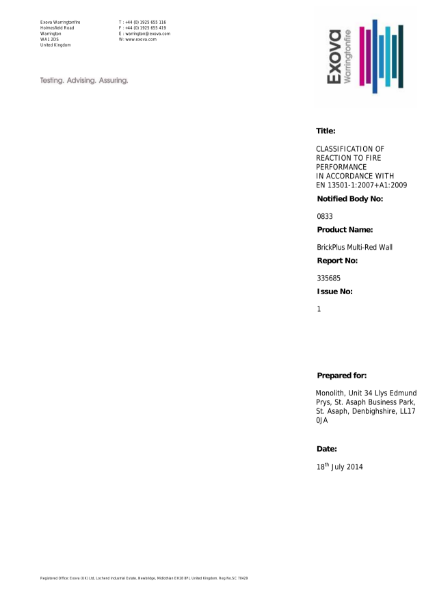

BS EN 13501-1
Certificate type
BBA Agrément Certificate
Certificate type
Brick slip cladding panels.
Can be used internally and externally on:
Replaces traditional 'block and brick' when used with a range of substrates, including:

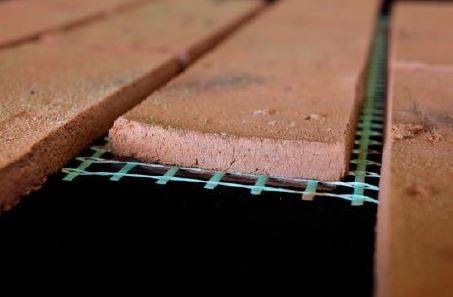

Brick slip panels which consist of 12 BrickPlus Pro slips with integrated mesh.
Features and benefits:
Composition:
Consult manufacturer's literature for further technical details and preparation instructions.
Adhesives and base-coats to be applied as per manufacturer's recommendation.
| Color | Black Grey Red Orange Other |
| Finish | Brick Dragwired Wirecut Buffed Distressed |
| Material | Composite Hydraulic lime Glass reinforced concrete (GRC) |
| Shape | Other |
| Length | 13 mm 20 mm Bespoke Manufacturer guidanceThickness. |
| Width | Bespoke |
| Height | Bespoke |
| Uniclass | |
| CAWS | F1/304 Facing bricks F10/5 Facing brickwork |
| Classification data | |
| Product reference | BrickPlus Pro. |
| Standard | To BS EN 771-1. |
| Material | Lime-based mortar. |
| Backing | Glass fibre mesh. Guidance for specification option:
 |
| Work sizes | 450 x 553 mm. Guidance for specification option: Overall panel size. Individual brick slip size: 215 x 65 mm. |
| Profile | Rectangular. |
| Compressive strength | 100 kPa. |
| Freeze-thaw resistance | Can withstand: 10 weeks: 100 sub-cycles of 45 minutes heat radiation at 65°C. 15 minutes: Cooling water 15°C. 64 hours: Freezing at -20°C. |
| Density | |
| Gross dry | 1800 kg/m². |
| Tolerances | To BS EN 771-1, T1. |
| Reaction to fire | Class A1 to BS EN 13501-1. |
| Accessories | Not required. Pistol corners. Headers. Reveals. Individual brick slips. Guidance for specification option: Either full or half size, to accommodate closures. |
| Environmental performance requirements | |
| Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 20%. |
| Thickness | 13 mm. Guidance for specification option: Standard. 20 mm. |
| Finish | Engineered black. Engineered blue. Engineered red. Red dragwire. Grey wolf. Sunset orange. Monaco buff. Burnt coals. Cheshire multi. Black ice. Crushed ice. New London stock. Bespoke. Guidance for specification option: Consult manufacturer and insert requirements; brick matching services are available. |
| Panel weight | 3.8 kg. Guidance for specification option: Weight per m²: 19 kg. |
| Bond strength | 115–174 kNm². Guidance for specification option: If using manufacturer recommended adhesives. |
| Impact resistance | Under 3 J impact: No damage. |
| Third-party certification | BBA (56321, 58311). Exova Warringtonfire. |
| Country of material origin | United Kingdom |
| Country of product manufacture | United Kingdom |
| Material | Composite Hydraulic lime Glass reinforced concrete (GRC) |
| Carbon dioxide equivalent | |
| Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared | |
|  Stage  Normalised unit  (kg CO₂ eq/kg)  Declared unit  (kg CO₂ eq/m²)  Stage:A1–A3 ('Production stage')  Normalised unit  :   Declared unit  : 13.8  | |
| Recyclability | Pro slips can be recycled into hardcore following end of life |
| Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 20 % |
