BrickPlus Eco - Insulated Brick Slip Panels

Name: BrickPlus Eco - Insulated Brick Slip Panels
Brand: Brickplus
SKU: qgdgRiQ8UhFf6N7Xfw6acs

Verified by manufacturer 10 months ago

Brickplus

Product certifications:

BBA Agrément Certificate
Certificate type
BS EN 13501-1
Certificate type

Insulated, interlocking brick slip cladding panels.

Jump to:

Request BIM

01745 472 150 Website

Application

Can be used internally and externally on:

Domestic and commercial buildings.
Low level applications.
New builds.
Renovation projects.

Replaces traditional 'block and brick' when used with a range of substrates, including:

Insulated concrete formwork (ICF).
Masonry.
Cement particleboard.
Natural stone.
Concrete.
Structural insulated panels (SIPs).
Solid wall construction.

Description

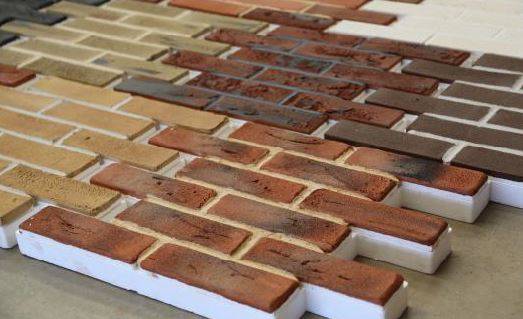

Brick slip panels which consist of 12 BrickPlus Eco slips bonded to lightweight, high grade, expanded polystyrene (EPS) interlocking panels.

Features and benefits:

Brick matching service available, with a range of colour, texture and finish options.
Carbon neutral.
Easy to install and rapid fitting - 75% quicker than traditional methods, with the panels locking together.
Thermally efficient - eliminates cold bridging, and helps to produce a low thermal transmittance (U-value).
Reduced clear up time and overall mess during application.
Cost efficient.
Can be shipped ready for application.
Will provide protection against rain ingress.
Can resist wind loads and impact damage.
Has a B-s1,d0 reaction to fire classification in accordance with BS EN 13501-1.
Can contribute towards satisfying the requirements of the National Building Regulations.
High breathability.
Can contribute to limiting the risk of surface and interstitial condensation.
Suitable for a wide range of installations.
BBA certified.

Composition:

10 mm EPS brick-slip backing.
10 mm cementitious mortar.
EPS panel (to desired thickness).

Consult manufacturer's literature for further technical details and preparation instructions.

General information

Color	Black Grey Red Orange Yellow Blue Green White Other Show more
Finish	Brick Dragwired Wirecut Antiqued Buffed Distressed Dragfaced Smooth Waterstruck Show more
Material	Expanded polystyrene (EPS) Composite Cementitious
Shape	Other
Length	40 mm Bespoke Manufacturer guidance Thickness.
Width	450 mm
Height	450 mm

Uniclass	Pr_20_93_52_18 Composite brick slipsPrimary Pr_25_71_14_29 Faced insulating wall panels
CAWS	F10/5 Facing brickwork F1/304 Facing bricks

Specification data - Composite brick slips

Classification data
Product reference	BrickPlus Eco.
Material	Cementitious mortar.
Backing	Expanded polystyrene, Grade 200E.
Work sizes	450 x 450 mm. Guidance for specification option: Overall panel size.
Profile	Square.
Compressive strength	Mortar: 45 MPa. Polystyrene backing: 200 kPa (at 10% compression).
Freeze-thaw resistance	Can withstand: Ten weeks: 100 sub cycles of 45 mins heat radiation 65°C. 15 minutes: Cooling water 15°C. 64 hours: Freezing at -20°C.
Tolerances	To BS EN 771-1, T1.
Thermal conductivity	At 10°C: 0.033 W/(m·K). Guidance for specification option: EPS components.
Thermal resistance	29.41 m²·K/W. Guidance for specification option: EPS components.
Water vapour permeability	0.007–0.018 mg/Pa·h·m. Guidance for specification option: EPS components.
Reaction to fire	Class B-s1, d0 to BS EN 13501-1. Guidance for specification option: Overall. Exposed EPS: Class E.
Accessories	Not required. Pistol corners. Headers. Reveals. Individual brick slips. Guidance for specification option: Either full or half size, to accommodate closures.
Environmental performance requirements	-
Recycled content As defined in clause 7.8 of BS EN ISO 14021	20%.
Thickness	40 mm. Bespoke. Guidance for specification option: Consult manufacturer and insert requirements.
Finish	Engineered black. Engineered blue. Engineered red. Red dragwire. Grey wolf. Sunset orange. Monaco buff. Burnt coals. Cheshire multi. Black ice. Crushed ice. New London stock. Bespoke. Guidance for specification option: Consult manufacturer and insert requirements; brick matching services are available.
BendingStrength	250 kPa. Guidance for specification option: EPS components.
Third-party certification	BBA (18/5604). Exova Warringtonfire (335685). KIWA BDA Agrément (BAW 13-028/01/A, BAW 14-025/03/A).
Water vapour resistance	238 MN·s/g·m.

Sustainability data

Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Expanded polystyrene (EPS) Composite Cementitious
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 0
Recyclability	Eco slips can be recycled to use for hardcore. EPS is recycled at specialist locations and repurposed.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	20 %
