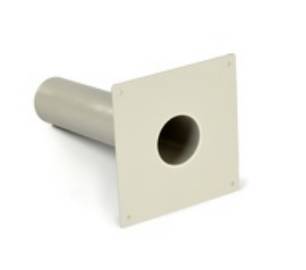

BauderFPO NLF-R 63 Emergency Overflow - Emergency Overflow

Name: BauderFPO NLF-R 63 Emergency Overflow - Emergency Overflow
Brand: Bauder Ltd
SKU: 2PGe9f8dXe48cZnxrozEZd

Verified by manufacturer 4 days ago

A rigid FPO rainwater outlet with a Thermoplan membrane flange for welding to membrane upstands.

Jump to:

Application

Used as an emergency overflow outlet in roofing systems, suitable for horizontal drainage and can be welded to Thermoplan FPO membrane upstands.

Bauder emergency overflow FPO outlet (without leaf guard).

Features and benefits:

A rigid FPO rainwater outlet with a Thermoplan membrane flange that can be welded to Thermoplan membrane upstands.
Surface is an FPO flange, and polypropylene spigot.

Color	White
Finish	Other
Material	Flexible polyolefin (FPO) Guidance for specification option: The membrane flange is Thermoplan FPO membrane. Polypropylene Guidance for specification option: Spigot is polypropylene.
Shape	Circle Guidance for specification option: Spigot Square Guidance for specification option: Flange
Length	480 mm
Width	63 mm Guidance for specification option: Diameter. Manufacturer guidance Diameter.
Height	63 mm Manufacturer guidance Diameter.
Warranty description	- Manufacturer guidance A comprehensive range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information.

Uniclass	Pr_65_50_35_37 Gravity rainwater outletsPrimary
CAWS	R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets

SKU Code	6544 0063

Classification data
Roof construction	-
Form	- Manufacturer guidance Insert requirements.
Roof insulation thickness	- Manufacturer guidance Insert requirements.
Material	Polypropylene.
Spigots	480 mm, polypropylene spigot.
Diameter	63 mm.
Flange	Thermoplan membrane.

Material	Flexible polyolefin (FPO) Guidance for specification option: The membrane flange is Thermoplan FPO membrane. Polypropylene Guidance for specification option: Spigot is polypropylene.
