Atlantic LED II CG-S - Central Battery Bulkhead

Name: Atlantic LED II CG-S - Central Battery Bulkhead
Brand: Eaton Electric
SKU: dNbyNcU1VAyqhZmyreLDcG

Verified by manufacturer 6 months ago

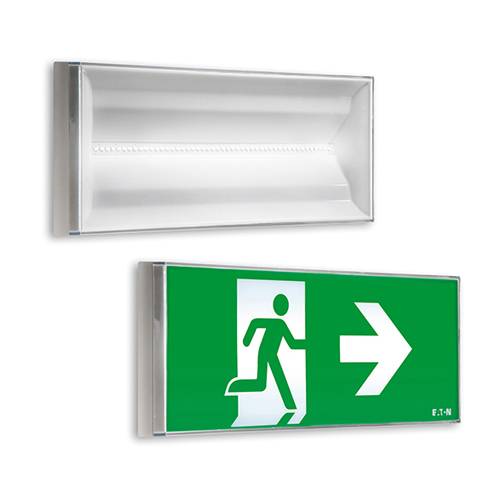

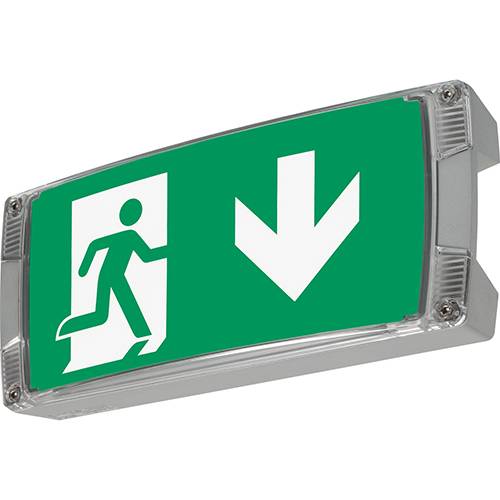

Atlantic LED II S CG-S - 40071355601

Eaton Electric

Central battery LED safety and exit sign with high ingress protection class (IP66).

Jump to:

01753 608 700 Website

Application

Suitable for indoor and outdoor use.
Wall and ceiling mounted.
Industrial environments and public buildings.

Description

The Atlantic LED CG-S luminaire series fulfils protection rating IP66, and with UV-resistant materials and an especially tough construction is particularly suitable for use in outdoor areas and areas with high soiling. An integrated pressure equalization membrane reduces the effects of condensation in changing weather conditions. With a variety of mounting options and LED optics, this series meets the requirements of industrial environments and public buildings.

Features and benefits:

LED exit sign luminaire with high protection class (IP66) for indoor and outdoor use.
Luminaire with limited surface temperatures for use in operating areas with fire hazard.
Acc. HACCP suitable for use in food processing industry.
Robust construction from aluminium diecast and high impact resistant cover made of polycarbonate.
Numerous knock-outs for cable entries and double terminal for through-wiring.
An integrated pressure equalisation membrane reduces the effects of condensation in changing weather conditions.

General information

Color	Grey
Material	Aluminium Polycarbonate
Shape	Rectangle
Length	62 mm 188 mm
Width	303 mm 304 mm
Height	136 mm 159 mm

Uniclass	Pr_70_70_48_25 Emergency luminairesPrimary Pr_70_70_48_23 Dedicated slave emergency luminaires
CAWS	V90/510 General purpose luminaires V90/510 Luminaires V90/510 General-purpose luminaires V90/550 Centrally supplied emergency luminaires

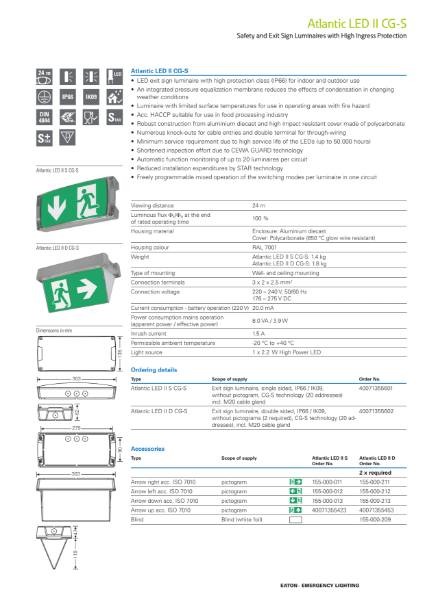

Specification data - Emergency luminaires

Luminaire description	Single sided LED safety luminaire with 24 m viewing distance.
Classification	-
Ingress protection (minimum)	IP66.
Circumstances of use	Normal.
Type	Z.
Rated maximum ambient temperature	40°C. Guidance for specification option: Permissible ambient temperature: -20°C to +40°C.
Impact protection (minimum)	IK09.
Controlgear position	Integral within luminaire.
Supply circuit conductor connections	Screw terminals. Guidance for specification option: Connection terminals: 3 x 2 x 2.5 mm².
Nominal voltage	220–240 V a.c (50/60 Hz). 176–275 V d.c.
Luminaire power factor	Not applicable.
LED luminaires	-
Initial LED luminaire efficacy (minimum)	Guidance for specification option: Light source: 1 x 2.2 W High Power LED.
Wattage	3.9 W. Guidance for specification option: Power consumption mains operation (effective power): 8.0 VA. Manufacturer guidance Power consumption mains operation (apparent power).
Useful life	High service life (up to 50 000 h). Guidance for specification option: Luminous flux at end of rated operating time, 100%.
Graphical symbol format	To BS EN ISO 7010, (emergency exit right hand). Guidance for specification option: 155-000-011. To BS EN ISO 7010, (emergency exit left hand). Guidance for specification option: 155-000-012. To BS EN ISO 7010, (emergency exit down). Guidance for specification option: 155-000-013. To BS EN ISO 7010, (emergency exit up). Guidance for specification option: 40071355423.

Inrush current	1.5 A.
Current	20 mA. Manufacturer guidance Current consumption - battery operation (220 V).
Housing	Enclosure: Aluminium diecast. Cover: Polycarbonate (850°C glow wire resistant).
Housing colour	Silver grey (RAL 7001).
Dimensions	303 x 136 x 62 mm.
Mounting	Ceiling mounted. Wall mounted.
Weight	1.4 kg.
