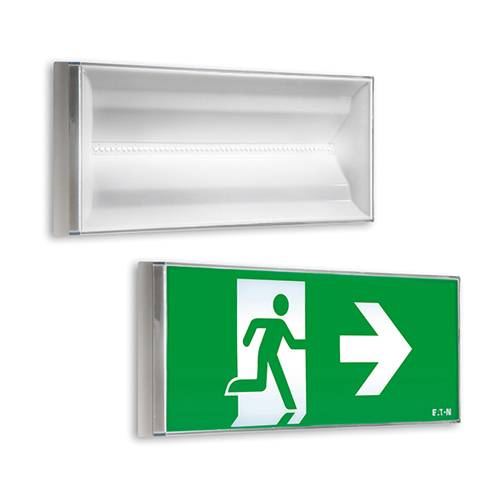

NexiTech LED CG-S - Central Battery Bulkhead

Verified by manufacturer 4 months ago

NEXI250-CGS

Eaton Electric Variant:

Central battery safety and exit sign.

Jump to:
01753 608 700 Website

Application

Exit sign.

Description

NexiTech LED is suitable for any architectural context with its modern style and simple shapes. High quality surfaces, precision of mechanics and electronics provide reliability. The latest generation of LED light source provides a good and uniform light distribution, and a wide range of accessories are available to enable installation on a wall or ceiling, surface or recessed in indoor and harsh environments, due to the IP65 protection kit. It is also possible to use it as a single or double-sided exit sign and to combine exit and safety lighting functions in one product.


Features and benefits:

  • Safety or exit sign luminaire with LED technology.
  • Combined version “Door“ specific for emergency exits' illumination.
  • Numerous knock-outs for cable entries and double terminal for through-wiring.
  • Minimum service requirement due to high service life of the LEDs (50 000 hours).
  • Shortened inspection effort due to CEWA GUARD technology.
  • Automatic function monitoring of up to 20 luminaires per circuit.
  • Freely programmable mixed operation of the switching modes per luminaire in one circuit.

General information

Color

White

Material

Polycarbonate

Shape

Rectangle

Uniclass

Pr_70_70_48_25 Emergency luminairesPrimary
Pr_70_70_48_23 Dedicated slave emergency luminaires

CAWS

V90/510 General purpose luminaires

V90/510 Luminaires

V90/510 General-purpose luminaires

V90/550 Centrally supplied emergency luminaires

Specification data - Emergency luminaires

Luminaire description

Safety or exit sign luminaire with LED technology.

Classification

-

Ingress protection (minimum)

IP40.

Circumstances of use

Normal.

Type

Z.

Rated maximum ambient temperature

40°C.

Guidance for specification option:

Permissible ambient temperature: -10°C to +40°C.

Impact protection (minimum)

IK03.

Controlgear position

Integral within luminaire.

Supply circuit conductor connections

Guidance for specification option:

Connection terminals: quick plug in terminals up to 2.5 mm² for rigid and flexible cable.

Nominal voltage

220–240 V a.c (50/60 Hz).
176–275 V d.c.

Luminaire power factor

Not applicable.

LED luminaires

-

Initial LED luminaire efficacy (minimum)

Guidance for specification option:

Light source: 29 LED (250 lm).

Wattage

4.2 W.

Guidance for specification option:

Power consumption mains operation (effective power): 7.6 VA.

Manufacturer guidance

Power consumption mains operation (apparent power).

Useful life

High service life (up to 50 000 h).

Guidance for specification option:

Luminous flux at end of rated operating time, 100%.

Graphical symbol format

-

Manufacturer guidance

Consult manufacturer's literature for details and insert requirements.

Accessories

Not required.

IP65 protection kit - NEXI-IP.

45° wall bracket (IP40/ IP65) - NEXI-WB45.

90° wall bracket (IP40/ IP65) - EL-BR1.

Bricks wall recessed base (cut-out 277 x 100 mm) - NEXI-RB.

False ceiling adapter (cut-out 272 x 95 mm) - NEXI-FC.

Design frame NexiTech LED - NEXI-FR.

Luminous flux

250 lm.

Current

25.5 mA.

Manufacturer guidance

Current consumption - battery operation (220 V).

Housing

Polycarbonate (850°C glow wire resistant).

Housing colour

White (RAL 9003).

Mounting

Wall-mounted.

Ceiling-mounted.

Surface of recessed installation in false ceiling and bricks wall.

Weight

0.45 kg.

Literature

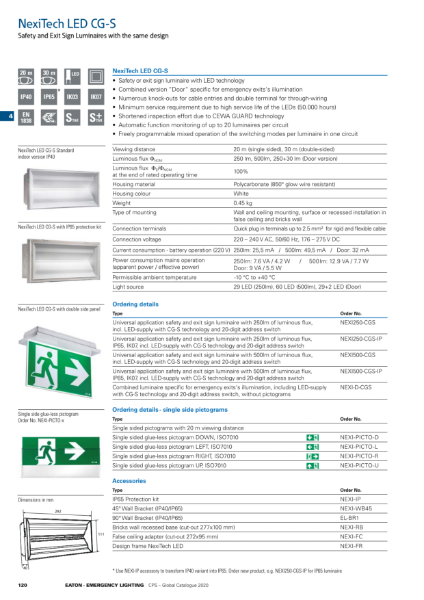

NexiTech LED CG-S

NexiTech LED CG-S
