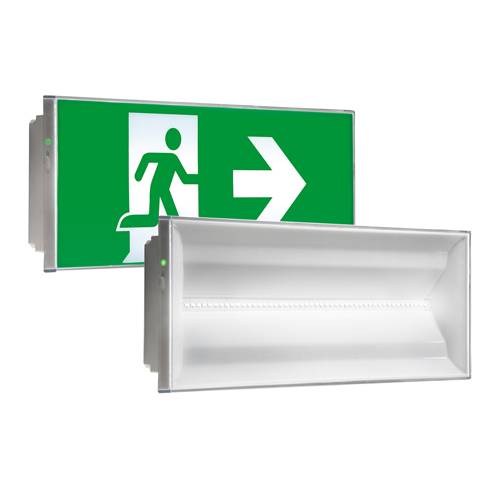

NexiTech LED CG-Line - Self-Contained Safety and Exit Sign

Verified by manufacturer 6 months ago

NEXI150-3H-AT - NexiTech LED 150 3h Auto Test

Eaton Electric Variant:
Jump to:
01753 608 700 Website

Application

  • Schools, universities, commercial malls, stores, offices, public administration and all indoor generic environments.
  • Safety anti-panic lighting and escape route lighting.
  • Hi-bay environments.

Description

NexiTech LED is suitable for any architectural context with its modern style and simple shapes. High quality surfaces, precision of mechanics and electronics provide reliability. The latest generation of LED light source provides a good and uniform light distribution, and a wide range of accessories are available to enable installation on a wall or ceiling, surface or recessed in indoor and harsh environments, due to the IP65 protection kit. It is also possible to use it as a single or double-sided exit sign and to combine exit and safety lighting functions in one product.


This range is composed of maintained and non-maintained variants, 1/1.5/3 h duration versions, from 150 lm up to 300 lm light output. The use of LEDs, automatic testing and monitoring devices (CGLine+) significantly reduce the operating and maintenance costs of the installation.


Features and benefits:

  • 20 m or 30 m with double-sided panel.
  • From 150 to 300 lm light output.
  • 3 h duration.
  • Comparable to 8, 11 and 18 W fluorescent lamp.
  • Ni-Cd HT high quality batteries.
  • Increased affordance functionality with CGLine+ technology.
  • Maintained and non-maintained mode on all versions.
  • Wall or ceiling mounting, surface or recessed installation.
  • Degree of protection IP40 and IP65.
  • Safety and exit functions combined in one luminaire with panel accessory.
  • Equipped with a self-test system that performs automatic tests in accordance with standard EN 62034 and EN 50172.

General information

Color

White

Material

Polycarbonate

Shape

Rectangle

Length

40 mm

Width

292 mm

Height

111 mm

Uniclass

Pr_70_70_48_25 Emergency luminairesPrimary
Pr_70_70_48_77 Self-contained emergency luminaires

CAWS

V90/530 Self-contained emergency luminaires

V90/510 General-purpose luminaires

V90/510 General purpose luminaires

Specification data - Emergency luminaires

Standards

To BS EN 60598-2-22.

Luminaire description

Safety and exit sign luminaire.

Classification

-

Electric shock

Class II.

Ingress protection (minimum)

IP40.

Circumstances of use

Normal.

Type

X.

Mode of operation

0.

1.

Duration of emergency mode (minimum)

60.

Guidance for specification option:

Configurable duration, 1 h, 3 h or 8 h.

Impact protection (minimum)

IK03.

Controlgear position

Integral within luminaire.

Nominal voltage

230–240 V a.c.

Guidance for specification option:

50/60 Hz.

Luminaire power factor

Not applicable.

LED luminaires

-

Initial LED luminaire efficacy (minimum)

Guidance for specification option:

Light source: LED, not exchangeable.

Wattage

7.0 W.

Guidance for specification option:

7.2 VA.

Graphical symbol format

Not required.

Pictogram down (ISO), single-side, 20 m - NEXI-PICTO-D.

Pictogram left (ISO), single-side, 20 m - NEXI-PICTO-L.

Pictogram right (ISO), single-side, 20 m - NEXI-PICTO-R.

Pictogram up (ISO), single-side, 20 m - NEXI-PICTO-U.

Double side panel, down/ down (ISO), 30 m - NEXI-PLEX-DD.

Double side panel, left/ right (ISO), 30 m - NEXI-PLEX-LR.

Double side panel, down/ blind (ISO), 30 m - NEXI-PLEX-DB.

Double side panel, up/ up (ISO), 30 m - NEXI-PLEX-UU.

Double side panel, up/ blind (ISO), 30 m - NEXI-PLEX-UB.

Accessories

Not required.

IP65 protection kit - NEXI-IP.

45° wall bracket (IP40/ IP65) - NEXI-WB45.

90° wall bracket (IP40/ IP65) - EL-BR1.

Bricks wall recessed base (cut-out 277 x 100 mm) - NEXI-RB.

False ceiling adapter (cut-out 272 x 95 mm) - NEXI-FC.

Design frame NexiTech LED - NEXI-FR.

Testing

Auto-Test.

Manufacturer guidance

Testing system.

Luminous flux

150 lm.

Manufacturer guidance

Luminous flux at emergency operation.

Batteries

NiCd battery, 3.6 V/ 2.0 Ah.

Housing

Polycarbonate.

Guidance for specification option:

  • Base and reflector white polycarbonate.
  • Diffuser clear polycarbonate.

Housing colour

White.

Mounting

Wall surface mounting.

Ceiling surface mounting.

Surface installation in false ceiling and bricks wall.

Recessed installation in false ceiling and bricks wall.

Literature

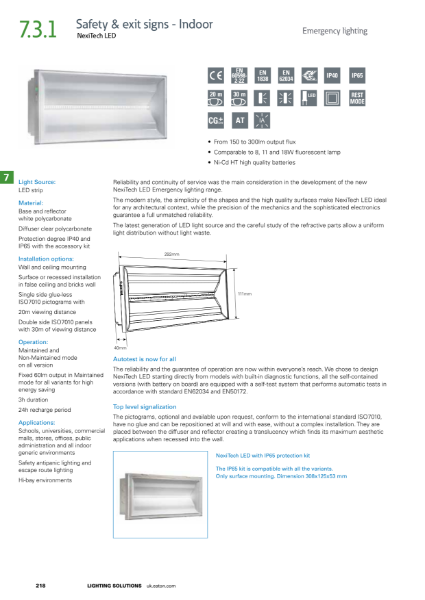

NexiTech LED CG-Line

NexiTech LED CG-Line
