Exit Cube CG-Line - Self-Contained Exit Sign Panel
Verified by manufacturer 2 months ago

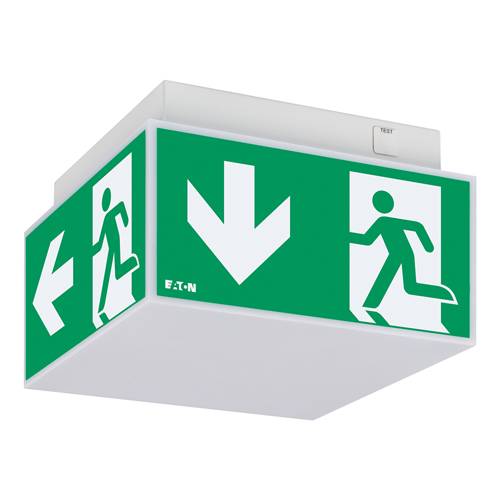

Self-contained exit cube.
Application
Suitable for indoor applications, including:
- Large wide areas.
- Warehouses.
- Retail areas.
Description
The Exit Cube with LED technology has three-sided illumination, making it suitable for large, wide areas, for example warehouses or retail areas. It offers optimal perceptibility due to high luminance of the white contrasting colour (>500 cd/m²). Easy and flexible mounting options are possible (ceiling, wall, cable and chain) by just sliding the cube onto the installed luminaire. In addition, high efficiency LEDs with a service life of 50 000 hours ensure high operational safety and also significantly minimise effort for maintenance.
Features and benefits:
- Modular design of the polycarbonate cube for simple and safe mounting by just sliding cube onto installed luminaire.
- 20 m viewing distance.
- High luminance >500 cd/m².
- Selectable duration of 1 h, 3 h, 8 h.
- Universal use for maintained and non-maintained operation.
- CGLine+ technology - reduces the operating and maintenance costs of the installation.
- Robust design with impact-resistance of IK07.
- Degree of protection IP40.
- Ceiling, wall and suspended mounting options.
- Modular design of the polycarbonate cube enables simple and safe mounting by just sliding cube onto installed luminaire.
General information
Color | White |
Material | Polycarbonate Stainless steel |
Shape | Square |
Length | 220 mm |
Width | 220 mm |
Height | 150 mm |
Uniclass | |
CAWS | V90/530 Self-contained emergency luminaires V90/510 General-purpose luminaires V90/510 General purpose luminaires |
Specification data - Emergency luminaires
Standards | To BS EN 60598-2-22. |
Luminaire description | Exit sign luminaire with 20 m viewing distance. |
Classification | |
Ingress protection (minimum) | IP40. |
Circumstances of use | Normal. |
Type | X. |
Mode of operation | 0.1. |
Duration of emergency mode (minimum) | 60.Guidance for specification option: Configurable to work for 1 h, 3 h or 8 h operation. |
Impact protection (minimum) | IK07. |
Controlgear position | Integral within luminaire. |
Nominal voltage | 220–240 V a.c (50/60 Hz). |
Luminaire power factor | Not applicable. |
LED luminaires | |
Initial LED luminaire efficacy (minimum) | Guidance for specification option: Light source: LED, not exchangeable. |
Wattage | 8.3 W.Guidance for specification option: Power consumption mains operation (effective power): 8.8 VA. Manufacturer guidancePower consumption mains operation (apparent power). |
Graphical symbol format | To BS EN ISO 7010, (emergency exit left hand, right hand, down).Guidance for specification option: Silkscreened pictograms included. |
Accessories | Not required.Wall bracket.Chain mounting kit.Cable mounting kitSilkscreened pictograms (arrow left, right, down to ISO 7010 - 40071354451. |
Batteries | 3.7 V/ 4 Ah Li-Ion. |
Housing | Polycarbonate. |
Housing colour | White. |
Dimensions | 220 x 220 x 150 mm. |
Mounting | Wall-mounted. Surface-mounted. |
Literature

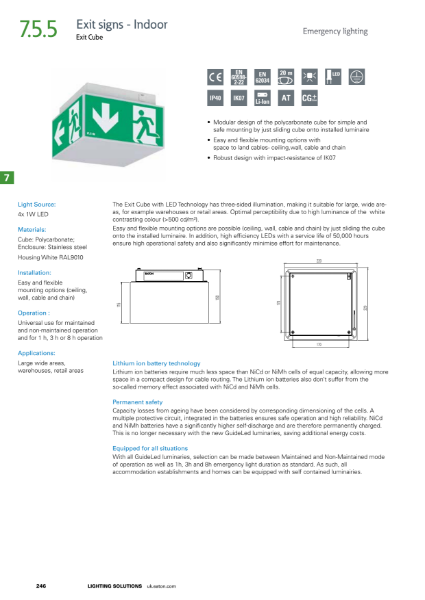

Exit Cube CG-Line - Self-Contained Exit Sign
