46811 LED (60 m) CG-Line - Safety and Exit Sign Luminaires
Verified by manufacturer 6 months ago
Self-contained 60 m safety and exit sign with high ingress protection (IP65).
Application
Developed for large areas like industrial areas, warehouses and food processing areas where the size of the building requires high viewing distances.
Description

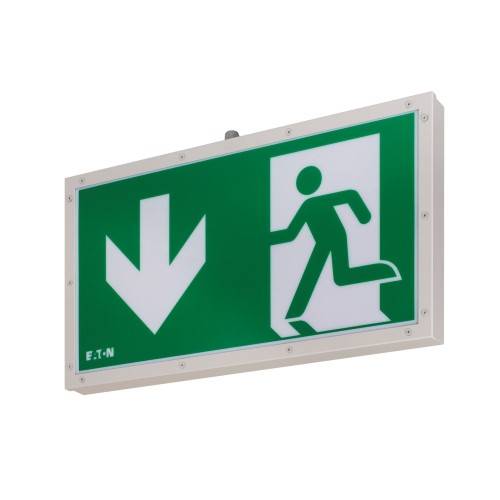

The 46811 LED is a 60 m viewing distance exit sign luminaire developed for large areas like warehouses where the size of the building requires high viewing distances. The tough construction made from sheet steel with IP65 ingress protection and IK08 tested robustness together with LiFePo batteries ensure reliable operation in industrial areas with dust or areas with high soiling. The luminaire can be configured via a switch to work for one hour or three hour emergency operation.
The 46811 HYG is equipped with a special gasket and can be used in hygienic environment like food processing areas. This has been tested and third party certified in accordance with HACCP.
Features and benefits:
- 60 metre viewing distance.
- High luminance >500 cd/m².
- LiFePo battery.
- Selectable duration of one hour and three hours.
- Robust design: IP65 and IK08.
- Sheet metal housing.
- Silk-screened pictogram.
- Wall mounting.
- The use of LEDs, automatic testing and monitoring devices (CGLine+) significantly reduces the operating and maintenance costs of the installation.
General information
Color | White |
Material | Polycarbonate Metal |
Shape | Rectangle |
Length | 61 mm Manufacturer guidanceDepth. |
Width | 654 mm |
Height | 354 mm |
Uniclass | |
CAWS | V90/530 Self-contained emergency luminaires V90/510 General-purpose luminaires V90/510 General purpose luminaires |
Specification data - Emergency luminaires
Standards | To BS EN 60598-2-22. |
Luminaire description | Exit sign luminaire. |
Classification | |
Ingress protection (minimum) | IP65. |
Circumstances of use | Normal. |
Type | X. |
Mode of operation | 1. |
Duration of emergency mode (minimum) | 60.Guidance for specification option: Configurable via a switch to work for 1 h or 3 h emergency operation. |
Impact protection (minimum) | IK08. |
Controlgear position | Integral within luminaire. |
Supply circuit conductor connections | Guidance for specification option: Supply terminals: 3 x 2 x 2.5 mm² (max. 2 A). |
Nominal voltage | 230 V a.c.Guidance for specification option: 50/60 Hz. |
Luminaire power factor | Not applicable. |
LED luminaires | |
Initial LED luminaire efficacy (minimum) | Guidance for specification option: Light source: LED, not exchangeable. |
Wattage | 11 W.Guidance for specification option: Power consumption mains operation (effective power): 15 VA. Manufacturer guidancePower consumption mains operation (apparent power). |
Graphical symbol format | Not required.Guidance for specification option: Supplied as standard without pictogram. To BS EN ISO 7010, LED cover pictogram arrow left.Guidance for specification option: 40071351587. To BS EN ISO 7010, LED cover pictogram arrow right.Guidance for specification option: 40071351588. To BS EN ISO 7010, LED cover pictogram arrow down.Guidance for specification option: 40071351589. |
Accessories | Not required.Cable gland - 40071350005.Guidance for specification option: Cable gland with ventilation membrane for outdoor areas. |
Batteries | 6.4 V/ 3.2 Ah. |
Housing | Coated sheet metal and polycarbonate. |
Housing colour | White. |
Dimensions | 654 x 354 x 61 mm. Manufacturer guidanceWidth x height x depth. |
Mounting | Wall-mounted. Surface-mounted. |
Literature

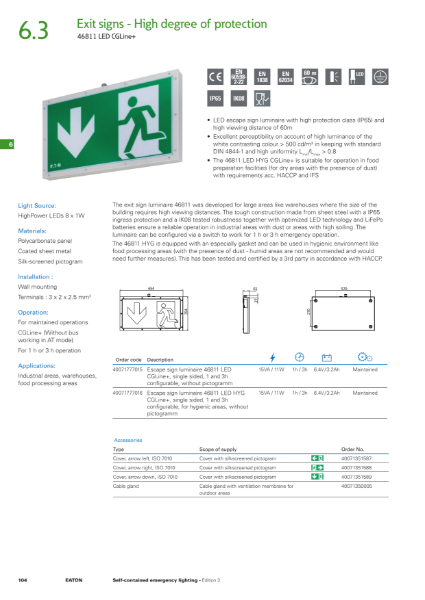

46811 LED (60 m) CGLine+
