Aritco 9000 Cabin Lift - Single Entry with Exit Doors on Long Side

Verified by manufacturer 9 months ago

Gartec Platform Lifts

The 9000 Cabin Lift - a technologically advanced Gartec lift offering “one touch” operation. Designed to meet requirements for quality, safety and service, and compliant with relevant regulations.

Jump to:
BOS
 +44 (0)1296 397100 Website

Description

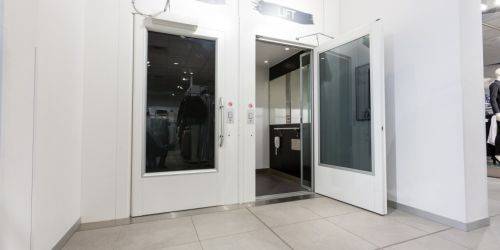

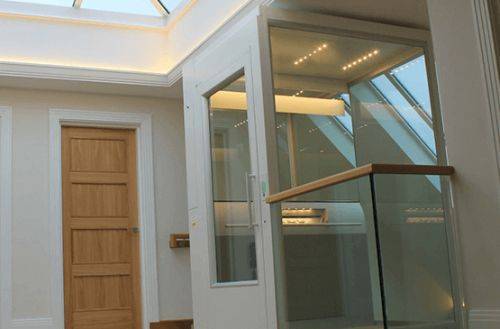

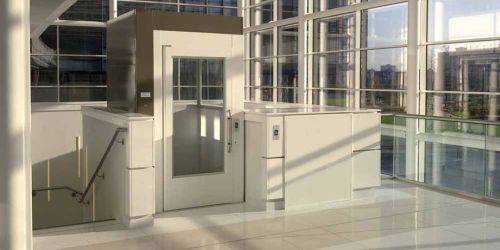

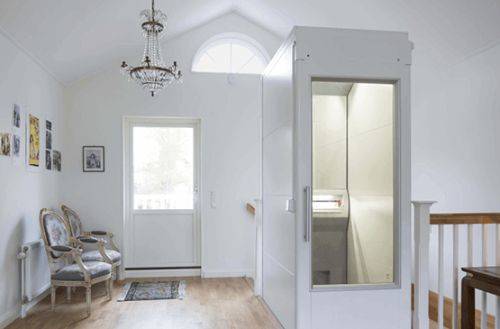

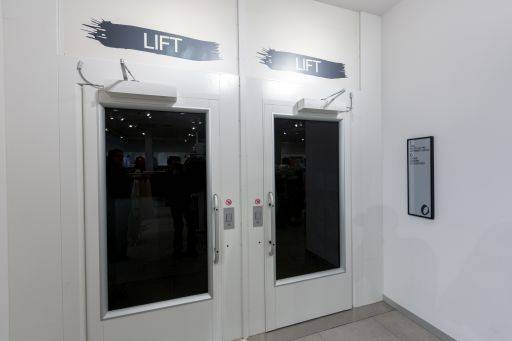

Enclosed cabin lift which is a simple, cost-effective and efficient direct replacement for a conventional elevator, making it ideal for the accessibility and disability markets. It provides a familiar lift surrounding for public areas, often used for retail lifts or shop access.

The 9000 uses a modular structure to reduce delivery and installation time, needing only a loadbearing footprint and no major building works on site.

The platform lift is completely contained within the supplied shaft and is operated using the patented nut-and-screw technology with a mast running behind the platform. The cabin lift doesn’t require a head fixing, machine room or pump box housing, meaning that a one-off installation will solve access needs immediately.

Meets the requirements of Building Regulations (E&W) Approved Document M and BS 8300, as well as helping to meet obligations under BS EN 81-41 and the Equality Act (formerly the DDA) for disabled access.

Features:

  • Up to 13 m (six stops) with up to two doors per floor.
  • Two platform lift sizes.
  • 75 mm pit or ramp.
  • 2400 mm headroom.
  • Quiet and energy-efficient.
  • 210 RAL colour and eight flooring options.
  • Single touch buttons throughout.
  • Outer door and inner bus doors.
  • Enclosed cabin – the walls move with the passenger/ platform.
  • Alarm, intercom and emergency battery lowering.

Approvals/ accreditations:

  • European machine directive 2006/42/EC.
  • ISO 9001:2008.
  • OHSAS 18001.
  • CE Marked.

General information

Color

White

Shape

Rectangle

Length

1400 mm

Width

1000 mm

Height

2100 mm

Uniclass

Pr_65_80_47_95 Vertical lifting platformsPrimary

CAWS

X12/110 Vertical lifting platform systems

Specification data - Vertical lifting platforms

Product Reference

Aritco 9000

Cabin

-

Size (w x l)

1000 x 1400 mm

Guidance for specification option:

1465 x 1630 mm structural opening.

1100 x 1400 mm

Guidance for specification option:

1565 x 1630 mm structural opening.

Handrails

Aluminium

Guidance for specification option:

Standard.

Oak

Stainless steel

Wall finish

-

Control panel wall

Beige

Birch

Black embossed dots

Guidance for specification option:

Standard.

Blue

City dark

City light

Grey

Light oak

Lime

Navy blue

Oak

Orange

Purple

Red

Silver

Stainless steel

Turquoise

Walnut

White dots

White grey

White wood

Other walls

Beige

Birch

Black embossed dots

Blue

City dark

City light

Grey

Light oak

Lime

Navy blue

Oak

Orange

Purple

Red

Silver

Stainless steel

Turquoise

Walnut

White dots

White grey

Guidance for specification option:

Standard.

White wood

Flooring

Aluminium checkerplate

Rubber, black studding

Rubber, blue studding

Vinyl, beige mineral

Vinyl, blue mineral

Vinyl, classic beech

Vinyl, European oak

Vinyl, grey mineral

Guidance for specification option:

Standard material.

Vinyl, sand mineral

Bespoke

Guidance for specification option:

Consult manufacturer and insert requirement.

Communication

Autodialler

Intercom

Telephone

Guidance for specification option:

Standard.

Shaft

-

Construction

Insulated vinyl-coated double-skinned steel panels

Guidance for specification option:

Standard.

Toughened and laminated glazed panels

Guidance for specification option:

Available in up to 2500 mm high.

Colour

Clear glass (JT0)

Guidance for specification option:

For glazed panels.

Dark-tinted glass (JT5)

Guidance for specification option:

For glazed panels.

Frost glass (JT23)

Guidance for specification option:

For glazed panels.

RAL 9016

Guidance for specification option:

Standard, white.

RAL

Guidance for specification option:

Insert colour requirement, for steel panels.

Tinted glass (JT16)

Guidance for specification option:

For glazed panels.

Doors

-

Type

Fire doors

Guidance for specification option:

60 minutes' fire and smoke resistance.

GL

Guidance for specification option:

Standard, glass and steel door with concealed door closer.

Arrangement

As drawing

Guidance for specification option:

Insert reference, available up to two sides per floor.

Operation

Automatic

Guidance for specification option:

Opens when call button is pressed.

Manual, concealed door closer

Guidance for specification option:

Standard.

Colour

RAL 9016

Guidance for specification option:

Standard, white.

RAL

Guidance for specification option:

Insert colour requirement.

Glazing

Clear glass (JT0)

Guidance for specification option:

Standard.

Dark-tinted glass (JT5)

Frost glass (JT23)

Tinted glass (JT16)

Handles

Aluminium

Guidance for specification option:

Standard.

Stainless steel

Accessories

None

Bump rail

Door key switch

Landing call station

Lift position indicators on landings

Platform destination indicator

Ramped lift entry

Wireless remote call stations

Mirrors, both sides of cabin control panel

Mirrors, side wall

Standard product features

Destination buttons:

Braille, complies with BS EN 81-41.

Size:

  • Cabin height: 2100 mm.
  • Door width: 900 mm.
  • Travel height: 2150–13 000 mm.
  • Top height: 2400 mm.

Technical properties:

  • Drive system: Self-sustaining patented screw/ nut system.
  • Rated speed (maximum): 0.15 m/s.
  • Landing control: One-touch call.
  • Platform control: One-touch run.
  • Rated load: 400 kg/five persons.
  • Number of stops (maximum): Six.
  • Number of doors (maximum): Two doors per floor.
  • Pit: 75 mm (not required with 75 mm ramp).
  • Power: Three-phase, 400 V, 50 Hz, 18 A supply.
  • Emergency lowering: Automatic lowering from car.
  • Control supply: 24 V.
  • Motor: 3 kW.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

4

IFC

IFC2X3

3

Literature

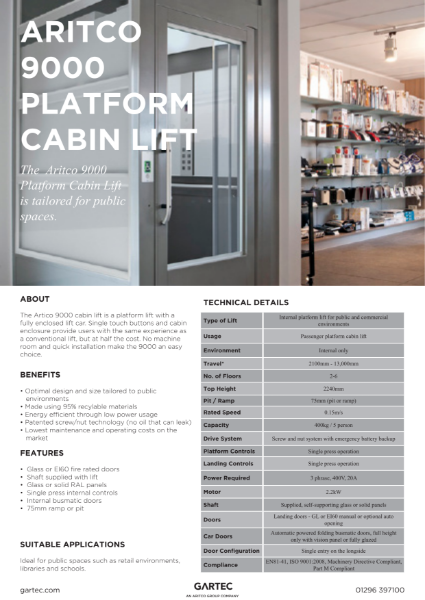

Gartec Aritco 9000 Platform Cabin Lift – Product Data Sheet
