Aritco 7000 Passenger Platform Lift - Same Side Entry and Exit Fire Doors

Verified by manufacturer over a year ago

Gartec Platform Lifts

The Aritco 7000 platform lift - ideal for commercial environments, offering security and minimal disruption once it is installed.

Jump to:
BOS
+44 (0)1296 397100 Website

Description

Passenger platform lift designed to complement any commercial or public environment. The 7000 platform lift is most popular for use in schools, office blocks, hospitals, care homes and retail shops due to its size and easy compliance with the Equality Act (DDA) for wheelchair and disabled access.

The patented screw-and-nut drive system in the 7000 platform lift offers a safe, quiet and environmentally friendly solution, running up a mast behind the platform.

Completely self-contained, the 7000 eliminates the need for a separate machine room or pump box housing, and doesn't need a head fixing, ideal for restricted or listed buildings. Operation inside the lift is by continuous pressure, and outside using a single touch-button to call the lift to the floor.

Meets the requirements of Building Regulations (E&W) Approved Document M and BS 8300, as well as helping to meet obligations under BS EN 81-41 and the Equality Act (formerly the DDA).

Features:

  • Up to 13 m (six stops) with up to two doors per floor.
  • Eight platform sizes.
  • Internal installation.
  • Safety edge, alarm system and telephone.
  • Emergency battery lowering.
  • Small footprint.
  • Quiet and energy-efficient.
  • 210 RAL colour and four glass shaft options.
  • 50 mm pit or ramp.

Approvals/ accreditations:

  • European machine directive 2006/42/EC.
  • ISO 9001:2008.
  • OHSAS 18001.
  • CE Marked.

General information

Shape

Rectangular

Color

White, grey, natural metal

Finish

Powder coated

Size

1040 x 900 mm platform

Uniclass

Pr_65_80_47_95 Vertical lifting platformsPrimary

CAWS

X12/110 Vertical lifting platform systems

Specification data - Vertical lifting platforms

Product Reference

Aritco 7000

Platform

-

Size (w x l)/ rated load

900 x 1040 mm, 410 kg

Guidance for specification option:

1275 x 1160 mm shaft size, 1305 x 1190 mm structural opening.

900 x 1280 mm, 410 kg

Guidance for specification option:

1275 x 1400 mm shaft size, 1305 x 1430 mm structural opening.

900 x 1480 mm, 410 kg

Guidance for specification option:

1275 x 1600 mm shaft size, 1305 x 1630 mm structural opening.

900 x 1480 mm, 500 kg

Guidance for specification option:

1275 x 1600 mm shaft size, 1305 x 1630 mm structural opening.

1000 x 1280 mm, 410 kg

Guidance for specification option:

1375 x 1400 mm shaft size, 1405 x 1430 mm structural opening.

1000 x 1480 mm, 410 kg

Guidance for specification option:

1375 x 1600 mm shaft size, 1405 x 1630 mm structural opening.

1000 x 1480 mm, 500 kg

Guidance for specification option:

1375 x 1600 mm shaft size, 1405 x 1630 mm structural opening.

1000 x 1980 mm, 500 kg

Guidance for specification option:

1375 x 2100 mm shaft size, 1405 x 2130 mm structural opening.

1100 x 1480 mm, 410 kg

Guidance for specification option:

Standard, 1475 x 1600 mm shaft size, 1505 x 1630 mm structural opening.

1100 x 1580 mm, 500 kg

Guidance for specification option:

1475 x 1700 mm shaft size, 1505 x 1730 mm structural opening.

Console height

1100 mm

Guidance for specification option:

Standard.

2200 mm

Handrails

Aluminium

Guidance for specification option:

Standard.

Stainless steel

Flooring

Aluminium checkerplate

Rubber, black studding

Rubber, blue studding

Vinyl, beige mineral

Vinyl, blue mineral

Vinyl, classic beech

Vinyl, European oak

Vinyl, grey mineral

Guidance for specification option:

Standard material.

Vinyl, sand mineral

Bespoke

Guidance for specification option:

Consult manufacturer and insert requirement.

Destination buttons

Braille

Guidance for specification option:

Complies with BS EN 81-41.

Tactile

Guidance for specification option:

Standard, complies with BS EN 81-41.

Communication

Autodialler

Intercom

Telephone

Guidance for specification option:

Standard.

Shaft

-

Construction

Insulated vinyl coated double skinned steel panels

Guidance for specification option:

Standard.

Toughened and laminated glazed panels

Guidance for specification option:

Available in up to 2500 mm high.

Colour

Clear glass (JT0)

Guidance for specification option:

For glazed panels.

Dark-tinted glass (JT5)

Guidance for specification option:

For glazed panels.

Frost glass (JT23)

Guidance for specification option:

For glazed panels.

RAL 9016

Guidance for specification option:

Standard, white.

RAL

Guidance for specification option:

Insert colour requirement, for steel panels.

Tinted glass (JT16)

Guidance for specification option:

For glazed panels.

Doors

-

Type

Double-hinged

Guidance for specification option:

Automatic.

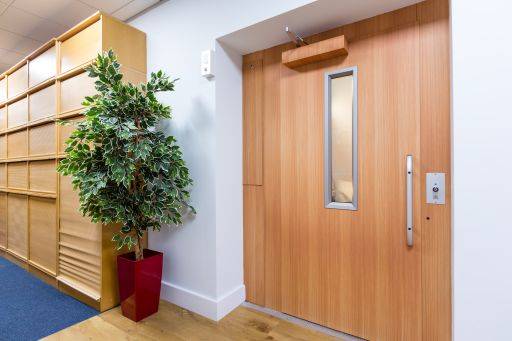

Fire doors

Guidance for specification option:

60 minutes' fire and smoke resistance.

GL

Guidance for specification option:

Standard, glass and steel door with concealed door closer.

HG

Guidance for specification option:

Half height, under 2 m travel only.

Arrangement

As drawing

Guidance for specification option:

Insert reference, available up to two sides per floor.

Operation

Automatic

Guidance for specification option:

Opens when call button is pressed.

Manual, concealed door closer

Guidance for specification option:

Standard.

Colour

RAL 9016

Guidance for specification option:

Standard, white.

RAL

Guidance for specification option:

Insert colour requirement.

Glazing

Clear glass (JT0)

Guidance for specification option:

Standard.

Dark-tinted glass (JT5)

Frost glass (JT23)

Tinted glass (JT16)

Handles

Aluminium

Guidance for specification option:

Standard.

Stainless steel

Accessories

None

Door key switch

External alarm

Fold-down seat

Landing call station

Lift position indicators on landings

Platform destination indicator

Ramped lift entry

Shaft lighting - LED

Wireless remote call stations

Standard product features

Size:

  • Door height: 2000 mm.
  • Door width: 800/ 900 mm.
  • Travel height: 2150–13 000 mm.
  • Top height full door: 2240 mm.
  • Top height half door: 1100 mm.

Technical properties:

  • Drive system: Self-sustaining patented screw/ nut system.
  • Rated speed (maximum): 0.15 m/s.
  • Landing control: One-touch call.
  • Platform control: Hold to run.
  • Technical compliance: European machine directive 2006/42/EC.
  • Number of stops (maximum): Six.
  • Number of doors (maximum): Two doors per floor.
  • Pit: 50 mm (not required with ramp).
  • Emergency lowering: Manual.
  • Control supply: 24 V.
  • Motor: 2.2 kW.

Product Options

Size (w x l)/ rated load:

- Power:

  • 410 kg rated load: Single-phase, 230 V, 20 A supply.
  • 500 kg rated load: Three-phase, 400 V, 50 Hz, 18 A supply

Three-phase power supply can be provided for 410 kg rated load models on request; consult manufacturer for details.
