Aritco 7000 Flexi Light Goods and Passenger Lift

Verified by manufacturer over a year ago

Gartec Platform Lifts

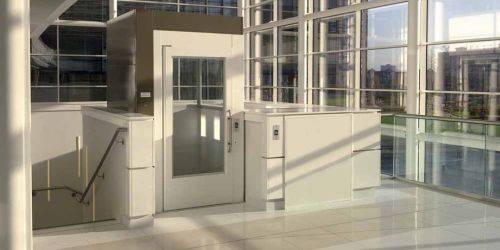

Light goods and passenger platform lift with trolley protection kerb.

Jump to:
+44 (0)1296 397100 Website

Description

A platform lift which can be used as both a light goods lift and a passenger platform lift, meaning safe transportation between floors. The 7000 Flexi light goods lift is popular in back of house at retail, shops, restaurants, faith buildings, libraries and warehouses, reducing manual handling and improving efficiency.

The call-and-send function is ideal for goods, meaning that no attendant is required. The 7000 Flexi uses a modular structure to reduce delivery and installation time, needing only a load bearing footprint and no major building works on site, with simple commissioning to use as a goods lift.

The platform lift is completely contained within the supplied shaft, and operated using our patented nut-and-screw technology with a mast running behind the platform. Does not require a machine room, head fixing or pump box housing, meaning that a one-off installation will solve access needs immediately.

Meets the requirements of Building Regulations (E&W) Approved Document M and BS 8300, as well as helping to meet obligations under BS EN 81-41 and the Equality Act (formerly the DDA).

Features:

  • Up to 13 m (six stops) with up to two doors per floor.
  • Eight platform lift sizes.
  • Internal installation.
  • Steel curb and higher load capacity.
  • Quiet and energy-efficient.
  • 210 RAL colour options.
  • 50 mm pit or ramp.
  • Call and send function.
  • Telephone, alarm and safety edge.
  • Emergency battery lowering.

Approvals/ accreditations:

  • European machine directive 2006/42/EC.
  • ISO 9001:2008.
  • OHSAS 18001.
  • CE Marked.

General information

Size

Door height: 2000 mm

Door width: 800/ 900 mm

Travel height: 2150–13 000 mm

Top height: 2240 mm

Uniclass

Pr_65_80_47_95 Vertical lifting platformsPrimary

CAWS

X12/110 Vertical lifting platform systems

Specification data - Vertical lifting platforms

Product Reference

Aritco 7000 Flexi

Platform

-

Size (w x l)/ rated load

900 x 1040 mm, 410 kg

Guidance for specification option:

1275 x 1160 shaft size, 1305 x 1190 mm structural opening.

900 x 1280 mm, 410 kg

Guidance for specification option:

1275 x 1400 shaft size, 1305 x 1430 mm structural opening.

900 x 1480 mm, 410 kg

Guidance for specification option:

1275 x 1600 shaft size, 1305 x 1630 mm structural opening.

900 x 1480 mm, 500 kg

Guidance for specification option:

1275 x 1600 shaft size, 1305 x 1630 mm structural opening.

1000 x 1280 mm, 410 kg

Guidance for specification option:

1375 x 1400 shaft size, 1405 x 1430 mm structural opening.

1000 x 1480 mm, 410 kg

Guidance for specification option:

1375 x 1600 shaft size, 1405 x 1630 mm structural opening.

1000 x 1480 mm, 500 kg

Guidance for specification option:

1375 x 1600 shaft size, 1405 x 1630 mm structural opening.

1000 x 1980 mm, 500 kg

Guidance for specification option:

1375 x 2100 shaft size, 1405 x 2130 mm structural opening.

1100 x 1480 mm, 410 kg

Guidance for specification option:

Standard, 1475 x 1600 shaft size, 1505 x 1630 mm structural opening.

1100 x 1480 mm, 500 kg

Guidance for specification option:

Standard, 1475 x 1600 shaft size, 1505 x 1630 mm structural opening.

1100 x 1580 mm, 500 kg

Guidance for specification option:

1475 x 1700 shaft size, 1505 x 1730 mm structural opening.

Console height

1100 mm

Guidance for specification option:

Standard.

2200 mm

Guidance for specification option:

Full height console with mirror.

Handrails

Aluminium

Guidance for specification option:

Standard.

Stainless steel

Flooring

Aluminium checkerplate

Rubber, black studding

Rubber, blue studding

Vinyl, beige mineral

Vinyl, blue mineral

Vinyl, classic beech

Vinyl, European oak

Vinyl, grey mineral

Guidance for specification option:

Standard material.

Vinyl, sand mineral

Bespoke

Guidance for specification option:

Consult manufacturer and insert requirement.

Destination buttons

Braille

Guidance for specification option:

Complies with BS EN 81-41.

Tactile

Guidance for specification option:

Standard, complies with BS EN 81-41.

Communication

Autodialler

Intercom

Telephone

Guidance for specification option:

Standard.

Shaft

-

Construction

Insulated vinyl coated double-skinned steel panels

Toughened and laminated glazed panels

Colour

Clear glass (JT0)

Guidance for specification option:

For glazed panels.

Dark-tinted glass (JT5)

Guidance for specification option:

For glazed panels.

Frost glass (JT23)

Guidance for specification option:

For glazed panels.

RAL 9016

Guidance for specification option:

Standard, white.

RAL

Guidance for specification option:

Insert colour requirement, for steel panels.

Tinted glass (JT16)

Guidance for specification option:

For glazed panels.

Doors

-

Type

Double-hinged

Guidance for specification option:

Automatic.

Fire doors

Guidance for specification option:

60 minutes' fire and smoke resistance.

GL

Guidance for specification option:

Standard, glass and steel door with concealed door closer.

HG

Guidance for specification option:

Half height, under 2 m travel only.

Arrangement

As drawing

Guidance for specification option:

Insert reference, available up to two sides per floor.

Operation

Automatic

Guidance for specification option:

Opens when call button is pressed.

Manual, concealed door closer

Guidance for specification option:

Standard.

Colour

RAL 9016

Guidance for specification option:

Standard, white.

RAL

Guidance for specification option:

Insert colour requirement.

Glazing

Clear glass (JT0)

Guidance for specification option:

Standard.

Dark-tinted glass (JT5)

Frost glass (JT23)

Tinted glass (JT16)

Handles

Aluminium

Guidance for specification option:

Standard.

Stainless steel

Accessories

None

Door key switch

Fold-down seat

Landing call station

Lift position indicators on landings

Platform destination indicator

Ramped lift entry

Shaft lighting

Wireless remote call stations

Standard product features

Size:

  • Door height: 2000 mm.
  • Door width: 800/ 900 mm.
  • Travel height: 2150–13 000 mm.
  • Top height: 2240 mm.

Technical properties:

  • Drive system: Self-sustaining patented screw/ nut system.
  • Rated speed (maximum): 0.15 m/s.
  • Landing control: One-touch call.
  • Platform control: Hold to run.
  • Number of stops (maximum): Six.
  • Number of doors (maximum): Two doors per floor.
  • Pit: 50 mm (not required with ramp).
  • Emergency lowering: Manual.
  • Control supply: 24 V.
  • Motor: 2.2 kW.

Product Options

Size (w x l)/ rated load:

- Power:

  • 410 kg rated load: Single-phase, 230 V, 20 A supply.
  • 500 kg rated load: Three-phase, 400 V, 50 Hz, 18 A supply

Three-phase power supply can be provided for 410 kg rated load models on request; consult manufacturer for details.
