Aritco 6000 Residential Passenger Platform Lift

Verified by manufacturer over a year ago

Gartec Platform Lifts

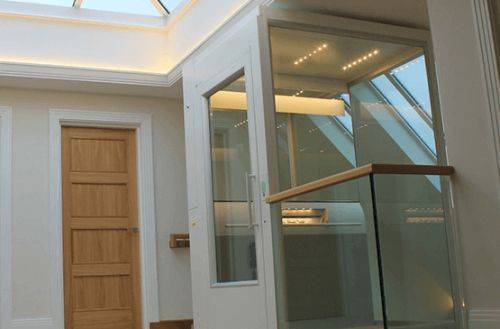

Residential passenger platform lift, wheelchair suitable.

Jump to:
+44 (0)1296 397100 Website

Description

Functional passenger platform lift with sizes suitable for up to five people and a wheelchair, and with higher loadings available for motorized wheelchairs. A range of style options are available.

The platform lift is completely contained within the shaft and operated using the patented screw and nut technology, with a mast running behind the platform, making it an incredibly safe lift for the home. The lift doesn’t require a head fixing, machine room or pump box housing.

Meets the requirements of Building Regulations (E&W) Approved Document M and BS 8300, as well as helping to meet obligations under BS EN 81-41 and the Equality Act (formerly the DDA).

Features:

  • Up to 13 m (six stops) with up to two doors per floor.
  • Six platform lift sizes.
  • Load rated to 410 kg (five people/ wheelchair and attendant).
  • 50 mm pit or ramp.
  • Quiet and energy-efficient.
  • 210 RAL colour and four glass shaft options.
  • Safety edge, telephone and alarm system.
  • Emergency battery lowering.

Approvals/ accreditations:

  • 2006/42/EC.
  • ISO 9001:2008.
  • OHSAS 18001.
  • CE Marked.

General information

Size

Door height: 2000 mm

Door width: 800/ 900 mm

Travel height: 2150–13 000 mm

Top height full door: 2240 mm

Top height half door: 1100 mm

Uniclass

Pr_65_80_47_95 Vertical lifting platformsPrimary

CAWS

X12/110 Vertical lifting platform systems

Specification data - Vertical lifting platforms

Product Reference

Aritco 6000

Platform

-

Platform size (w x l)

900 x 1040 mm

Guidance for specification option:

1275 x 1160 shaft size, 1305 x 1190 mm structural opening.

900 x 1280 mm

Guidance for specification option:

1275 x 1400 shaft size, 1305 x 1430 mm structural opening.

900 x 1480 mm

Guidance for specification option:

1275 x 1600 shaft size, 1305 x 1630 mm structural opening.

1000 x 1280 mm

Guidance for specification option:

1375 x 1400 shaft size, 1405 x 1430 mm structural opening.

1000 x 1480 mm

Guidance for specification option:

1375 x 1600 shaft size, 1405 x 1630 mm structural opening.

1100 x 1480 mm

Guidance for specification option:

Standard, 1475 x 1600 shaft size, 1505 x 1630 mm structural opening.

Console height

1100 mm

Guidance for specification option:

Standard.

2000 mm

Guidance for specification option:

Full height with mirror and light.

Handrails

Aluminium

Guidance for specification option:

Standard.

Stainless steel

Flooring

Rubber, black check

Rubber, black studding

Rubber, grey check

Rubber, grey studding

Rubber, red check

Guidance for specification option:

Standard material.

Vinyl, classic walnut

Guidance for specification option:

Standard material.

Vinyl, European oak

Guidance for specification option:

Standard material.

Vinyl, grey

Guidance for specification option:

Standard material.

Vinyl, oiled oak

Guidance for specification option:

Standard material.

Bespoke

Guidance for specification option:

Consult manufacturer and insert requirement.

Communication

Autodialler

Intercom

Telephone

Guidance for specification option:

Standard.

Destination button lettering

Guidance for specification option:

Insert requirements. Maximum of ten letters per floor.

Shaft

-

Construction

Insulated vinyl-coated double-skinned steel panels

Guidance for specification option:

Standard.

Toughened and laminated glazed panels

Guidance for specification option:

Available in up to 2500 mm high.

Colour

Clear glass (JT0)

Guidance for specification option:

For glazed panels.

Dark-tinted glass (JT5)

Guidance for specification option:

For glazed panels.

Frost glass (JT23)

Guidance for specification option:

For glazed panels.

RAL 9016

Guidance for specification option:

Standard, white.

RAL

Guidance for specification option:

Insert colour requirement, for steel panels.

Tinted glass (JT16)

Guidance for specification option:

For glazed panels.

Doors

-

Type

Double hinged

Guidance for specification option:

Automatic.

Fire doors

Guidance for specification option:

60 minutes resistance.

GL

Guidance for specification option:

Standard, glass and steel door with concealed door closer.

HG

Guidance for specification option:

Half height.

Arrangement

As drawing

Guidance for specification option:

Insert reference, available up to two sides per floor.

Operation

Automatic

Guidance for specification option:

Opens when call button is pressed.

Manual, concealed door closer

Guidance for specification option:

Standard.

Colour

RAL 9016

Guidance for specification option:

Standard, white.

RAL

Guidance for specification option:

Insert colour requirement.

Glazing

Clear glass (JT0)

Guidance for specification option:

Standard.

Dark-tinted glass (JT5)

Frost glass (JT23)

Tinted glass (JT16)

Handles

Aluminium

Guidance for specification option:

Standard.

Stainless steel

Threshold

Aluminium

Galvanized steel, painted, RAL

Guidance for specification option:

Matched to door colour.

Oak

Call station

Stainless steel

White

Guidance for specification option:

Standard.

Accessories

None

Door key switch

External alarm

LED lighting

Platform destination indicator

Platform mirror with full height console

Platform seat

Ramped lift entry

Standard product features

Size:

  • Door height: 2000 mm.
  • Door width: 800/ 900 mm.
  • Travel height: 2150–13 000 mm.
  • Top height full door: 2240 mm.
  • Top height half door: 1100 mm.

Technical properties:

  • Drive system: Self-sustaining patented screw/ nut system.
  • Rated speed (maximum): 0.15 m/s.
  • Landing control: One touch call.
  • Platform control: Hold to run.
  • Technical compliance: European machine directive 2006/42/EC.
  • Rated load: 410 kg/ five persons.
  • Number of stops (maximum): Six.
  • Number of doors (maximum): Two doors per floor.
  • Pit: 50 mm (not required with ramp).
  • Power: Single-phase, 230 V, 50 Hz, 20 A supply.
  • Emergency lowering: Manual.
  • Control supply: 24 V.
  • Motor: 2.2 kW.
