Application

Application Instructions

Joint Preparation

The joint surfaces must be clean, dry and free from all contamination. Use ARBO Cleaners as appropriate. ARBO Primer 2650 is required on some substrates. Contact ARBO Technical Services for specific advice regarding primer and cleaner.

Joint Backing

Mineral wool or closed cell, cross-linked polyethylene foam.

Joint Size Suitability

Joint width

Minimum 6mm Maximum 25mm (single application) for advice on multiple applications please contact ARBO Technical Services.

All joint preparation, priming, and sealant application should be carried out in accordance with BS 8000 Part1 –6: 1997 + A1: 2010 the British Standard for the sealing of joints in buildings using sealants.

Ensure all use of Arbosil 1071 is within the scope of the fire tests and accords with joint seal dimensions, backing materials and any other considerations necessary to achieve a specific level of fire integrity. Copies of fire test reports are freely available from ARBO Technical Services.

Packaging

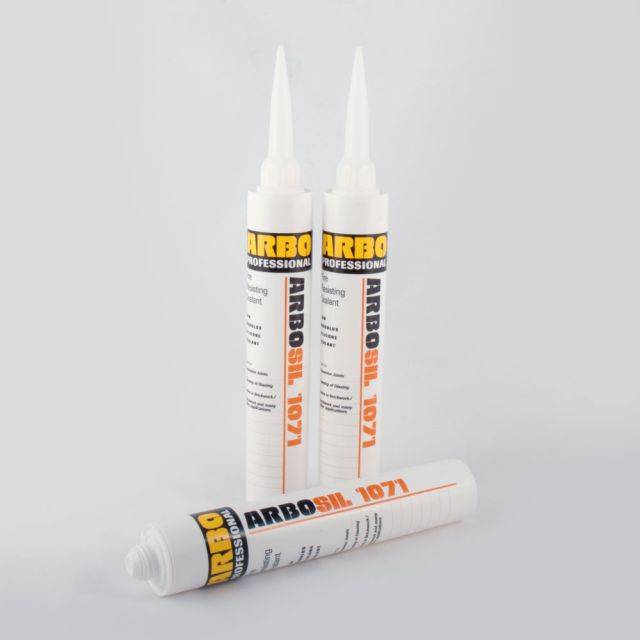

25 x 380ml Polyethylene Cartridges per box. Polyethylene Nozzles are included in each box

Important: The information is given in good faith and based on results gained from experience and tests. However, all recommendations or suggestions are made without guarantee since the conditions of use are beyond our control. It is the user and specifier’s responsibility to ensure ARBO product is suitable for the intended use: consult ARBO Technical Services for specific advice. Goods are supplied subject to the Company’s terms and conditions of sales, a copy of which is available on request.

Description

Used in expansion joints and other details to prevent the passage of fire. Recommended for use in sports stadiums where a fire seal is required. Fire resistance of up to 4 hours has been independently verified (details available on request from ARBO® Technical Services).

Features and benefits:

  • Good adhesion to concrete, metals, and many other common building substrates.
  • Very good UV resistance.
  • Anticipated service life in excess of 25 years.
  • BS EN ISO 11600 – F/G – 25 LM
  • Typical Shore Hardness: 20
  • Application Temperature: +5˚C to + 50˚C
  • Service Temperature: -50°C to + 120°C
  • Skin Time at 20ºC at 65 % RH: 45 minutes
  • Movement Accommodation: Butt joints (movement in tension and compression): 50%.
  • Lap joints (movement in shear): 100%
  • Not recommended for trafficked floor joints, overpainting, or use against natural stone.

General information

Color

White

Other

Manufacturer guidance

Special colours made to order. Consult manufacturer and insert requirements.

Material

Silicone

Rubber

Shape

Formless

Warranty description

25 year

Uniclass

Pr_30_31_76_77 Silicone construction joint sealantsPrimary

CAWS

L20/820 Sealant joints

P12/390 Sealants

P12/47 Sealants

SKU Code

1071

Product range

Sealants and Facades
Intumescent Sealants

Specification data - Silicone construction joint sealants

Standard

To BS EN ISO 11600; German DIN 18540 Class E; German DIN 4102 B1, Part 1 and US Federal TT-S-00 1543A Class A.

Colour

White.

Manufacturer guidance

Special colours made to order. Consult manufacturer and insert requirements.

Fire performance

-

Fire resistance

Fire integrity in excess of 4 hours.

Manufacturer guidance

See Warrington Fire Research Centre Warres Report No. 122635.

Accessories

None.

Arbo Primer 2172.

Arbo Primer 2402.

Arbo Primer 2650.

Arbo Cleaner No.17.

Guidance for specification option:

Xylene based; not suitable for use with plastics or delicate finishes.

Show more

Application temperature

+5 to +50°C.

Service temperature

-40 to +100°C.

Hardness (shore A)

20.

Working time

Skinning time at 20°C and 65% relative humidity: 30 minutes.

Cure time

2 mm per 24 hours at 20°C and 65% relative humidity.

Chemical resistance

Resistant to most dilute acids and alkalis; organic solvents may cause the sealant to swell and lose adhesion, but do not directly dissolve the sealant.

UV resistance

Very good.

Anticipated service life

25 years+.

Compression strength

Butt joints (movement in tension and compression): 50%.

ShearStrength

Lap joints (movement in shear): 100%.

Joint width

6 mm (minimum single application); 25 mm (maximum single application).

Guidance for specification option:

Joint depth:

  • Minimum: 10 mm.
  • Maximum: 25 mm.


Manufacturer guidance

For multiple applications, contact Adshead Ratcliffe Technical Services.

Sustainability data

Material

Silicone
Rubber

Literature

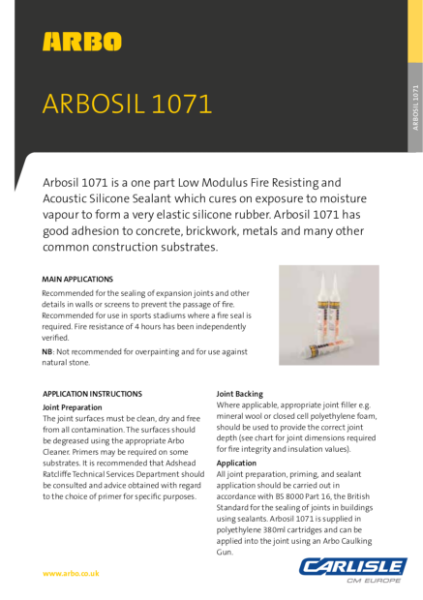

Technical Data-Sheet
