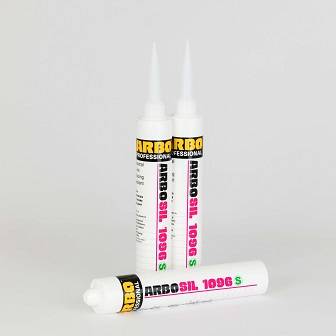

Arbosil 1096 S

Verified by manufacturer 1 day ago

Carlisle Construction Materials Limited

Arbosil 1096 S is a one-part Low Modulus Neutral Cure Silicone Sealant which cures on exposure to moisture vapour to form an elastic silicone rubber.

Jump to:
+44 (0)1623 627285 Website

Application

Recommended for use in many forms of construction including glass to glass joints, curtain wall assemblies, perimeter seals on curtain walling, perimeter sealing of polyester powder coated and PVCu frames and glazing of windows in swimming pool buildings. Suitable for use as a weather seal with structural glazed assemblies.

NB: It is not recommended for overpainting and use against natural stone.

Joint Size Suitability

Joint width

Minimum 6mm.

Maximum 25mm (single application); 50mm (multiple applications).

Joint depth

Minimum 10mm on porous substrates. Minimum 6mm on non-porous substrates.

Maximum 15mm.

Packaging

25 x 380ml Polyethylene Cartridges per box. Polyethylene Nozzles are included in each box.

Important: The information is given in good faith and based on results gained from experience and tests. However, all recommendations or suggestions are made without guarantee since the conditions of use are beyond our control. It is the user and specifier’s responsibility to ensure ARBO product is suitable for the intended use: consult ARBO Technical Services for specific advice. Goods are supplied subject to the Company’s terms and conditions of sales, a copy of which is available on request.

Description

Arbosil 1096 S is a one-part Low Modulus Neutral Cure Silicone Sealant which cures on exposure to moisture vapour to form an elastic silicone rubber.

Colours:

White

Black

Grey,

Translucent

Anthracite,

Mahogany,

RAL7016

Skin Time at 20ºC at 65 % RH: 8-12 minutes

Application Temperature: + 5ºC to + 50ºC

Service Temperature: - 50ºC to + 150ºC

Typical Shore Hardness: 25 - 30

Cure Rate at 20 ºC/ 65 % RH: 2mm/24 hours

Chemical Resistance: Resistant to most dilute acids and alkalis. Organic solvents may cause the sealant to swell and lose adhesion.

UV Resistance: Very good

Service Life: 25 years +

Movement Accommodation: Butt joints (movement in tension and compression): 50 %.

Lap joints (movement in shear): 100 %.

General information

Color

Black

Grey

White

Other

Material

Silicone

Shape

Formless

Uniclass

Pr_30_31_76_77 Silicone construction joint sealantsPrimary

CAWS

F11/121 Sealant jointed glass block walling

F11/15 Mortar jointed, sealant pointed glass block walling

F11/410 Perimeter/ Expansion joints with sealant

H11/772 Curtain walling joint assembly sealants

H11/777 Weathersealing for structural sealant/ bonded glazing

H13/740 Sealant joints

H20/10 Sheet cladding

H20/150 Sheet cladding (attached to metal support systems)

H92/770 General sealants

L10/75 Sealant joints

L10/810 Sealant joints

L20/80 Sealant joints

L20/820 Sealant joints

L40/190 Glass-to-glass jointing – by performance

L40/195 Glass-to-glass jointing – proprietary

SKU Code

1096

Product range

Sealants and Facades
Silicone Sealants / Low Modulus

Specification data - Silicone construction joint sealants

Standard

To BS EN ISO 11600.

Class

F-25LM.

Colour

Black.
Grey.
Mahogany.
Translucent.
White.

Accessories

None.

Joint backing: Closed cell foam polyethylene rod.

Joint backing: Fibre-board with bond breaker tape.

Primer: Arbo Primer 2402.

Guidance for specification option:

Required for stainless and galvanized steel.

Primer: Arbo Primer 2650.

Guidance for specification option:

Required for brickwork, concrete and stained timber frames.

Application temperature

+5 to +50°C.

Curing time

7–14 days.

Guidance for specification option:

Depending on joint configuration and atmospheric conditions.

Joint width

6 mm (minimum); 25 mm (maximum); 60 mm (multiple applications).

Guidance for specification option:

Joint depth:


  • Porous substrates: 10 mm (minimum); 15 mm (maximum).
  • Non-porous substrates: 6 mm (minimum); 15 mm (maximum).


Backing

A combined joint filler/ bond breaker, such as closed cell foam polyethylene rod, should always be used to ensure that the sealant adheres only to the joint faces and not to the back.

Guidance for specification option:

Bond breaker tape should be used where the joint has been packed out with fibre-board.

Primer

A primer is not required for polyester powder coated surfaces, mill finished aluminium or anodized aluminium or glass.

Manufacturer guidance

Primers are available to suit other substrates – refer to technical literature for details.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Silicone
