Anvil Metal Cladding - Interlocking Multi Plane
Verified by manufacturer over a year ago
A1 pre-coated aluminium
A1 pre-coated aluminium
Metal cladding using an interlocking multi plane (IMP) system with a secret fix joint.
Application
External façade installations.
Description
Anvil is a range of aluminium rainscreen cladding panels that are attached using framing systems to the outer skin of the building construction. Anvil metal cladding panels can be manufactured to size and fabricated using aluminium, stainless steel, copper, Corten steel and zinc metals, which can be supplied in either an anodized, painted or mill finish.
Anvil metal cladding is available using an interlocking multi plane (IMP) system with a secret fix joint.
Features and benefits:
- The secret fix joint means there are no visible fixings, providing a precise and uniform finish to the façade.
- To suit individual design requirements, the IMP panel system can be utilized to create a range of façade patterns.

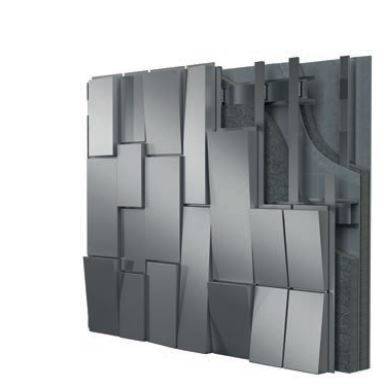

- The system can employ a mix of wedge-shaped and variable depth cassettes, allowing the creation of varying panel configurations and geometric effects.
- These cassettes can then be laid in a multi-directional fashion, allowing the construction of highly creative aesthetic details.

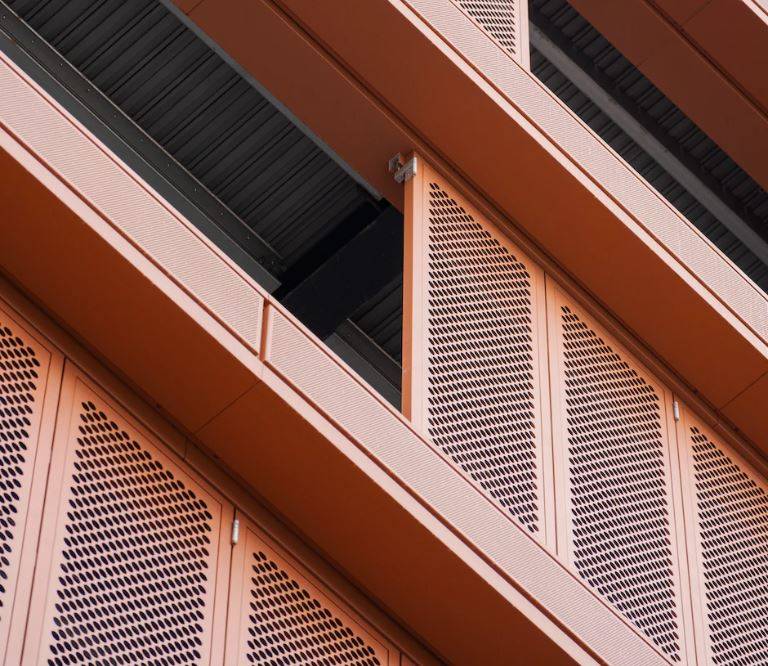

- It is possible to perforate the faces of the cassettes, providing another means of generating unique and decorative visual effects on the façade with perforated aluminium panels.
- The IMP system is available with a PPC, natural metal, or anodized finish.
For samples, further details regarding the colours/ finishes available or technical details, please contact Taylor Maxwell.
General information
Color | Silver Black Blue Brown Copper |
Finish | Powder-coated Anodized Natural Coated |
Material | Aluminium Copper Cor-Ten Stainless steel Zinc |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H20/150 Sheet cladding (attached to metal support systems) H20/10 Sheet cladding H92/120 Rainscreen cladding |
Specification data - Drained and back-ventilated rainscreen cladding systems
Thermal insulation | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Breather membrane | |
Material | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Fasteners | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Secondary support structure | FloorSpan framing system.Guidance for specification option: FloorSpan is a aluminium rainscreen framing system.
Artus helping hand bracket cladding fixing systems.Guidance for specification option: Artus is a range of helping hand bracket cladding fixing systems used to support the rainscreen cladding system on a façade.
|
Cavity fire barriers | |
Horizontal | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Vertical | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Cladding panels | |
Material | Aluminium. |
Panel joints | Interlocking multi plane (IMP) system with a secret fix joint. |
Reveals | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
System accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Joint width | 10 mm. Manufacturer guidanceMinimum joint width. |
Surface finish | A1 pre-coated. Guidance for specification option: Insert colour requirements below. |
Colour | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
