AlivaFlex M - Direct Fixed - External Wall Insulation / ETICS System
Verified by manufacturer 11 days ago
Direct fixed resin bound slip external wall insulation (EWI) system with a replicated brick finish.
Application

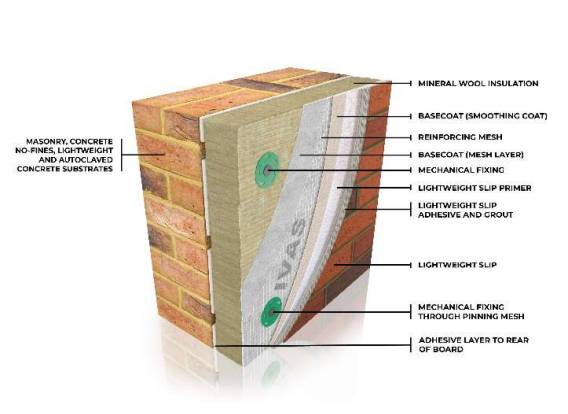

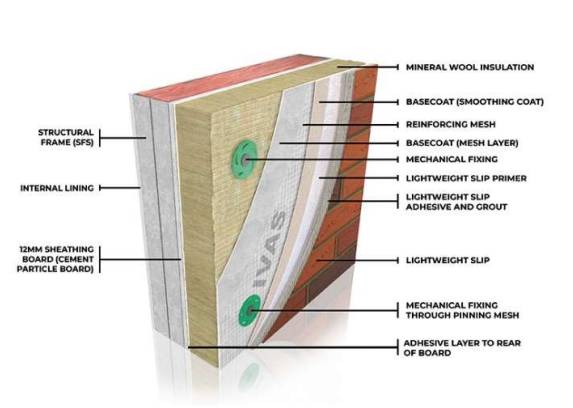

Mechanically and adhesively fixed to either sheathed light gauge steel frame or masonry, concrete, block or no-fines supporting walls.
Description
The AlivaFlex M system consists of mineral wool insulation boards which are mechanically and adhesively fixed to either sheathed light gauge steel frame or masonry, concrete, block or no-fines supporting walls. A layer of basecoat with reinforcement mesh is applied to the mechanically fixed insulation boards and the insulation and finishes applied. The system is then finished with a granular resin bound slip to replicate a brick finish.
Features and benefits:
- Finished with a 4/ 5 mm granular resin bound slip to replicate a brick finish.
- Directly fixed with mechanical fixing with supplementary adhesive.
- Class A2,s1,d0 fire classification to BS EN 13501-1:2019 (surface spread of flame).
- The system when installed to specification will achieve a design life of in excess of 30 years.
- KIWA BDA and BBA certified.
Approved substrates:
- Lightweight steel frames with cement or calcium silicate sheathing boards.
- Masonry, concrete, blockwork, aerated block and no-fines concrete.
General information
Material | Resin Mineral wool |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | M21/210 Rendered external wall insulation systems M21/20 External wall insulation systems |
Specification data - External wall insulation systems
Description | Direct fixed resin bound slip external wall insulation (EWI) system with a replicated brick finish. |
System manufacturer | Aliva UK Ltd. |
Support rails and brackets | |
Boards | |
Material | Not required. 12 mm sheathing board (cement particle board). |
Fixings | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Insulation | |
Material | Mineral wool insulation boards. |
Adhesive | Adhesive layer to rear of board. |
Additional mechanical fixings | Mechanical fixing. Guidance for specification option: Consult manufacturer for details. |
Render carrier or reinforcement | |
Material | Reinforcing mesh. |
Mesh size | Manufacturer guidanceConsult manufacturer for details. |
Fixings | Mechanical fixing. Guidance for specification option: Consult manufacturer for details. |
Render | |
Application | Base coat. |
Material | Cementitious renders. |
Decorative finish | Lightweight 4/ 5 mm granular resin bound slip. Guidance for specification option: Fixed with lightweight slip primer and lightweight slip adhesive and grout. |
Colour | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Fire classification | Class A2,s1,d0 to BS EN 13501-1 (surface spread of flame). |
Sustainability data
Material | Resin Mineral wool |
Expected Life | 30 year Guidance for specification option: The system when installed to specification will achieve a design life of in excess of 30 years. |
Literature
AlivaFlex M - Direct Fixed
