AlivaCeramic E - Direct Fixed - External Wall Insulation / ETICS System
Verified by manufacturer 11 days ago
Direct fixed external wall insulation (EWI) system with a ceramic tile slip.
Application
Mechanically and adhesively fixed to masonry, concrete, block or no-fines supporting walls.
Description

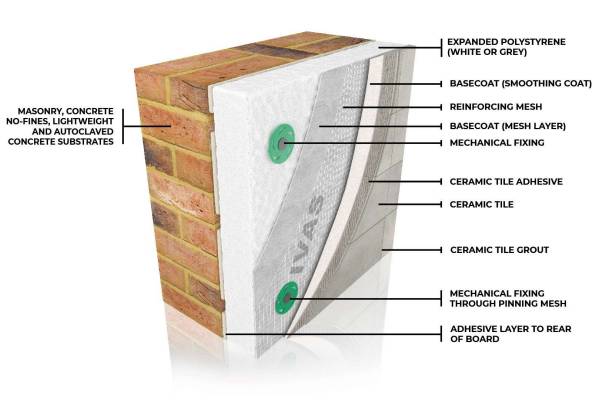

The AlivaCeramic E system consists of expanded polystyrene insulation boards which are mechanically and adhesively fixed to masonry, concrete, block or no-fines supporting walls. A layer of basecoat with reinforcement mesh is applied to the mechanically fixed insulation boards and the insulation and finishes applied. The system is then finished with a ceramic tile slip.
Features and benefits:
- Directly fixed with mechanical fixing with supplementary adhesive.
- Finished with a ceramic tile slip from 9–15 mm thick and in a variety of sizes and shapes.
- Class B fire classification to BS EN 13501-1:2019 (surface spread of flame).
- The system when installed to specification will achieve a design life of in excess of 30 years.
- BBA certified.
Approved substrates:
Masonry, concrete, blockwork, aerated block and no-fines concrete.
General information
Color | Grey Other |
Finish | Other Guidance for specification option: Tiled. |
Material | Ceramic Expanded polystyrene (EPS) |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | M21/210 Rendered external wall insulation systems M21/20 External wall insulation systems |
Specification data - External wall insulation systems
Description | Direct fixed external wall insulation (EWI) system with a ceramic tile slip finish. |
System manufacturer | Aliva UK Ltd. |
Insulation | |
Material | Expanded polystyrene (EPS) boards, white. Expanded polystyrene (EPS) boards, grey. |
Adhesive | Adhesive layer to rear of board. |
Additional mechanical fixings | Mechanical fixing. Guidance for specification option: Consult manufacturer for details. |
Render carrier or reinforcement | |
Material | Reinforcing mesh. |
Mesh size | Manufacturer guidanceConsult manufacturer for details. |
Fixings | Mechanical fixing. Guidance for specification option: Consult manufacturer for details. |
Render | |
Application | Base coat. |
Material | Cementitious renders. |
Decorative finish | Ceramic tile slip, 9–15 mm thick, finished with a ceramic tile grout. Guidance for specification option: Fixed to ceramic tile adhesive. |
Colour | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Fire classification | Class B to BS EN 13501-1 (surface spread of flame). |
Sustainability data
Material | Ceramic Expanded polystyrene (EPS) |
Expected Life | 30 year Guidance for specification option: The system when installed to specification will achieve a design life of in excess of 30 years. |
Literature
AlivaCeramic E - Direct Fixed
