AlivaDesign E - Direct Fixed - External Wall Insulation / ETICS System

Name: AlivaDesign E - Direct Fixed - External Wall Insulation / ETICS System
Brand: Aliva UK Ltd
SKU: hwKL3e27RLSecb83ubbMTe

Verified by manufacturer 11 days ago

Aliva UK Ltd

Direct fixed external wall insulation (EWI) system with a decorative finish that replicates a traditional finish.

Jump to:

01183 240 130 Website

Application

Mechanically and adhesively fixed to masonry, concrete, block or no-fines supporting walls.

Description

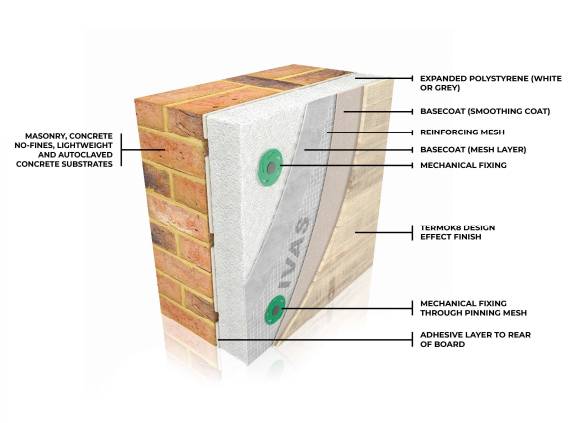

The AlivaDesign E system consists of expanded polystyrene insulation boards which are mechanically and adhesively fixed to masonry, concrete, block or no-fines supporting walls. A layer of basecoat with reinforcement mesh is applied to the mechanically fixed insulation boards and the insulation and finishes applied. The system is then finished with a decorative finish with silicone and acrylic properties to replicate various traditional finishes such as Corten steel, brushed concrete, travertine tiles and timber panelling.

Features and benefits:

Directly fixed with mechanical fixing with supplementary adhesive or adhesively fixed with supplementary mechanical fixing.
Finished to replicate various traditional finishes such as Corten steel, brushed concrete, travertine tiles and timber panelling.
Class B fire classification to BS EN 13501-1:2019 (surface spread of flame).
The system when installed to specification will achieve a design life of in excess of 30 years.
BBA certified.

Approved substrates:

Masonry, concrete, blockwork, aerated block and no-fines concrete.

General information

Color	Grey Other
Finish	Brushed Textured Travertine Natural Other
Material	Acrylic Expanded polystyrene (EPS) Silicone
Shape	Other
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Ss_25_45_72_28 External wall insulation systemsPrimary
CAWS	M21/210 Rendered external wall insulation systems M21/20 External wall insulation systems

Specification data - External wall insulation systems

Description	Direct fixed external wall insulation (EWI) system with a decorative finish.
System manufacturer	Aliva UK Ltd.
Insulation	-
Material	Expanded polystyrene (EPS) boards, white. Expanded polystyrene (EPS) boards, grey.
Adhesive	Adhesive layer to rear of board.
Additional mechanical fixings	Mechanical fixing. Guidance for specification option: Consult manufacturer for details.
Render carrier or reinforcement	-
Material	Reinforcing mesh.
Mesh size	- Manufacturer guidance Consult manufacturer for details.
Fixings	Mechanical fixing. Guidance for specification option: Consult manufacturer for details.
Render	-
Application	Base coat.
Material	Cementitious renders.
Decorative finish	Termok8® textured finish. Corten steel. Brushed concrete. Travertine tiles. Timber panelling. Other. Guidance for specification option: Consult manufacturer and insert requirements.
Colour	- Manufacturer guidance Consult manufacturer for details and insert requirements.

Fire classification	Class B to BS EN 13501-1 (surface spread of flame).

Sustainability data

Material	Acrylic Expanded polystyrene (EPS) Silicone
Expected Life	30 year Guidance for specification option: The system when installed to specification will achieve a design life of in excess of 30 years.
