AlivaFlex E - Direct Fixed - External Wall Insulation / ETICS System

Name: AlivaFlex E - Direct Fixed - External Wall Insulation / ETICS System
Brand: Aliva UK Ltd
SKU: kX6nSjpQZSPBh8L6Hsaw4X

Verified by manufacturer 11 days ago

Aliva UK Ltd

Direct fixed resin bound slip external wall insulation (EWI) system with replicated brick finish.

Jump to:

01183 240 130 Website

Application

Mechanically and adhesively fixed to masonry, concrete, block or no-fines supporting walls.

Description

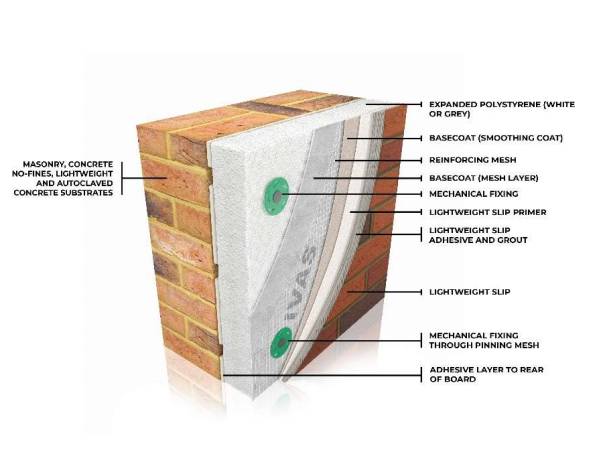

The AlivaFlex E system consists of expanded polystyrene insulation boards which are mechanically and adhesively fixed to masonry, concrete, block or no-fines supporting walls. A layer of basecoat with reinforcement mesh is applied to the mechanically fixed insulation boards and the insulation and finishes applied. The system is then finished with a granular resin bound slip to replicate a brick finish.

Features and benefits:

Finished with a 4/ 5 mm granular resin bound slip to replicate a brick finish.
Directly fixed with mechanical fixing with supplementary adhesive.
Class B fire classification to BS EN 13501-1:2019 (surface spread of flame).
The system when installed to specification will achieve a design life of in excess of 30 years.
BBA certified.

Approved substrates:

Masonry, concrete, blockwork, aerated block and no-fines concrete.

General information

Color	Grey
Finish	Brick
Material	Resin Expanded polystyrene (EPS)
Shape	Other
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Ss_25_45_72_28 External wall insulation systemsPrimary
CAWS	M21/210 Rendered external wall insulation systems M21/20 External wall insulation systems

Specification data - External wall insulation systems

Description	Direct fixed resin bound slip external wall insulation (EWI) system with replicated brick finish.
System manufacturer	Aliva UK Ltd.
Insulation	-
Material	Expanded polystyrene (EPS) boards, white. Expanded polystyrene (EPS) boards, grey.
Adhesive	Adhesive layer to rear of board.
Additional mechanical fixings	Mechanical fixing. Guidance for specification option: Consult manufacturer for details.
Render carrier or reinforcement	-
Material	Reinforcing mesh.
Mesh size	- Manufacturer guidance Consult manufacturer for details.
Fixings	Mechanical fixing. Guidance for specification option: Consult manufacturer for details.
Render	-
Application	Base coat.
Material	Cementitious renders.
Decorative finish	Lightweight 4/ 5 mm granular resin bound slip. Guidance for specification option: Fixed with lightweight slip primer and lightweight slip adhesive and grout.
Colour	- Manufacturer guidance Consult manufacturer for details and insert requirements.

Fire classification	Class B to BS EN 13501-1 (surface spread of flame).

Sustainability data

Material	Resin Expanded polystyrene (EPS)
Expected Life	30 year Guidance for specification option: The system when installed to specification will achieve a design life of in excess of 30 years.
