AIRTRAK® VA Ventilated Apron - Roof Ventilation System

Name: AIRTRAK® VA Ventilated Apron - Roof Ventilation System
Brand: Nicholson STS Ltd
SKU: gusMzmrZ28pUUvPqUAFm7s

Verified by manufacturer 13 days ago

Airtrak VA200 Ventilated Apron

Nicholson STS Ltd

Third party certifications:

ISO 9001 Quality Management
Certificate type

Introduces ventilation at the head of slated or tiled pitch where the roof meets an abutment wall.

Jump to:

+44 (0) 1763 295828 Website

Application

Suitable for use at the junction of a slated or tiled roof with an abutment.
E Version: For increased resistance to both wind uplift in exposed locations and corrosion in coastal locations, the ventilator can be supplied in 1.0 mm-thick, 316 grade stainless steel. Where extreme weather conditions are likely, consideration should be given to providing more weathering cover to upstands and slating or tiling to improve the integrity of the detail.
FR Version: To reduce spread of fire through ventilation apertures, the ventilator can be supplied with an intumescent seal.

Note: Standard AIRTRAK® details assume moderate weather conditions. Small amounts of moisture may be admitted under heavy storm conditions. Where more severe weather conditions are likely, consideration should be given to increasing the vertical overlap dimension to upstands and to slating or tiling to improve the integrity of the weathering detail. For slate and tile details the manufacturer also recommends the use of the AIRTRAK® LPS where appropriate. Contact manufacturer for further technical help.

Description

Introduces ventilation at the head of slated or tiled pitch where the roof meets an abutment wall.

Features and benefits:

The profile is supplied pre-bent to suit the roof pitch as specified, and is fixed to the abutment wall and covered with a flashing.
At lower pitches, the apron is combined with the appropriate LPS low pitch soaker to maintain the integrity of the detail.

Product selection guide:

- Tiled roof applications:

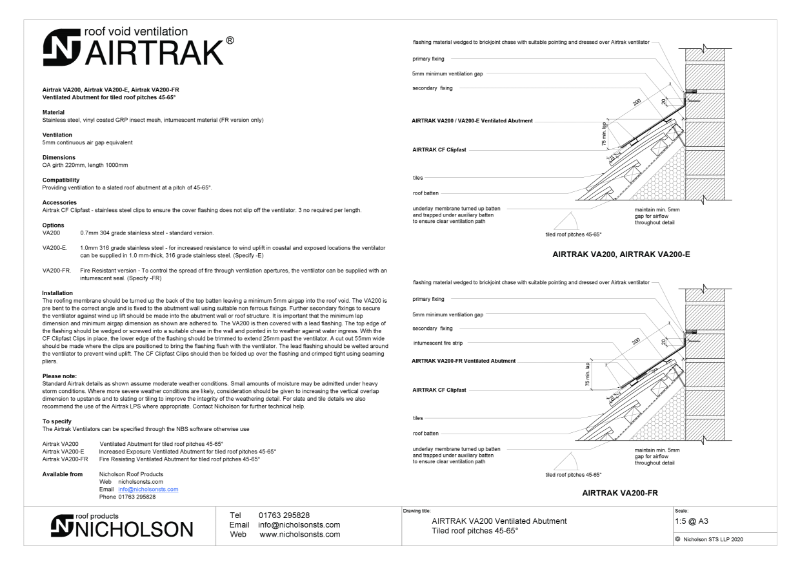

45-65° roof pitch: VA200.

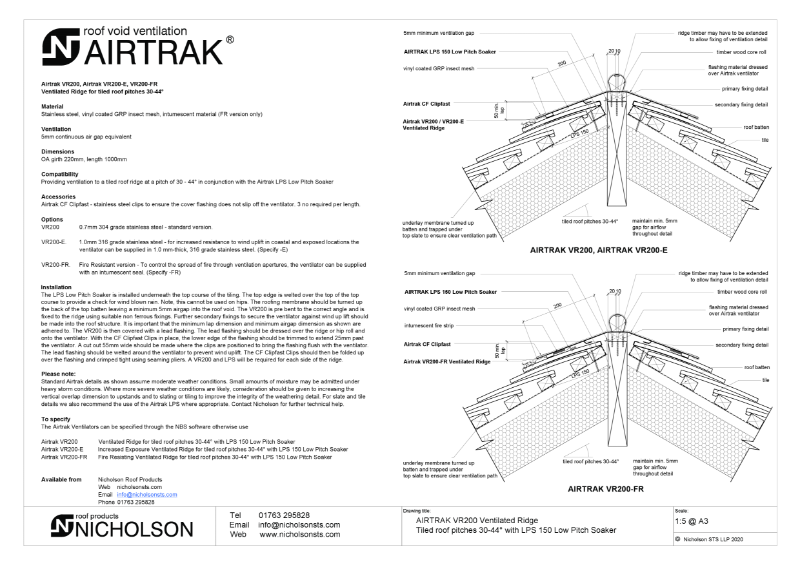

28-44° roof pitch: VA200 + LPS150.

- Slated roof applications:

35-65° roof pitch: VA200.

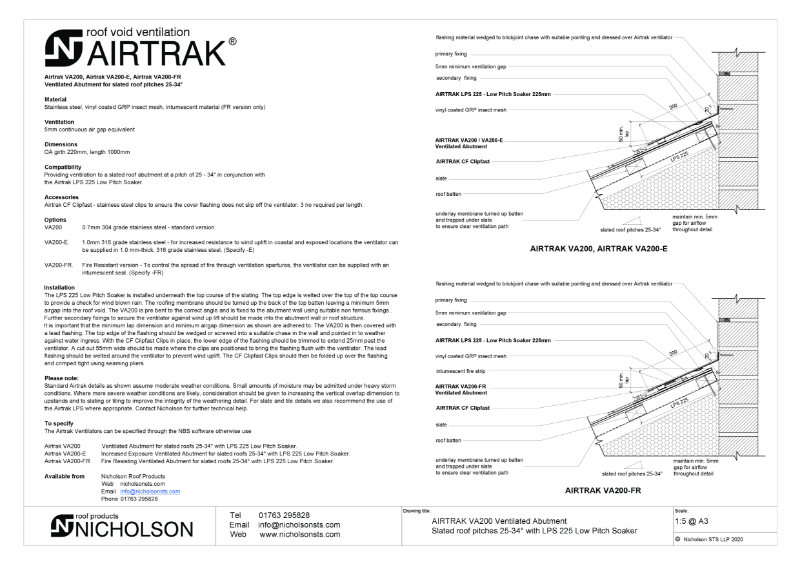

25-34° roof pitch: VA200 + LPS225.

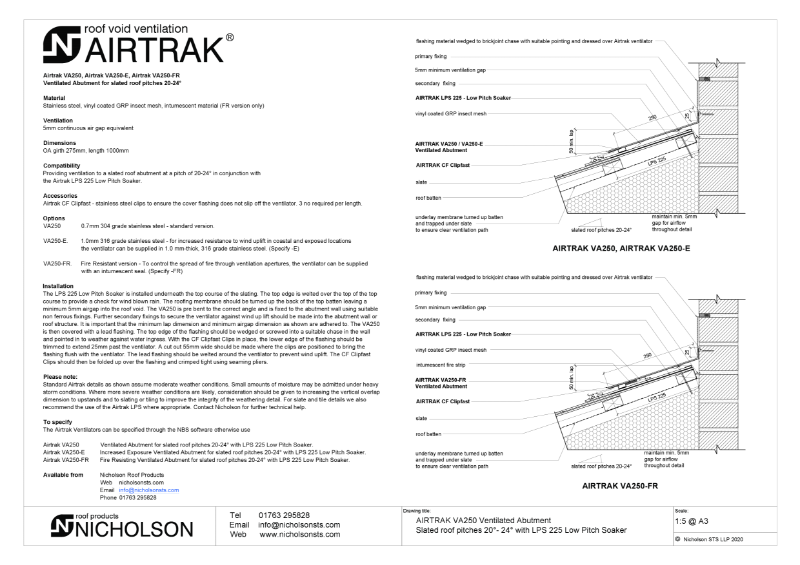

20-24° roof pitch: VA250 + LPS225.

General information

Color	Silver
Material	Stainless steel Glass Reinforced Plastic (GRP) Guidance for specification option: Insect mesh.
Shape	Rectangle
Length	1000 mm
Width	220 mm 275 mm
Warranty description	Ten year

Uniclass	Pr_30_59_29_02 Abutment ventilatorsPrimary
CAWS	H60/675 Top edge ventilated abutments H60/72 Top edge ventilated abutments H62/675 Top edge ventilated abutments H65/675 Top edge ventilated abutments

Specification data - Abutment ventilators

Ventilation opening	10 mm continuous air gap equivalent.

LPS low pitch soaker	Not required. Airtrak LPS150. Guidance for specification option: For tiled roofing, for use with VA200/ VA200-E/ VA200-FR only. Airtrak LPS225. Guidance for specification option: For slated roofing, for use with all aprons.
Airtrak CF ClipFast fixing clips	Not required. Airtrak CF ClipFast clips, stainless steel. Guidance for specification option: 70 x 60 mm, 0.6 mm thickness. Airtrak CF ClipFast clips, copper. Guidance for specification option: 70 x 60 mm, 0.5 mm thickness. Manufacturer guidance Fixing clip for securing lead flashings to the Airtrak ventilators to prevent flashing creep over time. Clips locate in the slots found in the lower edge of the ventilator; these slots are spaced at approximately 330 mm centres.
Grade	304.
Dimensions	1000 x 220 mm. Guidance for specification option: Unit length x overall girth.
Type	Standard.
Roof pitch	200 mm. Manufacturer guidance Cover to roof pitch.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Stainless steel Glass Reinforced Plastic (GRP) Guidance for specification option: Insect mesh.
Recyclability	Recyclable at end of life
Recycled content As defined in clause 7.8 of BS EN ISO 14021	50 %
Expected Life	30 year
