AIRTRAK® PE Pitched Eaves Ventilators - Roof Ventilation System

Verified by manufacturer 1 month ago

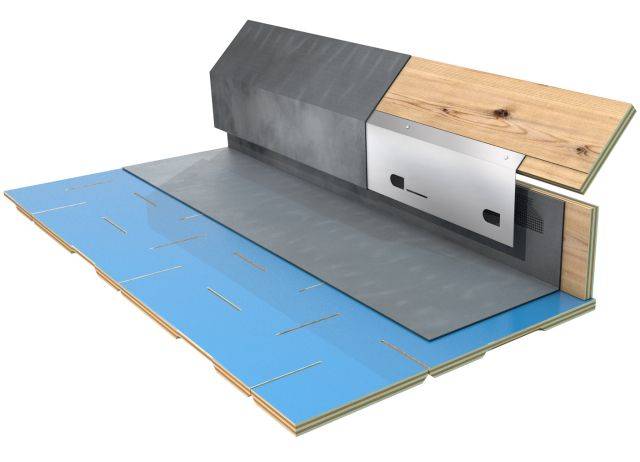

Airtrak PE100 Pitched Eaves Ventilator

Nicholson STS Ltd Variant:
Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Provides an unobtrusive ventilation path into the roof void at the bottom of a pitched roof slope.

Jump to:
+44 (0) 1763 295828 Website

Application

  • Suitable for providing ventilation in metal, membrane and liquid roof coverings.
  • E Version: For increased resistance to both wind uplift in exposed locations and corrosion in coastal locations, the ventilator can be supplied in 1.0 mm-thick, 316 grade stainless steel. Where extreme weather conditions are likely, consideration should be given to providing more weathering cover to upstands and slating or tiling to improve the integrity of the detail.
  • FR Version: To reduce spread of fire through ventilation apertures, the ventilator can be supplied with an intumescent seal.


Note: Standard AIRTRAK® details assume moderate weather conditions. Small amounts of moisture may be admitted under heavy storm conditions. Where more severe weather conditions are likely, consideration should be given to increasing the vertical overlap dimension to upstands and to slating or tiling to improve the integrity of the weathering detail. For slate and tile details the manufacturer also recommends the use of the AIRTRAK® LPS where appropriate. Contact manufacturer for further technical help.

Description

Provides an unobtrusive ventilation path into the roof void at the bottom of a pitched roof slope.


Features and benefits:

  • After installation, the ventilator is covered by the flashing or roofing material.
  • Available in different downstand dimensions.
  • Supplied pre-bent to a specified angle.
  • Can be combined with AIRTRAK® CF ClipFast clips where it is possible that the flashing might slip off the ventilator over time and the welt disengage from the lower edge.

General information

Color

Black

Grey

Silver

Finish

Metallic

Material

Stainless steel

Glass Reinforced Plastic (GRP)

Guidance for specification option:

Insect mesh.

Shape

Rectangle

Length

1000 mm

Width

125 mm

145 mm

180 mm

Manufacturer guidance

Overall girth.

Warranty description

Ten year

Uniclass

Pr_30_59_29_02 Abutment ventilatorsPrimary

CAWS

H60/72 Top edge ventilated abutments

H60/675 Top edge ventilated abutments

J41/80 Roof ventilators

J41/485 Roof ventilators

Specification data - Abutment ventilators

Ventilation opening

25 mm continuous air gap equivalent.

Colour

Stainless steel.

Type

Standard.

Grade

304.

Dimensions

1000 x 125 mm.

Guidance for specification option:

Unit length x overall girth.

Downstand: 100 mm.

Pitch

Guidance for specification option:

Insert requirement.

Airtrak CF ClipFast fixing clips

Not required.

Airtrak CF ClipFast clips, stainless steel.

Guidance for specification option:

70 x 60 mm, 0.6 mm thickness.

Airtrak CF ClipFast clips, copper.

Guidance for specification option:

70 x 60 mm, 0.5 mm thickness.

Manufacturer guidance

Fixing clip for securing lead flashings to the Airtrak ventilators to prevent flashing creep over time. Clips locate in the slots found in the lower edge of the ventilator; these slots are spaced at approximately 330 mm centres.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Stainless steel

Glass Reinforced Plastic (GRP)

Guidance for specification option:

Insect mesh.

Recyclability

Recyclable at end of life

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

50 %

Expected Life

30 year

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

Citation

Literature

AIRTRAK Roof Void Ventilation System 2020

AIRTRAK Roof Void Ventilation System 2020

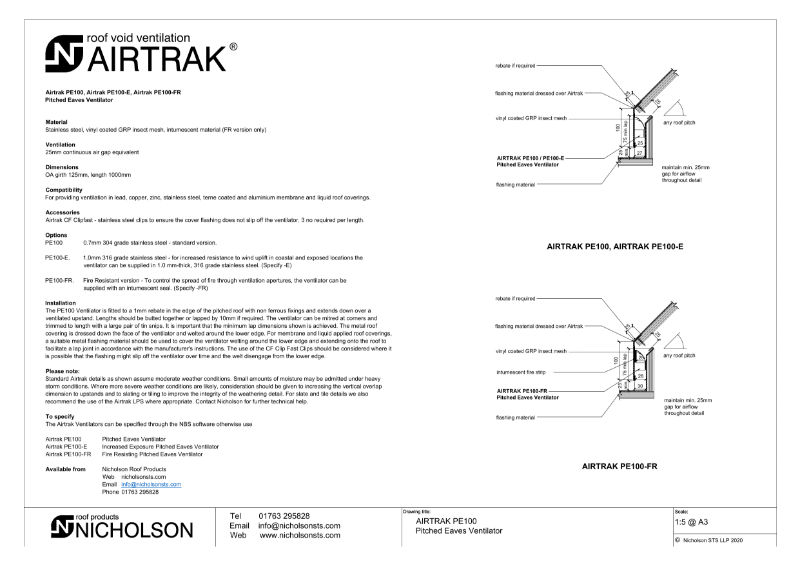

AIRTRAK PE100 Technical Data Sheet

AIRTRAK PE100 Technical Data Sheet

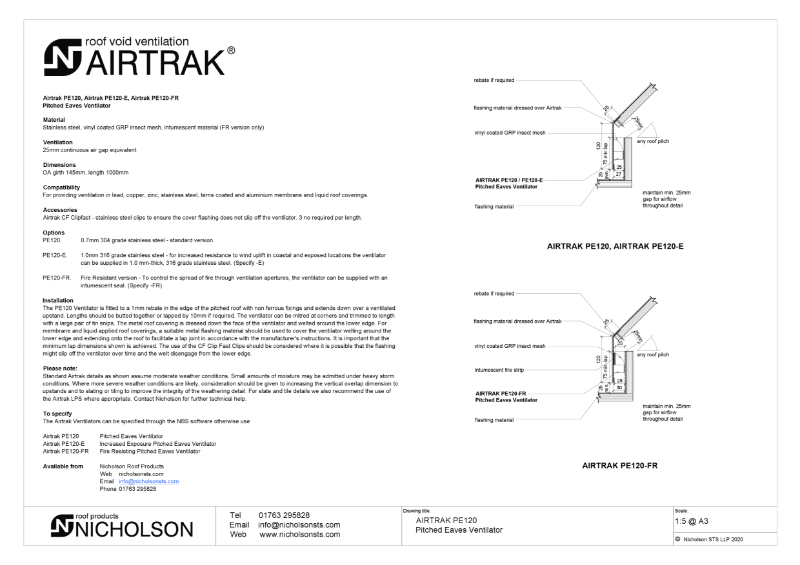

AIRTRAK PE120 Tech Data Sheet

AIRTRAK PE120 Tech Data Sheet

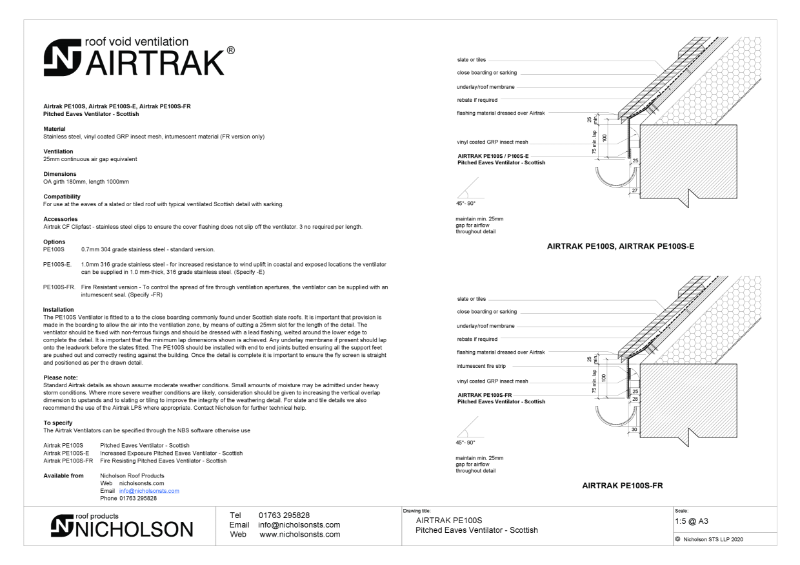

AIRTRAK PE100S Tech Data Sheet

AIRTRAK PE100S Tech Data Sheet

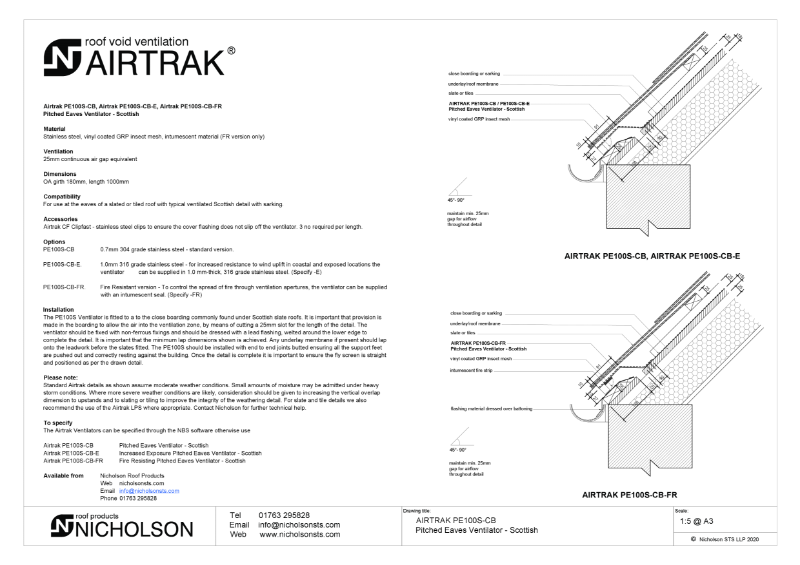

AIRTRAK PE100S-CB Tech Data Sheet

AIRTRAK PE100S-CB Tech Data Sheet

Case studies

AIRTRAK™ - St Johns Chapel

AIRTRAK™ - St Johns Chapel

AIRTRAK™ - Coal Drops Yard

AIRTRAK™ - Coal Drops Yard

Clifton Cathedral

Clifton Cathedral
