AIRTRAK® CV Cheek Ventilator - Roof Ventilation System
Verified by manufacturer 26 days ago

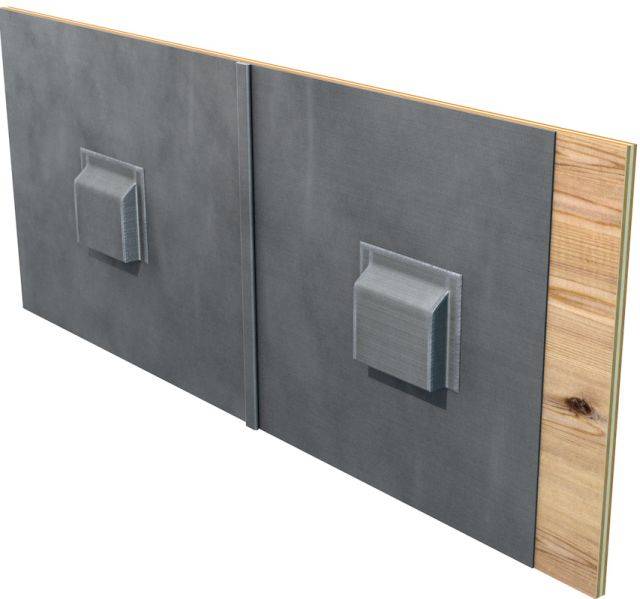

Provides ventilation into vertical lead cladding.
Application
For use with lead cladding on dormer cheeks.
Description
Provides a small amount of ventilation into vertical lead cladding particularly dormer cheeks where other forms of linear ventilation may not be possible.
General information
Color | Grey |
Material | Stainless steel Guidance for specification option: Ventilator. Glass Reinforced Plastic (GRP) Guidance for specification option: Insect mesh. |
Shape | Rectangle |
Length | 29 mm Guidance for specification option: Overall depth. |
Width | 150 mm Guidance for specification option: Overall. |
Height | 125 mm Guidance for specification option: Overall. |
Uniclass | |
CAWS | H71/130 Lead sheet fully supported wall covering |
Specification data - Strip ventilators
Classification data | |
Purpose | Point ventilation. |
Ventilation opening | 2200 mm². |
Colour | Grey. Guidance for specification option: Lead. |
Standards | To BS EN 12588. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Stainless steel Guidance for specification option: Ventilator. Glass Reinforced Plastic (GRP) Guidance for specification option: Insect mesh. |
Recyclability | Recyclable at end of life |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
Expected Life | 30 year |
Literature
Literature type
AIRTRAK Roof Void Ventilation System 2020

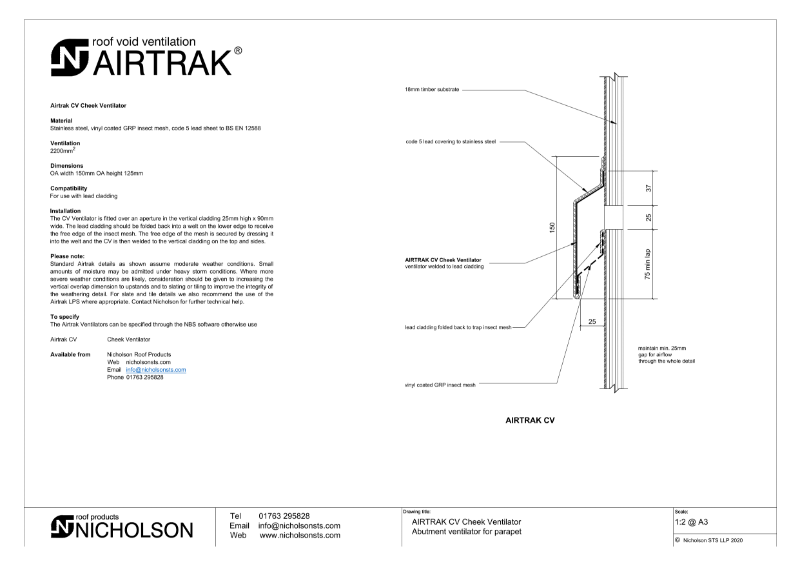

AIRTRAK CV Technical Data Sheet
Case studies
AIRTRAK™ - St Johns Chapel
AIRTRAK™ - Coal Drops Yard
Clifton Cathedral
