AIRTRAK® CS Comb Strip - Roof Ventilation System
Verified by manufacturer 13 days ago
ISO 9001 Quality Management
Certificate type
Comb strip designed to prevent the entry of birds and vermin into the batten void beneath profiled tiles at the eaves.
Application
External applications.
Description
Comb strip designed to prevent the entry of birds and vermin into the batten void beneath profiled tiles at the eaves
Features and benefits:
- Can be used with all profiled tiles.
Installation:

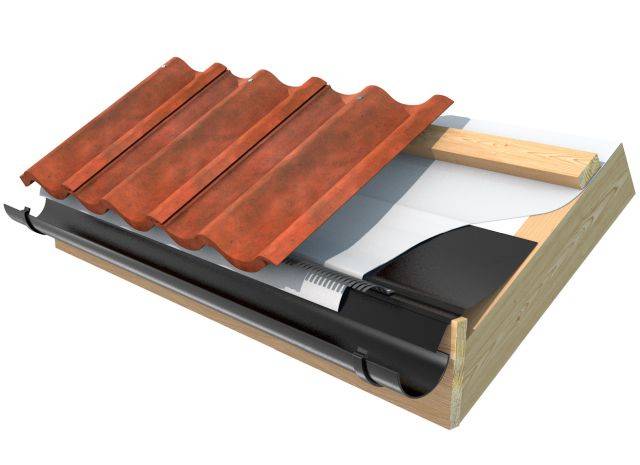

Nailed to the top of the fascia board and has flexible excluder which accommodates the profile in the tile. Lengths should be butted together. Consult manufacturer's literature for details.
General information
Color | Black |
Material | Medium density polyethylene (MDPE) |
Length | 1000 mm |
Width | 80 mm Guidance for specification option: Overall. |
Warranty description | Ten year |
Uniclass | |
CAWS | H65/345 Ventilated eaves – integrated grilles/ trays |
Specification data - Strip ventilators
Purpose | Comb strip |
Ventilation opening | Minimal ventilator. |
Colour | Black. |
Accessories | None. Airtrak EC Eaves Carrier. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Medium density polyethylene (MDPE) |
Recyclability | Recyclable at end of life |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
Expected Life | 30 year |
Third party certifications
ISO 9001 Quality Management
Citation
Literature
AIRTRAK Roof Void Ventilation System 2020

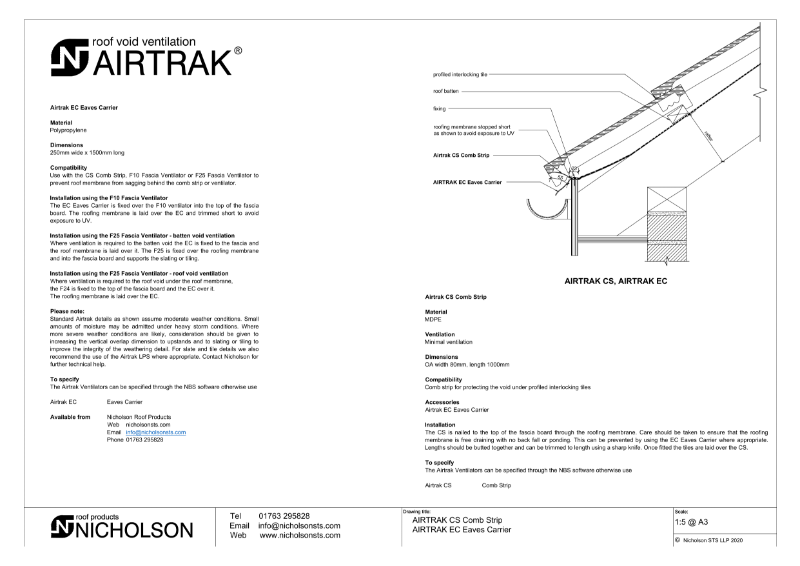

AIRTRAK CS Technical Data Sheet
