Airtrak BRV1 Between Roll Ventilator, pitch 0–30º
Airtrak BRV1 Between Roll Ventilator, pitch 0–30º
ISO 9001 Quality Management
Certificate type
Range of between-roll ventilators for lead ridge details.
Application
- Suitable for ventilating lead ridge details from 0 to 30° (BRV1) or 31 to 65° (BRV2).
- E Version: For increased resistance to both wind uplift in exposed locations and corrosion in coastal locations, the ventilator can be supplied in 1.0 mm-thick, 316 grade stainless steel. Where extreme weather conditions are likely, consideration should be given to providing more weathering cover to upstands and slating or tiling to improve the integrity of the detail.
- FR Version: To reduce spread of fire through ventilation apertures, the ventilator can be supplied with an intumescent seal.
Note: Standard AIRTRAK® details assume moderate weather conditions. Small amounts of moisture may be admitted under heavy storm conditions. Where more severe weather conditions are likely, consideration should be given to increasing the vertical overlap dimension to upstands and to slating or tiling to improve the integrity of the weathering detail. For slate and tile details the manufacturer also recommends the use of the AIRTRAK® LPS where appropriate. Contact manufacturer for further technical help.
Description
Range of between-roll ventilators for lead ridge details, to be located between the wood or hollow core rolls.
Features and benefits:
- Designed to ventilate the top of a pitched lead roof either at an abutment with a wall or at a ridge.
- Provides a ventilation path under the flashing.
- Provides an unobtrusive alternative to cumbersome timber constructions, especially on ridge details.
General information
Color | Silver |
Material | Stainless steel Glass Reinforced Plastic (GRP) Guidance for specification option: Insect mesh. |
Shape | Rectangle |
Length | 1000 mm Guidance for specification option: BRV1 range. 700 mm Guidance for specification option: BRV2 range. |
Width | 180 mm Guidance for specification option: BRV1 range. 300 mm Guidance for specification option: BRV2 range. Manufacturer guidanceOverall girth. |
Warranty description | Ten year |
Uniclass | |
CAWS | H71/110 Lead sheet fully supported roof covering |
Specification data - Abutment ventilators
Purpose | Pitched roofs, 0–30º. |
Ventilation opening | 25 mm continuous ventilation aperture. |
Airtrak CF ClipFast fixing clips | Not required. Airtrak CF ClipFast clips, stainless steel. Guidance for specification option: 70 x 60 mm, 0.6 mm thickness. Airtrak CF ClipFast clips, copper. Guidance for specification option: 70 x 60 mm, 0.5 mm thickness. Manufacturer guidanceFixing clip for securing lead flashings to the Airtrak ventilators to prevent flashing creep over time. Clips locate in the slots found in the lower edge of the ventilator; these slots are spaced at approximately 330 mm centres. |
Grade | 304. |
Dimensions | 180 x 1000 mm. Guidance for specification option: Overall girth x unit length. |
Pitch | Guidance for specification option: Insert requirement, 0–30º. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Stainless steel Glass Reinforced Plastic (GRP) Guidance for specification option: Insect mesh. |
Recyclability | Recyclable at end of life |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
Expected Life | 30 year |
Third party certifications
ISO 9001 Quality Management
Citation
Literature
AIRTRAK Roof Void Ventilation System 2020
AIRTRAK BRV Technical Data Sheet

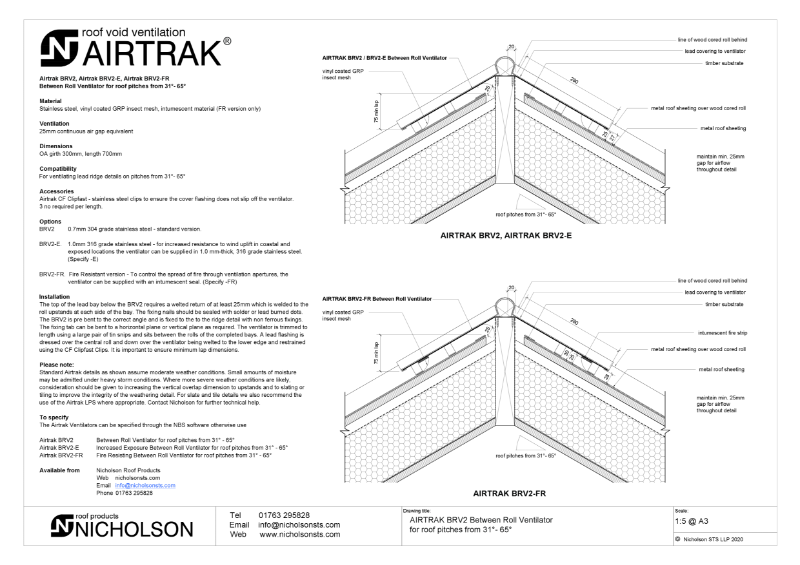

AIRTRAK BRV2 Data sheet
Case studies
AIRTRAK™ - St Johns Chapel
AIRTRAK™ - Coal Drops Yard
Clifton Cathedral
