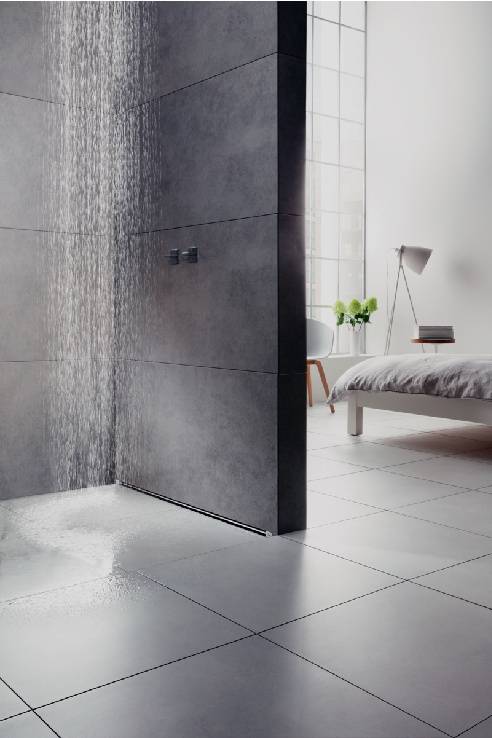

Advantix Vario Wall Channel
Verified by manufacturer 17 days ago
Bespoke wall drain.
Description
Advantix Vario bespoke wall drain.
Features and benefits:
- Flexible and easy to install (the flange surfaces are protected with adhesive strips and a foam insert to prevent contamination during installation).
- Simple maintenance and cleaning.
- Variable length of 300 to 1200 mm.
- Extremely narrow wall drain, 25 mm wall installation depth.
- Installation height: 90–165 mm. A special drain for renovations can reduce the installation height to 70 mm.
- High degree of reliability and hygiene.
- Uses environmentally compatible polypropylene (pp) and high-grade 1.4301 (304) grade stainless steel.
- Can be fitted to solid structures, lightweight constructions and front wall structures (wall plaster or simple XPS hard form panels).
- Drainage capacity between 0.6 and 0.75 L/s.
- The wall drain is drained over the entire surface; an incline of 1–2% is sufficient. This makes any time-consuming trimming of inclining tiles unnecessary as it is possible to tile right up to the drainage slot.
- Base material thickness: 1.5 mm.
- Grate material thickness: 2 mm.
General information
Color | Black White Silver |
Finish | Matt Polished |
Material | Polypropylene Stainless steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Six year |
Uniclass | |
CAWS | N13/375 Shower units N13/40 Shower units |
Product range |
Specification data - Sanitary appliance traps
Material | Polypropylene (PP) and 1.4301 (304) grade stainless steel. |
Size | DN 40.Manufacturer guidanceVariable length of 300 to 1200 mm; insert requirement. |
Depth of water seal (minimum) | 50 mm. |
Product Reference | Advantix Vario Wall |
Base unit | 4967.10. Guidance for specification option: Advantix Vario varion wall drain, 300–1200 mm. 4968.10 renovation model. |
Grate | 4967.30 Advantix Vario standing grate, stainless steel, matt. Guidance for specification option: 300–1200 mm. 4967.31 Advantix Vario standing grate, stainless steel, polished. Guidance for specification option: 300–1200 mm. 4967.32 Advantix Vario standing grate, black. Guidance for specification option: 300–1200 mm. 4967.33 Advantix Vario standing grate, white. Guidance for specification option: 300–1200 mm. |
Accessories | 4967.86 Advantix Vario accessory set, black. 4967.86 Advantix Vario accessory set, stainless steel, matt. 4967.86 Advantix Vario accessory set, stainless steel, polished. 4967.86 Advantix Vario accessory set, white. |
Drainage capacity | 0.4–0.8 L/s. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
