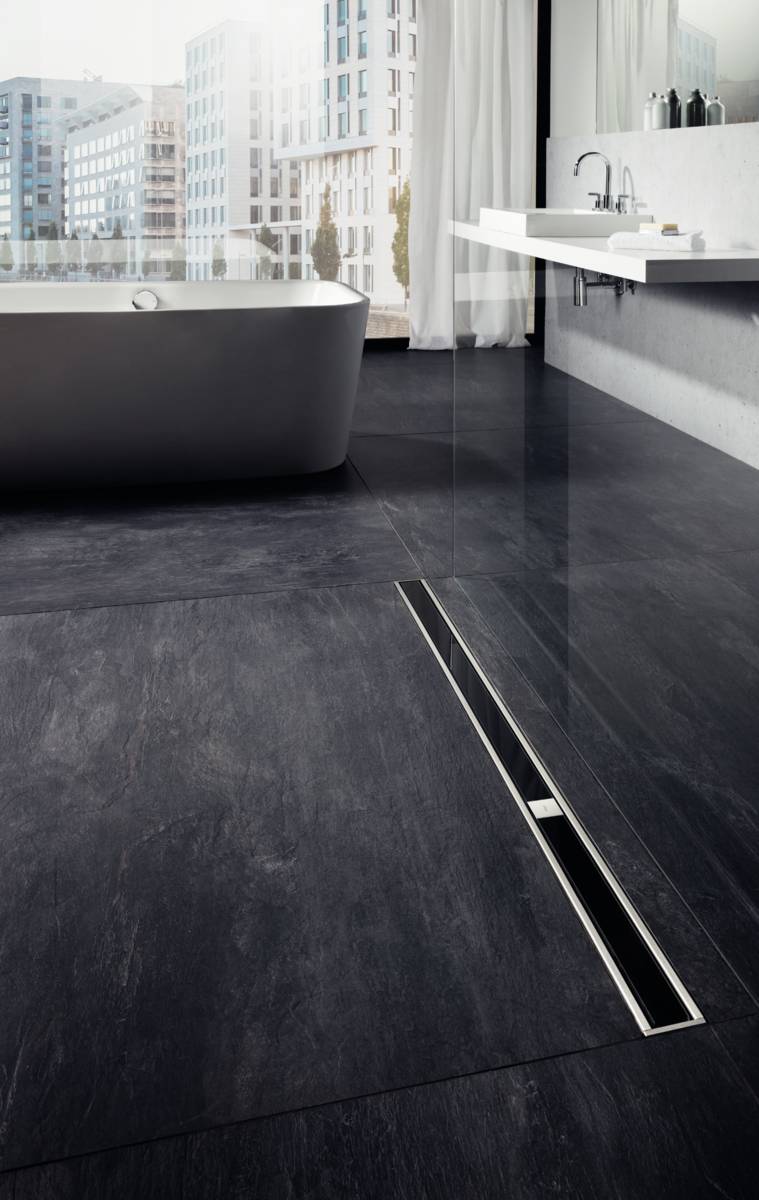

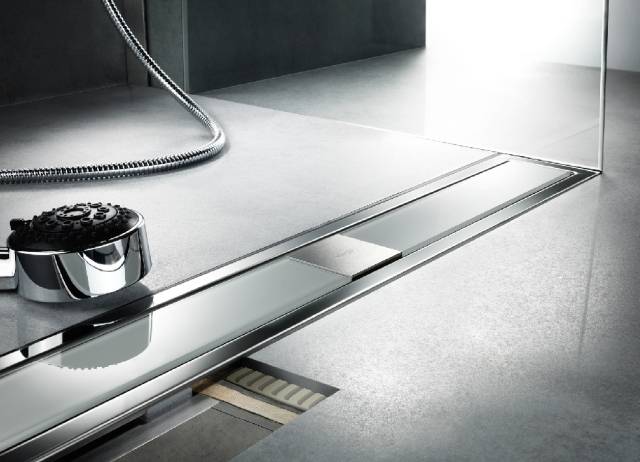

Advantix Shower Channel
Verified by manufacturer 22 days ago
Shower drainage channel.
Application
Shower drainage channel
Description
Advantix shower drainage channel.
Features and benefits:
- Simple, installation-friendly modular kit system.
- Two channel models, for free-standing or wall installation.
- Three drain options: standard (can be shortened), reconstruction and vertical models.
- Modern, minimalist design.
- Grates and frames, matt, high-gloss polish finish or as standard finish.
- Much narrower design grates (40 mm), squared or rounded, as tiled panel or tray or glass panel (grey and black).
- Drainage capacity between 0.4 and 1.1 L/s.
- Adjustable mounting feet to ensure that the grate sits flush against the tile.
- Base material thickness: 1.5 mm.
- Grate material thickness: 2 mm.
General information
Color | Black Grey White Other |
Finish | Matt Gloss Brushed |
Material | Stainless steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Six year |
Uniclass | |
CAWS | N13/375 Shower units N13/40 Shower units R11/310 Floor channels R11/5 Floor drains |
Product range |
Specification data - Sanitary appliance traps
Classification data | |
Colour | Self colour. |
Size | 750 mm. 800 mm. 900 mm. 1000 mm. 1200 mm. |
Depth of water seal (minimum) | 50 mm. |
Base unit | 4982.10 free-standing. 4982.20 wall installation. |
Drain | 4982.92 standard. Guidance for specification option: For installation height from 95 mm. Drainage capacity: 0.5–0.55 L/s. 50 mm water head seal. 4982.93 reconstruction. Guidance for specification option: For installation height from 70 mm. Drainage capacity: 0.4–0.45 L/s. 25 mm water head seal. 4982.94 vertical. Guidance for specification option: For installation height from 40 mm. Drainage capacity: 1.05–1.1 L/s. 50 mm water head seal. Fire protection pipe lead-in possible. |
Grates | 4982.50 Visign ER10 square contour, matt. 4982.51 Visign ER10 square contour, high-gloss polished. 4982.60 Visign ER11 rounded contour, matt. 4982.61 Visign ER11 rounded contour, high-gloss polished. 4982.70 Visign ER13 tileable, with all round rim. 4982.71 Visign ER12 tileable, rimless. 4982.80 Visign ER14 glass variant, black. 4982.81 Visign ER14 glass variant, grey. |
Accessories | None. 4941.70 Advantix shower channel accessory set. Guidance for specification option: For shower channel grates, 15–25 mm extension when using natural stone covering. 4982.92 Advantix removable odour trap. Guidance for specification option: For installation height from 95 mm. 4982.94 Advantix removable odour trap. Guidance for specification option: For installation height from 40 mm. 4982.96 Advantix shower channel accessory set. Guidance for specification option: For natural stone covering from 23–36 mm. Not for 4982.45 mounting frame. |
Drainage capacity | 0.4–1.1 L/s. |
Width | DN 40/50 (nominal). |
Feet | 4982.90 with rubberized adjusting feet. 4982.91 reconstruction model with rubberized adjusting feet. |
Frame | 4982.30 square contour. 4982.40 rounded contour. 4982.45 standard. Guidance for specification option: With installation height from 12 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Similar products from VIEGA LTD

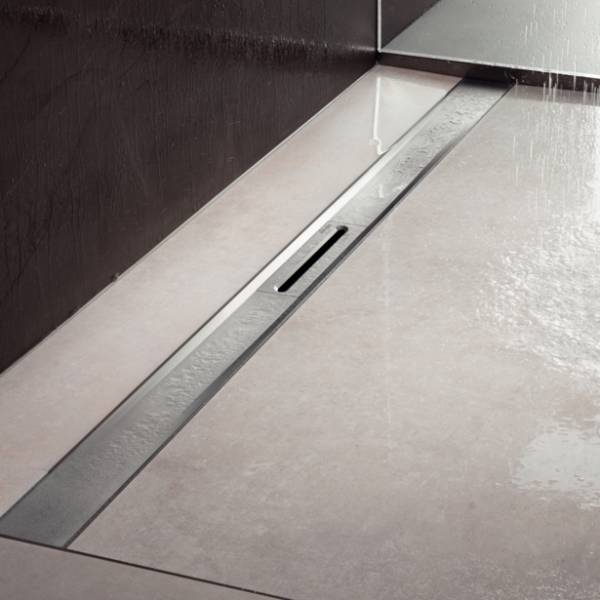

Advantix Cleviva Shower Channel

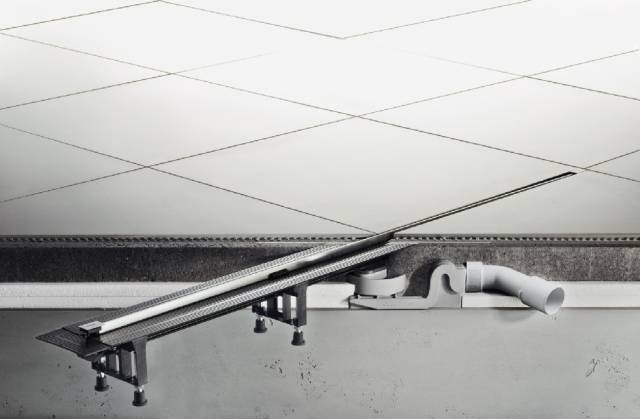

Advantix Vario Shower Channel

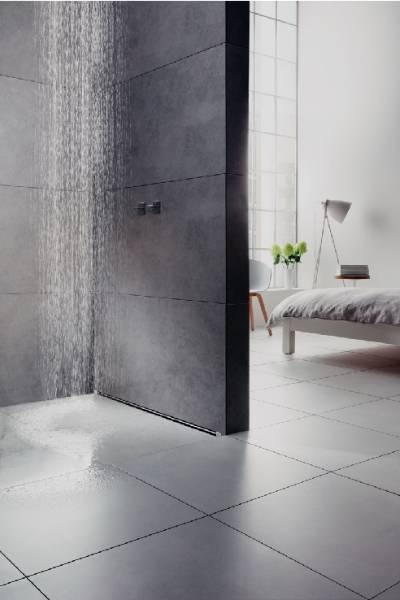

Advantix Vario Wall Channel
