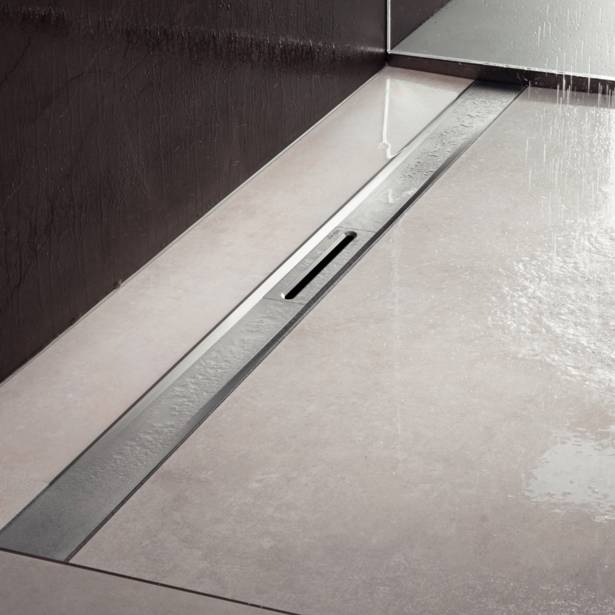

Advantix Cleviva Shower Channel

Verified by manufacturer 6 months ago

VIEGA LTD

Stainless steel shower channel.

Jump to:
+44 (0)204 582 6495 Website

Application

Suitable for residential applications.

Description

Advantix Cleviva stainless steel shower drainage channel.


Features and benefits:

  • Surface-guided single-point drainage for maximum hygiene
  • Click-fastening factory-mounted sealing collar assures maximum safety.
  • Drain profile provides optimum water flow thanks to inward incline (1–2%).
  • Supreme design flexibility based on interchangeable inlays and shower profile.
  • Custom positioning possible, suitable for wall mounting or for centred or off-centre installation.
  • Adjustment allows shower profiles to be shortened to optimum length.
  • Standard-compliant in accordance with DIN 18534 and DIN EN 1253

General information

Color

Copper

Black

Gold

Silver

Other

Finish

Brushed

Material

Stainless steel

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Six year

Uniclass

Pr_65_52_25_75 Sanitary appliance trapsPrimary

CAWS

N13/375 Shower units

N13/40 Shower units

R11/310 Floor channels

R11/5 Floor drains

Product range

Drainage Technology

Specification data - Sanitary appliance traps

Trap

Shower trap.

Material

1.4301 (304) grade stainless steel.

Colour

Brushed stainless steel.

Anthracite.

Gold.

Copper-gold.

Champagne.

Size

DN 40.

Depth of water seal (minimum)

25 mm.

Guidance for specification option:

Refurbishment and vertical unit.

50 mm.

Guidance for specification option:

Standard unit.

Base unit

4981.80 Standard drain unit.

Guidance for specification option:

Construction height: 95–155 mm. Water seal level: 50 mm. Drainage capacity: 0.5–0.7 L/s.

4981.81 Refurbishment drain unit.

Guidance for specification option:

Construction height: from 70 mm. Water seal level: 25 mm. Drainage capacity: 0.4–0.55 L/s.

4981.90 Vertical drain unit.

Guidance for specification option:

Water seal level: from 25 mm without odour trap. Drainage capacity: 0.5–0.6 L/s.

Profile

4981.30 - 800 mm length.

4981.31 - 1000 mm length.

4981.32 - 1200 mm length.

Grate

4981.50 Inlay Visign C1.

Guidance for specification option:

One inlet opening.

4981.60 Inlay Visign C2.

Guidance for specification option:

Two inlet openings.

Manufacturer guidance

(Inlay)

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany
