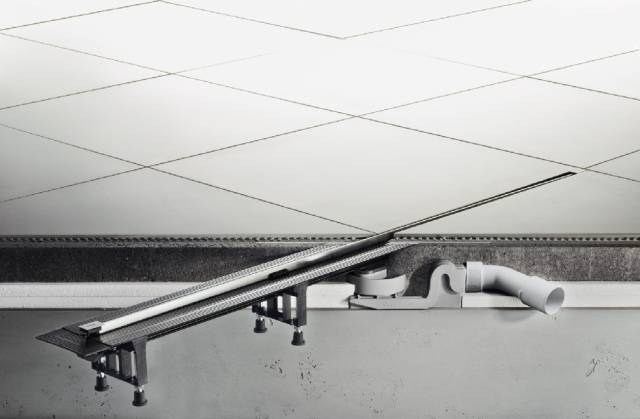

Advantix Vario Shower Channel
Verified by manufacturer 22 days ago
Bespoke shower drainage channel.
Description
Advantix Vario bespoke shower drainage channel.
Features and benefits:
- Flexible and easy to install.
- Can be fitted in straight design, L-shape or U-shape.
- Simple maintenance and cleaning, due to smooth-walled base unit.
- High degree of reliability and hygiene.
- Individual length of 300 to 2800 mm (can be sawn by hand).
- Height from 95 to 165 mm.
- Drainage capacity between 0.4 and 0.8 L/s or a maximum of 2.4 L/s.
- Bonded sealing with liquid foil.
- Minimal design with grate and cover panel in four colours.
- Uses environmentally compatible polypropylene (pp) and high-grade 1.4301 (304) grade stainless steel.
- Base material thickness: 1.5 mm.
- Grate material thickness: 2 mm.
General information
Color | White Black Silver |
Finish | Matt Polished |
Material | Stainless steel Polypropylene |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Six year |
Uniclass | |
CAWS | N13/375 Shower units N13/40 Shower units R11/310 Floor channels R11/5 Floor drains |
Product range |
Specification data - Sanitary appliance traps
Classification data | |
Material | Polypropylene (PP) and 1.4301 (304) grade stainless steel. |
Size | DN 40. Manufacturer guidanceIndividual length of 300 to 2800 mm; insert requirement. |
Depth of water seal (minimum) | 50 mm. |
Product Reference | Advantix Vario |
Base unit | 4965.10. 4966.20 renovation model. |
Grate | 4965.30 Advantix Vario standing grate, stainless steel, matt. Guidance for specification option: 300–1200 mm. 4965.31 Advantix Vario standing grate, stainless steel, polished. Guidance for specification option: 300–1200 mm. 4965.32 Advantix Vario standing grate, black. Guidance for specification option: 300–1200 mm. 4965.33 Advantix Vario standing grate, white. Guidance for specification option: 300–1200 mm. 4965.60 Advantix Vario standing grate, stainless steel, matt. Guidance for specification option: For shower channel, 200 mm. 4965.61 Advantix Vario standing grate, stainless steel, polished. Guidance for specification option: For shower channel, 200 mm. 4965.62 Advantix Vario standing grate, black. Guidance for specification option: For shower channel, 200 mm. 4965.63 Advantix Vario standing grate, white. Guidance for specification option: For shower channel, 200 mm. |
Accessories | 4941.70 Advantix Vario shower channel accessory set. Guidance for specification option: For natural stone covering up to 33 mm thick. 4965.12 Advantix Vario connection piece. 4965.14 Advantix Vario connection corner piece, 90°. 4965.16 Advantix Vario end closing piece. 4965.50 Advantix Vario accessory set, black. Guidance for specification option: For end closing and connection piece. 4965.50 Advantix Vario accessory set, stainless steel, matt. Guidance for specification option: For end closing and connection piece. 4965.50 Advantix Vario accessory set, stainless steel, polished. Guidance for specification option: For end closing and connection piece. 4965.50 Advantix Vario accessory set, white. Guidance for specification option: For end closing and connection piece. 4965.51 Advantix Vario accessory set, black. Guidance for specification option: For end connection piece 90°. 4965.51 Advantix Vario accessory set, stainless steel, matt. Guidance for specification option: For end connection piece 90°. 4965.51 Advantix Vario accessory set, stainless steel, polished. Guidance for specification option: For end connection piece 90°. 4965.51 Advantix Vario accessory set, white. Guidance for specification option: For end connection piece 90°. 4965.91 Cleaning adaptor. 4966.14 Advantix Vario renovation connection corner piece, 90°. |
Drainage capacity | 0.4–0.8 L/s. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
