Acoustic Barrier Mat

Verified by manufacturer 4 months ago

Acoustic Barrier Mat - 1013

JCW Acoustic Supplies Limited Variant:

Acoustic barrier matting system for walls, floors and ceilings.

Jump to:
+44 7833 433335 Website

Application

Suitable for use as noise curtain or in combination with other soundproofing materials, such as walls, floors and ceilings which combats low frequency airborne noise.

Description

Multi-purpose, dense acoustic barrier matting system for walls, floors and ceilings which combats low frequency airborne noise.


Features and benefits:

  • Airborne improvement with minimal height loss when two, 2 mm barrier matting layers are laid on the floor in opposite directions.
  • Noticeable gain when bonding barrier matting between two layers of plasterboard on walls and ceilings or pinning on to stud work or joists prior to plasterboard fixing.
  • Ideal as a separating curtain wall between offices above walls.
  • Suitable for dampening steelwork, ducting and machinery casings.
  • Bitumen-free and totally recyclable.
  • Easy to install.

General information

Color

Black

Finish

Smooth

Material

Rubber

Shape

Rectangle

Length

5000 mm

4000 mm

2000 mm

Width

1200 mm

Height

1.2 mm

2 mm

3 mm

4 mm

Uniclass

Pr_25_57_06_71 Resilient layer insulationPrimary

CAWS

K10/125 Metal stud partition system

K10/155 Wall lining system (metal studs)

K10/30 Metal stud

K21/10 Wood laminate flooring

K21/111 Wood floating floor

K21/115 Wood laminate flooring

K21/145 Composite laminate flooring

K21/146 Laminate flooring

K21/20 Composite laminated flooring

M50/130 Carpet tiling

M50/15 Carpet tiling

M50/150 Sheeting

M50/155 PVC sheet flooring in special wet areas

M50/170 Carpeting

M50/20 Sheeting

M50/25 Carpeting

Product range

Acoustic Ancillaries

Specification data - Resilient layer insulation

Thickness

1.2 mm.

Product Reference

Acoustic Barrier Mat - 1013

Acoustic Barrier Mat - 1014

Acoustic Barrier Mat - 1015

Acoustic Barrier Mat - 1017

Roll weight

18 kg.

Guidance for specification option:

3 kg/m².

Roll size

5 m x 1200 mm.

Sound reduction

16 dB.

Sustainability data

Country of product manufacture

United Kingdom

Recyclability

100

Literature

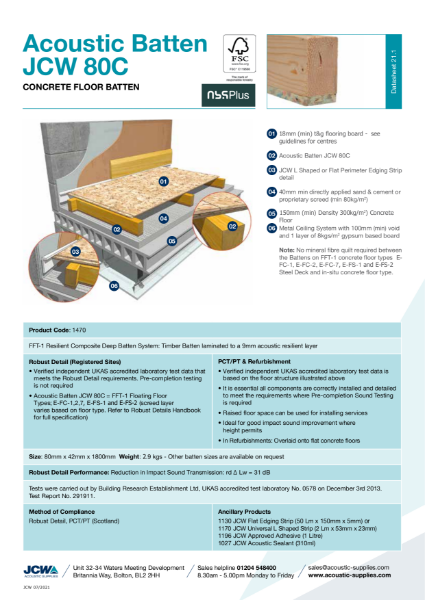

Acoustic Flooring Batten 80C
