Application

Suitable for all final finishes on timber floors.

Description

A premium resilient overlay matting containing three acoustic layers that combine to massively reduce both impact and airborne noise.


Features and benefits:

  • 15 mm thick acoustic barrier mat with a resilient chip foam core.
  • It is manufactured using an acoustic foam resilient layer sandwiched between two layers of weight enhanced acoustic barrier mat. The acoustic foam does not harden or crumble, unlike the Class O foam normally found in these applications.
  • Ideal upgrade product for Impact and Airborne noise problems in domestic properties where heights are restricted and access to ceiling in property below may not be an option.
  • Easy to cut, trim and shape in easy to handle 600 x 1200 mm sheets.
  • Suitable for conversion projects.

General information

Color

Black

Finish

Smooth

Material

Rubber

Foam

Shape

Rectangle

Length

1200 mm

Width

600 mm

Height

15 mm

Uniclass

Pr_25_57_06_71 Resilient layer insulationPrimary

CAWS

K21/10 Wood laminate flooring

K21/111 Wood floating floor

K21/115 Wood laminate flooring

K21/145 Composite laminate flooring

K21/146 Laminate flooring

K21/20 Composite laminated flooring

M50/130 Carpet tiling

M50/15 Carpet tiling

M50/150 Sheeting

M50/155 PVC sheet flooring in special wet areas

M50/170 Carpeting

M50/20 Sheeting

M50/25 Carpeting

Product range

Acoustic Mats & Underlays

Specification data - Resilient layer insulation

Material

Foam.

Guidance for specification option:

Resilient chip foam core sandwiched between 2 layers of High Density Weight Enhanced Rubber Barrier Mat.


Thickness

15 mm.

Sound insulation rating

Guidance for specification option:

Impact sound reduction:

39 dB Lnt,w.

Airborne sound improvement:

51 dB Rw + Ctr.

Product Reference

Acoustic Impactalay Plus - 1155

Guidance for specification option:

12 mm thickness.

Size (w x l)

600 x 1200 mm.

Weight

15.27 kg/m².

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Literature

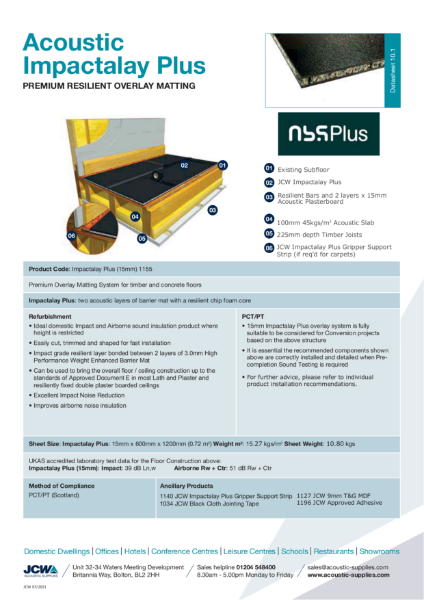

Impactalay Plus

Impactalay Plus
