Application

For timber and concrete floors in new builds or conversions to commercial properties and residential apartments.

Description

12 mm thick acoustic barrier mat with a resilient chip foam base.


Features and benefits:

  • The acoustic foam does not harden or crumble, unlike the Class O foam normally found in these applications.
  • Slim product with excellent impact and airborne noise reduction.
  • Works well on concrete floors and can be used on timber floors where impact noise is an issue.
  • Minimal impact on available floor to ceiling height - 12 mm thick.
  • Ideal domestic Impact and Airborne sound insulating product where heights are restricted and access to ceiling below may not be available.
  • Meets and easily exceeds acoustic requirements of Building Regulations Approved Document Part E (E&W) and Section 5 (Scotland).
  • Supplied in easy to handle, lay and install slab form. Easy to cut and shape.

General information

Color

Black

Finish

Smooth

Material

Foam

Rubber

Shape

Rectangle

Length

1200 mm

Width

1000 mm

Height

12 mm

Uniclass

Pr_25_57_06_71 Resilient layer insulationPrimary

CAWS

K21/10 Wood laminate flooring

K21/111 Wood floating floor

K21/115 Wood laminate flooring

K21/145 Composite laminate flooring

K21/146 Laminate flooring

K21/20 Composite laminated flooring

M50/130 Carpet tiling

M50/15 Carpet tiling

M50/150 Sheeting

M50/155 PVC sheet flooring in special wet areas

M50/170 Carpeting

M50/20 Sheeting

M50/25 Carpeting

Product range

Acoustic Mats & Underlays

Specification data - Resilient layer insulation

Material

Resilient Chip Foam Base.

Guidance for specification option:

Bonded to a high performance weight enhanced acoustic barrier.

Thickness

12 mm.

Sound insulation rating

Guidance for specification option:

Impact sound reduction:

38 dB Lnt,w.

Airborne sound improvement:

49 dB Rw + Ctr.

Product Reference

Acoustic Impactalay - 1154

Weight

9.6 kg.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

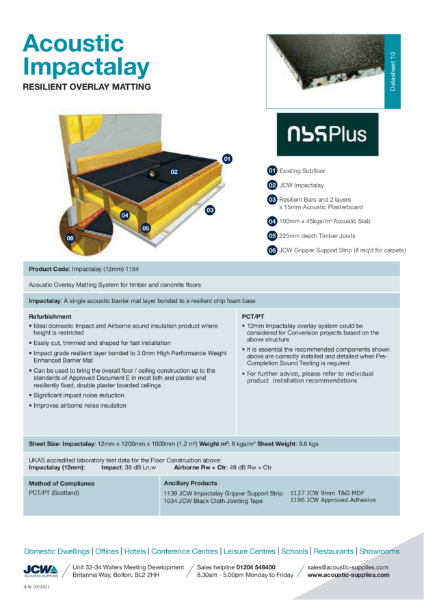

Literature

Impactalay

Impactalay
