Application

For timber and concrete floors.

Description

10 mm thick acoustic overlay matting for reducing both impact and airborne noise.


Features and benefits:

  • Ideal solution for sound insulating floors in domestic situations.
  • Can be used to bring the overall floor/ ceiling construction up to the standards of Building Regulations (E&W) Approved Document E in most lath and plaster and resiliently fixed, double plaster boarded ceilings.
  • Easily cut, trimmed and shaped for fast installation.
  • Reduces impact noise.
  • Improves airborne noise insulation.

General information

Color

Black

Finish

Smooth

Material

Foam

Rubber

Shape

Rectangle

Length

1200 mm

Width

1000 mm

Height

10 mm

Uniclass

Pr_25_57_06_71 Resilient layer insulationPrimary

CAWS

K21/10 Wood laminate flooring

K21/111 Wood floating floor

K21/115 Wood laminate flooring

K21/145 Composite laminate flooring

K21/146 Laminate flooring

K21/20 Composite laminated flooring

M50/130 Carpet tiling

M50/15 Carpet tiling

M50/150 Sheeting

M50/155 PVC sheet flooring in special wet areas

M50/170 Carpeting

M50/20 Sheeting

M50/25 Carpeting

Product range

Acoustic Mats & Underlays

Specification data - Resilient layer insulation

Material

Resilient chip foam core.

Guidance for specification option:

Bonded to high density weight enhanced battier mat.

Thickness

10 mm.

Product Reference

Acoustic Impactalay 10

Weight

2.36 kg.

Guidance for specification option:

per sheet.

Size (w x l)

10 x 1200 x 1000 mm.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Literature

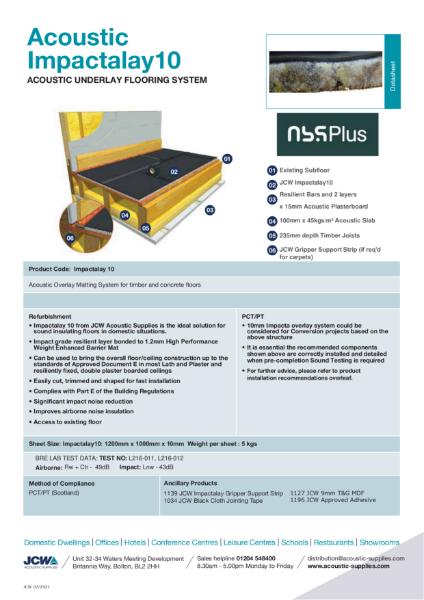

Impactalay10 Acoustic Underlay

Impactalay10 Acoustic Underlay
