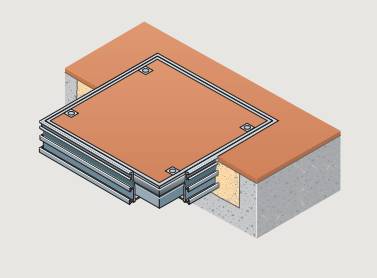

7500 Series (Stainless Steel) Single Cover
Verified by manufacturer 1 month ago
Medium duty single floor access cover for cars and light delivery vehicles up to 5 tonne pneumatic tyre wheel load.
Application
Suitable for interior and exterior hard floors.
Description
Stainless steel medium duty floor access cover for up to 5000 kg pneumatic tyre wheel loads (cars and light delivery vehicles) on hard floor surfaces.
Features and benefits:
- Covers can be fitted quickly and unobtrusively into all types of hard floor finish: ceramic tiles, marble, terrazzo, resin or parquet.
- Cover sections are tapered for easy removal and are precision-made to avoid distortion.
- Double seals available.
- Lifting blocks are anchored to the inner frame. Stainless steel securing bolts are stiletto heel proof.
- Provides easy access to under floor services using lifting keys.
- Quick and easy to install ensuring minimum disruption.
- Manufactured in accordance with BS EN ISO 9001.
- Show edge manufactured from stainless steel with a steel baseplate and reinforcement.
- Weight (when filled): 155 kg/m².
- Overall frame size: Clear opening size plus 130 mm.
General information
Color | Silver |
Finish | Galvanized |
Material | Stainless steel |
Shape | Rectangle |
Length | 1030 mm |
Width | 1030 mm |
Height | 75 mm |
Uniclass | |
CAWS | P30/301 Access covers, manhole tops and frames P31/370 Access covers/ gratings R12/471 Access covers and frames |
Product range |
Specification data - Access covers, gratings and frames
Standards | To BS EN ISO 9001. |
Configuration | Single cover. |
Finish | Galvanized steel. |
Clear opening (minimum) | 100 mm. |
Load class (minimum) | Up to 5 tonne pneumatic tyre wheel load. |
Frame or support | Stainless steel. |
Integral accessories | None.Lifting points.Guidance for specification option: Barrel only or inset options. Sets of combined lifting/ securing keys.Cover skate lifting device.Recessed support beam pockets.Surface mounted support beam pockets. |
Cover and frame | Stainless steel, grade 1.4301 (304). Guidance for specification option: Standard. Stainless steel, grade 1.4401 (316). |
Base plate | Galvanized steel. Guidance for specification option: Standard. Stainless steel, grade 1.4301 (304). Stainless steel, grade 1.4401 (316). |
FireRating | None. Two hours. Guidance for specification option: To BS 476-20. |
Depth | 75 mm. |
Sustainability data
Material | Stainless steel |
Literature
7500 Series Medium-Duty Stainless Steel Floor Access Cover - Technical Data Sheet
7500 Series Medium-Duty Floor Access Cover
