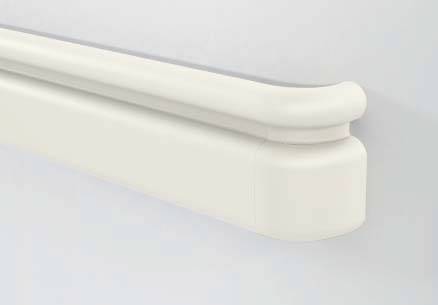

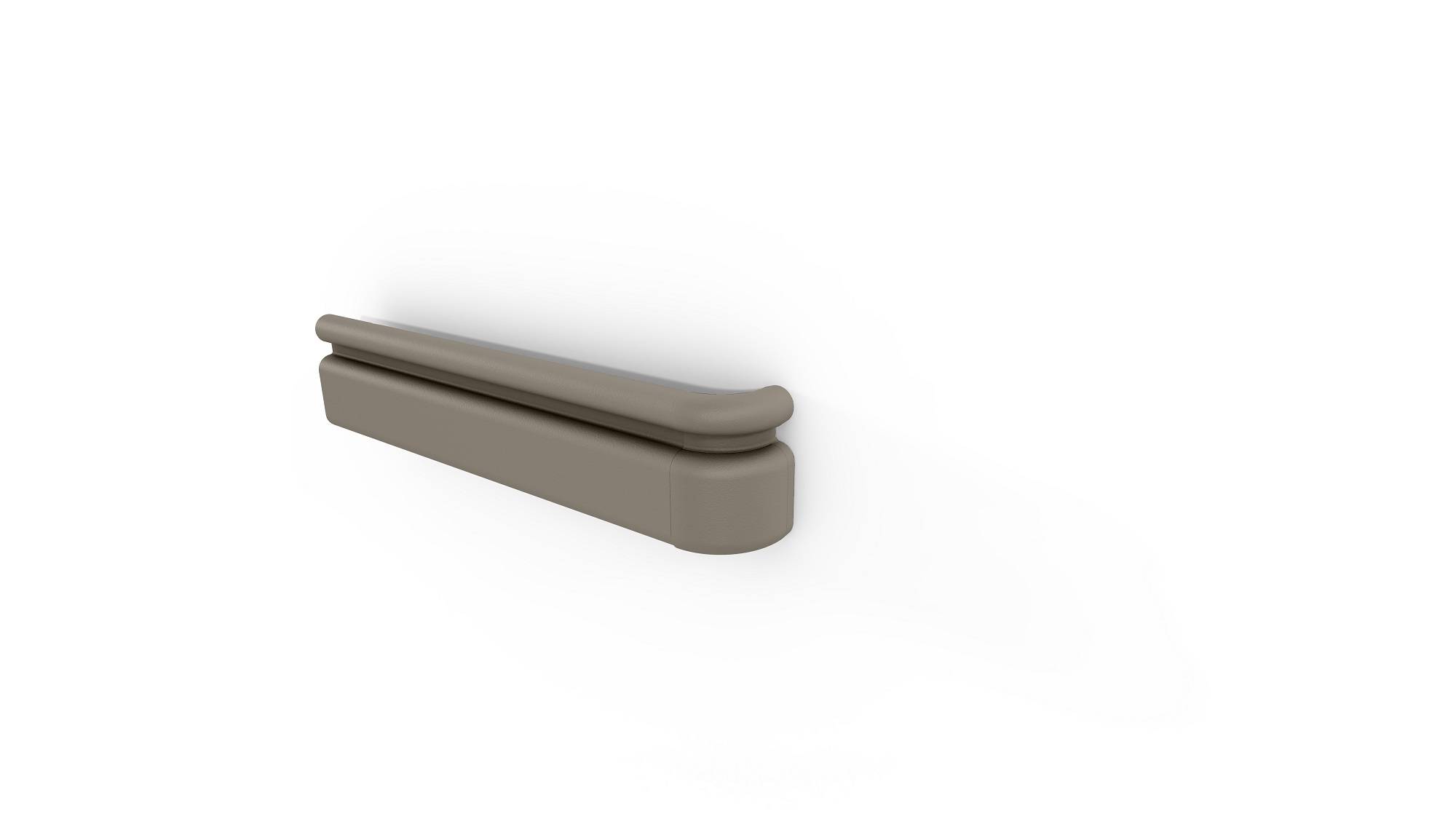

3110 Hand Rail

Verified by manufacturer 5 months ago

Inpro

The 3110 handrail/combi-rail provides the support of a traditional round handrail paired with the added benefits of a wall guard or crash guard.

Jump to:
07494249485 Website

Application

Suitable for use in all areas which require support for residents, patients and visitors.

Description

The 3110 handrail/ combi-rail provides the support of a traditional handrail, paired with the added benefits of a wall guard or crash guard. This system not only supports the users of a building but also the facility team - saving from time-consuming and costly repairs.


Features and benefits:

  • Manufactured from safe, durable and recyclable PVC-U.
  • Designed to safeguard people from slips and falls.
  • Protects interior walls from everyday wear and tear, and longer lasting damage.
  • Provides better gripping ability with the ergonomically designed thumb groove.
  • Delivers impact protection with the internal vinyl bumper on the lower portion of the handrail.
  • Minimal seams due to standard 3.66 m handrail lengths.
  • Continuous mounting ligature-resistant bracket is available to address safety issues for patients in mental health or similar areas by eliminating the gap between the wall and handrail.
  • Easy to install and maintain.
  • Mounted onto a 2 mm thick aluminium retainer.
  • Available in a variety of colours.
  • Cost effective.
  • Contains no phthalates, halogenated fire retardants or bisphenol-a (BPA).
  • Low fossil fuel consumption.


Approvals/ certifications:


  • GREENGUARD™ Indoor Air Quality Children and Schools certified.
  • May qualify for LEED™ and Green Globes™ credits – consult manufacturer for details.
  • Fungal and bacterial resistant (to ASTM G21 and G22).
  • Good impact resistance (to ASTM F-476).
  • Designed to meet the requirements of BS 8300: 2009 and A1: 2010.
  • Meets the Americans with Disabilities Act (ADA) and American National Standards Institute (ANSI) criteria.


Standard components (dependent on configuration):



  • Aluminium retainer: Provides structural stability and allows extended lengths of over 3.66 m.
  • Mounting brackets: Keeps hands a safe distance from the wall.
  • Cover: Available in a variety of colours to coordinate with other interior finishes.
  • Inside/ outside corners: Provides a smooth transition for corner applications.
  • Returns: Gives the handrail installation a professional look.
  • Reveal: Decorative element, standard with every woodland handrail order.

Available with a ligature-resistant continuous mounting bracket, which eliminates the gap between drywall and handrail by providing a wood fill along the entire length. (Please note that while these products are designed for behavioural health applications, they do not guarantee patient safety).

General information

Shape

Rectangle

Color

-

Manufacturer guidance

Available in a wide range of colours.

Finish

Textured

Guidance for specification option:

Peblette handrail.

Satin

Guidance for specification option:

Satin stainless steel bracket.

Material

PVC-U

Guidance for specification option:

Handrail.

Aluminium

Guidance for specification option:

Retainer.

Vinyl

Guidance for specification option:

Cover.

Warranty description

Guidance for specification option:

Standard Limited lifetime warranty against material and manufacturing defects.

Size

32 x 57 mm

Guidance for specification option:

Grip size.

Distance from wall: 95 mm.

Length: 3.66 m.

Uniclass

Ss_25_60_05_35 Handrail systemsPrimary

CAWS

L30/570 Purpose-made handrails

L30/580 Proprietary handrails

L30/65 Purpose-made handrails

L30/70 Proprietary handrails

Product range

Hand Rails

Specification data - Handrail systems

Handrails

PVC-U handrails.

Fixing to parent structure

Stainless steel hexagon head screws.

Samples required

Verification samples of handrail.

Guidance for specification option:

203 mm long, in full size profiles of each type and colour indicated.

Length

3.66 m.

Accessories/ Other requirements

Not required.

50 mm standoffs.

Inside corner 135° (3115135).

Inside corner 90° (3115).

Left return (3112).

Show more

Cover

Scratch and stain resistant rigid vinyl.

Guidance for specification option:

2 mm thickness.

Finish

Aloe 1057.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 59.33.

Beeswax 0249.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 56.9.

Black 0152.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 4.5.

Buoyant Blue 0132.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 25.5.

Burlap 0252.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 43.4.

Show more

Retainer

2 mm thick aluminium.

Sustainability data

Country of material origin

Italy

Recyclability

-

Manufacturer guidance

Recyclable.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

40 %

Guidance for specification option:

Up to 40% recycled content in aluminium retainers.

BIM objects

Platform Compatible Version
Revit

Revit 2017
