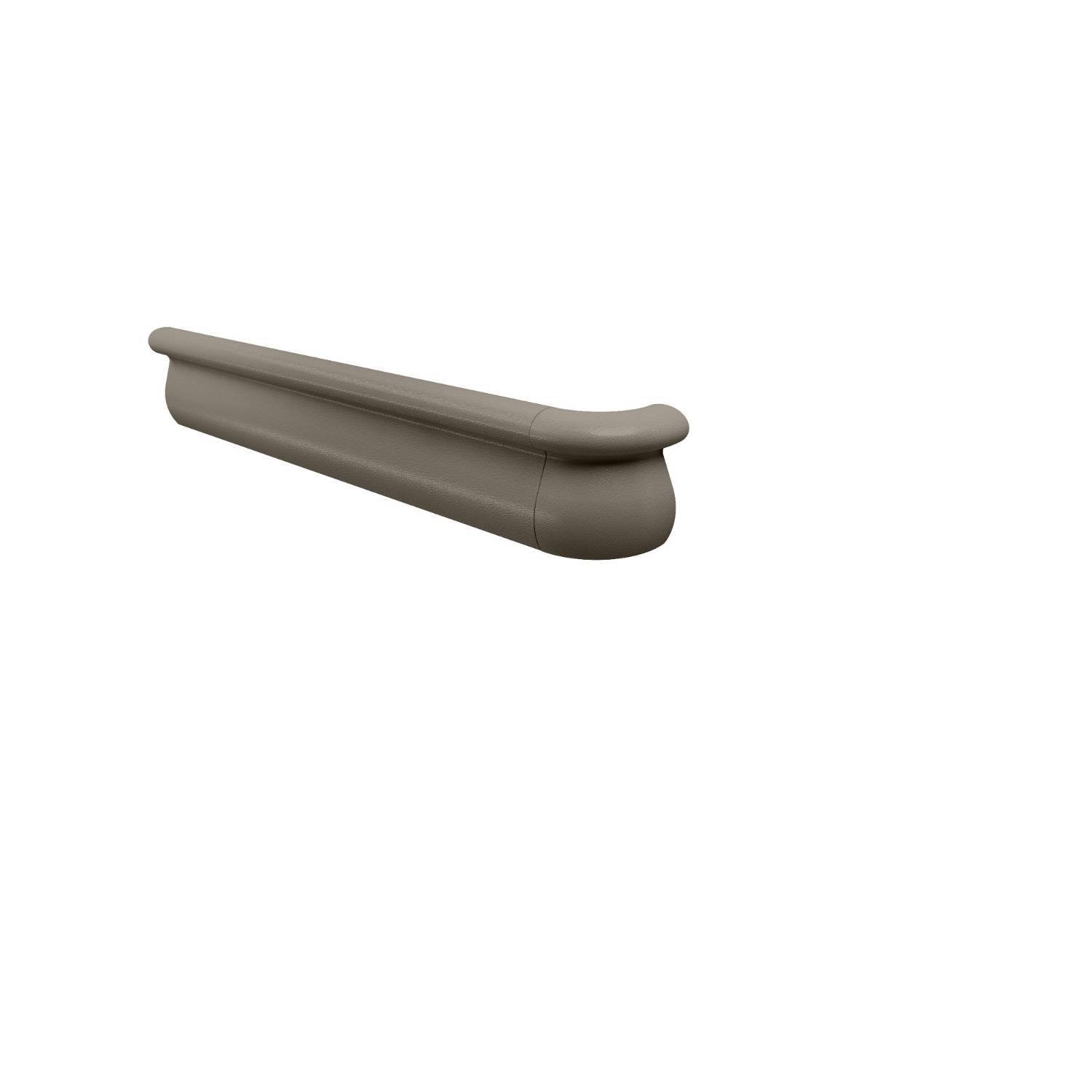

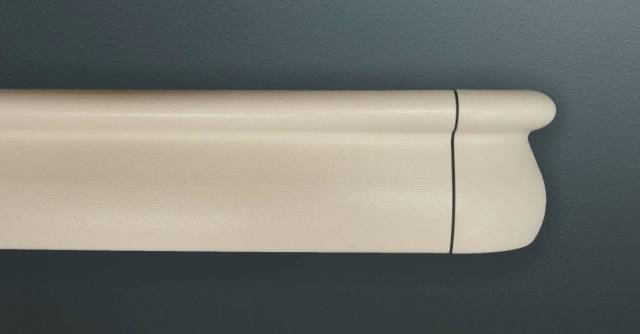

1000 Hand Rail
Verified by manufacturer 4 months ago
The 1000 handrail’s innovative style fills the size gap between small handrails that offer no wall protection and large handrails that provide more protection than you may need.
Application
Suitable for use in all areas which require support for residents, patients and visitors.
Description
The 1000 handrail is a mid-range protection system. A European modelled design adds sophistication to the design of any space, provides support for users and protects the walls beneath.
Features and benefits:
- Manufactured from safe, durable and recyclable PVC-U.
- Designed to safeguard people from slips and falls.
- Protects interior walls from everyday wear and tear, and longer lasting damage.
- European style oval profile with an innovative design which helps to fill the gap between small handrails (which offer no wall protection) and large handrails (which provide additional protection).
- Minimal seams due to standard 3.66 m handrail lengths.
- Contains SureContact® antimicrobial technology, which inhibits the growth of mould and mildew.
- Continuous mounting ligature-resistant bracket is available to address safety issues for patients in mental health or similar areas by eliminating the gap between the wall and handrail.
- Easy to install and maintain.
- Mounted onto a 2 mm thick aluminium retainer.
- Available in a variety of colours.
- Cost-effective.
- Contains no phthalates, halogenated fire retardants or bisphenol-a (BPA).
- Low fossil fuel consumption.
Approvals/ certifications:
- GREENGUARD™ Indoor Air Quality Children and Schools certified.
- May qualify for LEED™ and Green Globes™ credits – consult manufacturer for details.
- Fungal and bacterial resistant (to ASTM G21 and G22).
- Good impact resistance (to ASTM F-476).
- Designed to meet the requirements of BS 8300: 2009 and A1: 2010.
- Meets the Americans with Disabilities Act (ADA) and the American National Standards Institute (ANSI) criteria.
Standard components (dependent on configuration):
- Aluminium retainer: Provides structural stability and allows extended lengths of over 3.66 m.
- Mounting brackets: Keeps hands a safe distance from the wall.
- Cover: Available in a variety of colours to coordinate with other interior finishes.
- Inside/ outside corners: Provides a smooth transition for corner applications.
- Returns: Gives the handrail installation a professional look.
- Reveal: Decorative element, standard with every Woodland handrail order.
General information
Shape | Oval Guidance for specification option: Gripping surface. |
Color | Manufacturer guidanceAvailable in a range of colours, consult manufacturer. |
Material | PVC-U Guidance for specification option: Handrail. Aluminium Guidance for specification option: Retainer. |
Warranty description | Lifetime Guidance for specification option: Standard Limited lifetime warranty against material and manufacturing defects. |
Size | 110 x 41 mm Guidance for specification option: Grip size. Distance from wall: 75 mm. Length: 3.66 m. |
Uniclass | |
CAWS | L30/570 Purpose-made handrails L30/580 Proprietary handrails L30/65 Purpose-made handrails L30/70 Proprietary handrails |
Product range |
Specification data - Handrail systems
Handrails | PVC-U handrails. |
Fixing to parent structure | Stainless steel hexagon head screws. |
Samples required | Verification samples of handrail.Guidance for specification option: 203 mm long, in full size profiles of each type and colour indicated. |
Colour/ Finish | Aloe 1057. Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 59.33. Beeswax 0249. Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 56.9. Black 0152. Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 4.5. Buoyant Blue 0132. Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 25.5. Burlap 0252. Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 43.4. |
Accessories/ Other requirements | Not required. 50 mm standoffs. Continuous mounting bracket (CBRKLF). Handrail mounting bracket (1001). Inside corner 135° (1005135). |
Samples required | Verification samples of handrail. Guidance for specification option: 203 mm long, in full size profiles of each type and colour indicated. |
Cover | Scratch and stain resistant rigid vinyl. Guidance for specification option: 2 mm in thickness. |
Sustainability data
Country of material origin | Italy |
Recyclability | Manufacturer guidanceRecyclable. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % Guidance for specification option: Up to 40% recycled content in aluminium retainers. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 1 |
